Rollover Flexi F2814 HA Flatbed Applicator (9' 5" x 4' 7") w/ Height A

Name: Rollover Flexi F2814 HA Flatbed Applicator (9' 5" x 4' 7") w/ Height Adjustable Legs
Brand: Rollover
SKU: 102814HA

$20,650.00 $19,550.00 Save 5%

Price Match Guarantee*

Quantity

Need Shopping Advice?
Call - (800)944-4573

Item# 102814HA

Ergonomic, height-adjustable work surface
Working area of roller is 8' 5" x 4' 7"
Max thickness of sign substrates is 3" thick
LED-illuminated glass bed work area measures 9' 5" x 4' 7"

Product Description

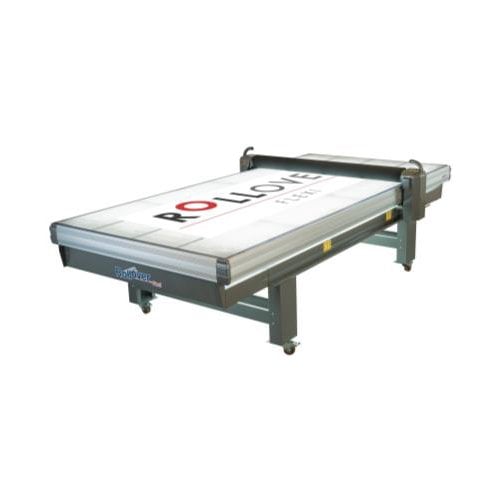

The RollOver F2814 HA Flatbed Applicator Table is designed to make applying graphics, mounting prints, laminating, and finishing large-format materials faster, easier, and more accurate. Featuring a spacious illuminated glass work surface, an ergonomic roller system, and electrically height-adjustable legs, this applicator table helps operators achieve bubble-free, wrinkle-free results while reducing fatigue during long production runs.

Built for busy print shops and sign makers, the F2814 HA offers full access to the work surface from every side, making it easy to position oversized graphics, rigid boards, and specialty materials. The open design provides a clear view of the roller for precise alignment, while the LED-lit glass bed improves visibility for detailed applications.

The electrically adjustable working height allows each operator to set the table at a comfortable position, improving ergonomics and productivity. Combined with smooth one-hand roller operation and a larger roller gap for thicker materials, the RollOver F2814 HA is an excellent solution for high-volume graphic production.

Ideal For:

Wide-format print shops

Sign and graphics manufacturers

Vehicle wrap installers

Display and exhibit production

Mounting and laminating large-format graphics

Working with rigid boards and thicker substrates

Product Details

Inward facing & protected activation switch.

Ergonomic handles for roller operation.

Rounded housing - no sharp edges.

Free view to roller.

Unobstructed access to the roller.

Holder for media rolls in both ends of the table.

Reversible extra brackets for application tape.

Self-healing cutting mat.

Illuminated glass bed.

Casters.

Side shelves for storing .

Specifications

Max Substrate Thickness: 78mm / 3.07"

Glass Bed Working Area: 286 x 140cm / 9' 5" x 4' 7"

Working Area of Roller:256 x 140cm / 8' 5'' x 4' 7''

Roller Diameter: 13cm / 5.1"

Illumination - LED: 127 watts

Height Adjustable Legs: 35" - 47"

Power Supply: 120V/60Hz

Weight: 860 lbs.

Dimensions: 9' 7" L x 5' 10" W x 3' H

Shipping Weight: 1480 lbs.

Shipping Dimensions: 10' 2" L x 7' 5" W x 3' 11" H

Part Number: 102814HA

Rollover Accessories

ROLLOVER STORAGE TROLLEY
Item no: 10936

Integrated storage trolley for media rolls, panels and tools underneath the table.
Fitt ed with casters to provide easy access.

ROLLOVER LONG REACH CUTTER
Item no: 10910

Tool to cut media acros the table without having to lean over the table.
Spare blades 10pcs/pack available - item no: 10911.

ROLLOVER CONTACT CLEANER
Item no: 10918

Cleans any fl at surface.
Ergonomic design of the handle.
Extendable shaft included.

ROLLOVER ROLL CRADLE
Item no. 10130

25 cm / 9' 10" – set of 2
Designed for carrying and feeding media rolls
Flat base for stable positioning on the tabletop

ROLLOVER CORE ADAPTORS
Item no: 10920

Set of 2 pieces to att ach media rolls to the spindle.
Fits standard inside diameter of 75mm/2.9in.

Video

Rollover Video

Transcript :

Rollover flatbed applicators, designed and engineered in Norway. Rollover is built to last with a minimum maintenance and a high efficiency. Let's explore the machine and the accessories.
Rollover arrives in one big crate and fully assembled from factory. No leveling required at any time. Underneath the table, there's no loose hanging air tubes.
Everything is hidden underneath the gantry. Rollover is a one-piece float glass, which provides you with the best results for demanding boards. We recommend you to choose height-adjustable legs, since it's very convenient to have an assigned chair for anyone working the table.
Focus on the ergonomics is very important. It's rounded corners on the gantry and the handles. Also a one-button operation, same button for up and down.
You have free access to the entire glass bed. No bridges, no towers, just a clear, efficient workspace. Included with the table, you always receive two media holders, four brackets that can be placed at the end of the table and in the middle, and a self-healing cutting mat.
Optional accessories for this table is a long-reach cutter knife. Comes with an extended shaft for long reach. Contact cleaner.
Long reach shaft, 140 centimeters, 55 inches. It's used to clean any kind of dust on the glass bed or on the media. It can be cleaned by using any kind of scraps that you have.
A sticky piece of, can be transfer tape or a vinyl, that you just stick it onto. You roll it across it and it's all good to go. Roll cradle.
Come in a set of two. They are kept at the end of the table to store the vinyl. Vinyl also can be dragged from there directly.
Corductors. Comes in a set of two. They help keeping the media on the media roller.
Rollover provides you with a five-year factory warranty. Being a modular construction, makes it easy to change any spare parts at any time. The rollover is more than just a flatbed applicator.
It is also a workstation, which is very convenient to have in any sign shop. Rollover is engineered for precision and designed for efficiency.

Resources

ROLLOVER STORAGE TROLLEY Item no: 10936 Integrated storage trolley for media rolls, panels and tools underneath the table. Fitt ed with casters to provide easy access.	ROLLOVER LONG REACH CUTTER Item no: 10910 Tool to cut media acros the table without having to lean over the table. Spare blades 10pcs/pack available - item no: 10911.	ROLLOVER CONTACT CLEANER Item no: 10918 Cleans any fl at surface. Ergonomic design of the handle. Extendable shaft included.	ROLLOVER ROLL CRADLE Item no. 10130 25 cm / 9' 10" – set of 2 Designed for carrying and feeding media rolls Flat base for stable positioning on the tabletop
ROLLOVER CORE ADAPTORS Item no: 10920 Set of 2 pieces to att ach media rolls to the spindle. Fits standard inside diameter of 75mm/2.9in.
