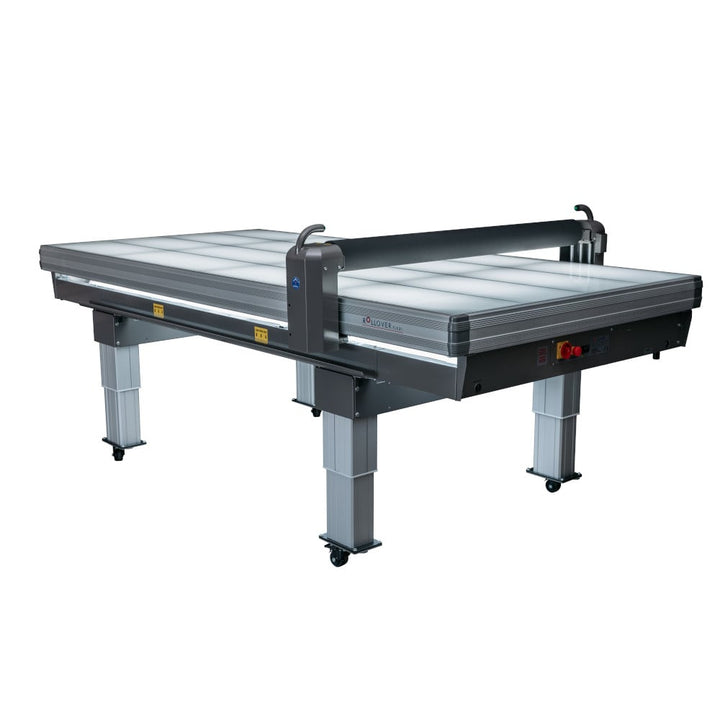

Rollover Flexi F3315 HA Flatbed Applicator (11' X 5' 1") with Height A

Name: Rollover Flexi F3315 HA Flatbed Applicator (11' X 5' 1") with Height Adjustable Legs
Brand: Rollover
SKU: 103315HA

$23,910.00 $22,560.00 Save 6%

Quantity

Need Shopping Advice?
Call - (800)944-4573

Item# 103315HA

Ergonomic, height-adjustable work surface
LED-illuminated glass bed work area measures 9' 5" x 4' 7"
Working area of roller is 8' 5" x 4' 7"
Max Substrate Thickness: 3.14"

Product Description

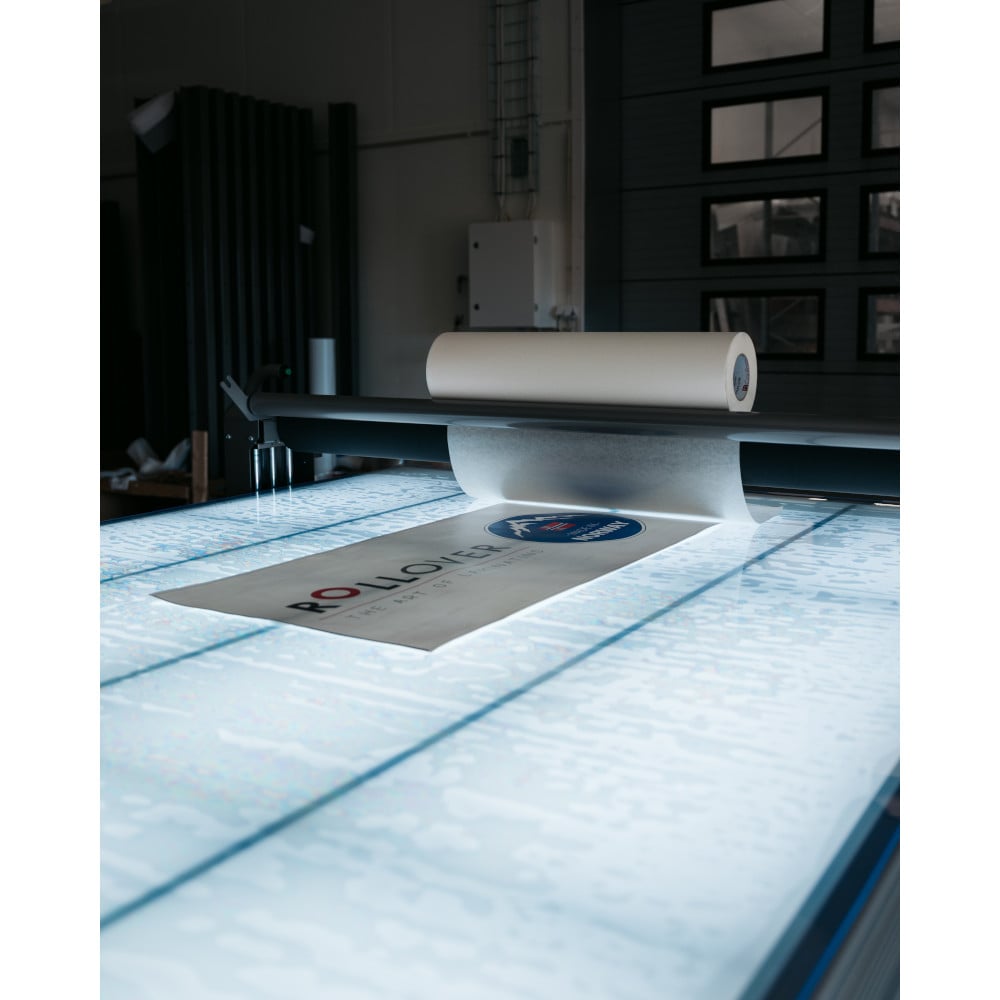

The RollOver Flexi F3315 HA Flatbed Applicator makes mounting prints, applying vinyl, and laminating large-format graphics faster, easier, and more accurate. Designed for sign shops, print providers, and graphics professionals, it helps a single operator achieve smooth, bubble-free results on both flexible media and rigid boards.

Capable of handling materials up to 3.14" thick, the F3315 HA is ideal for mounting digital prints and applying self-adhesive graphics to substrates such as acrylic, aluminum composite panels, PVC, foam board, and more. Its open design provides full access to the roller, work surface, and media, making positioning materials simple while allowing comfortable one-hand operation.

The LED-illuminated glass tabletop improves visibility for precise alignment, while the self-healing cutting mat transforms the applicator into a versatile workstation for trimming, layout, and other finishing tasks. With its intuitive controls and ergonomic design, most operators can learn to use the RollOver Flexi in less than an hour.

Product Details

Inward facing & protected activation switch

True one-hand ergonomic roller operation

Full access to roller, media, and work surface

Handles rigid substrates up to 3.14" thick

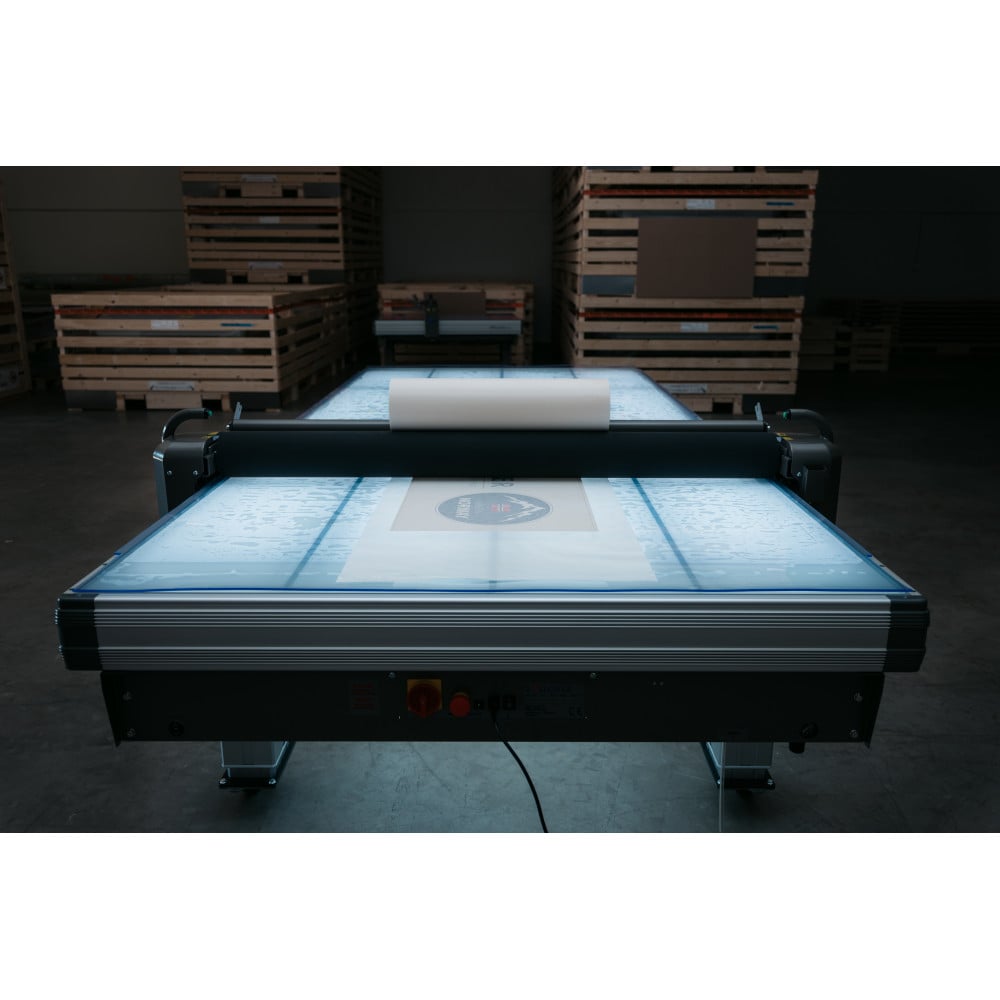

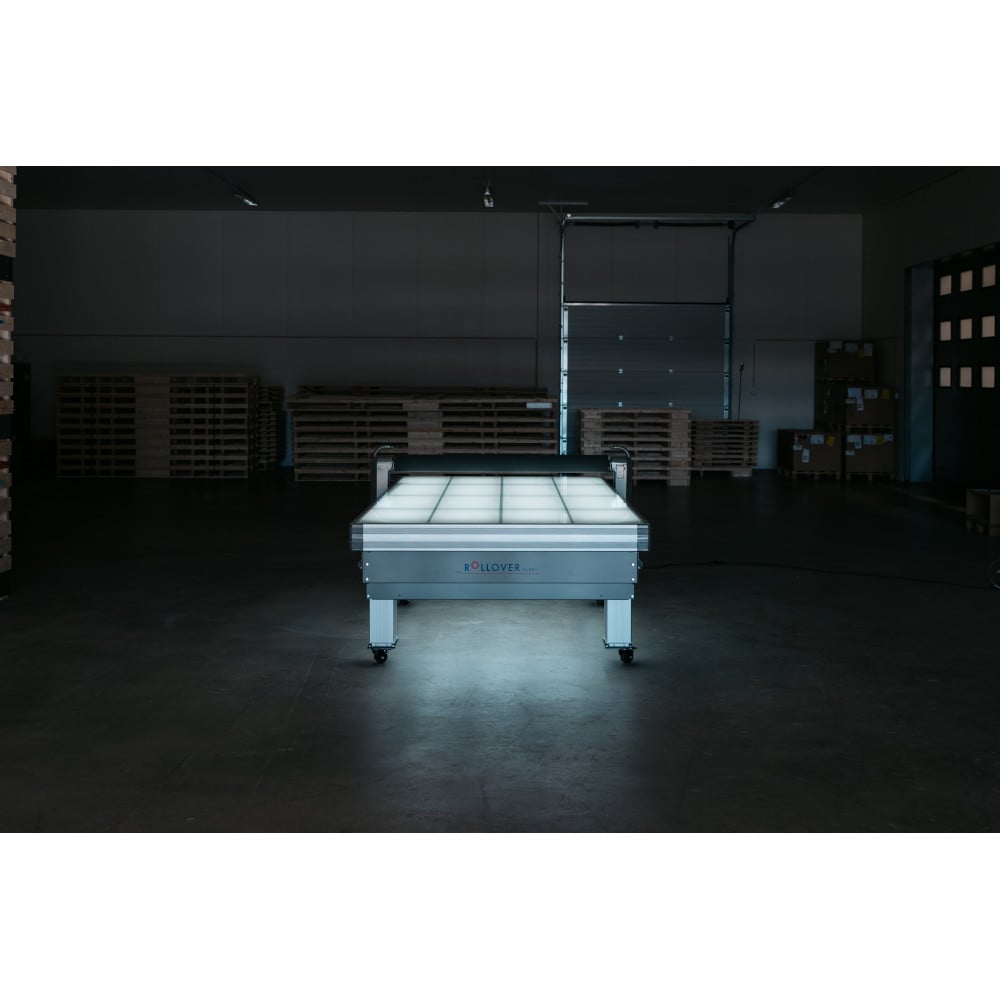

LED-illuminated glass bed

Integrated self-healing cutting mat

Reversible extra brackets for application tape

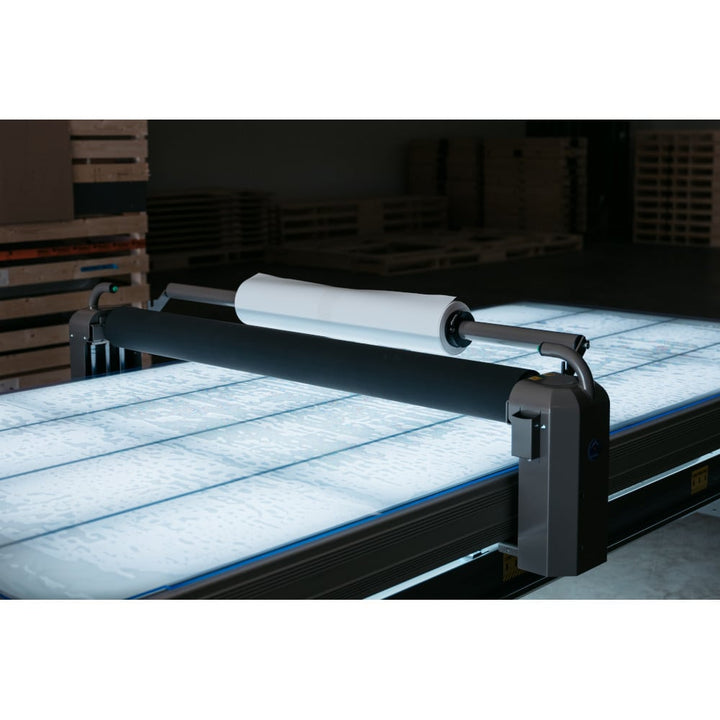

Flexible media holders and side trays

Castors for mobility

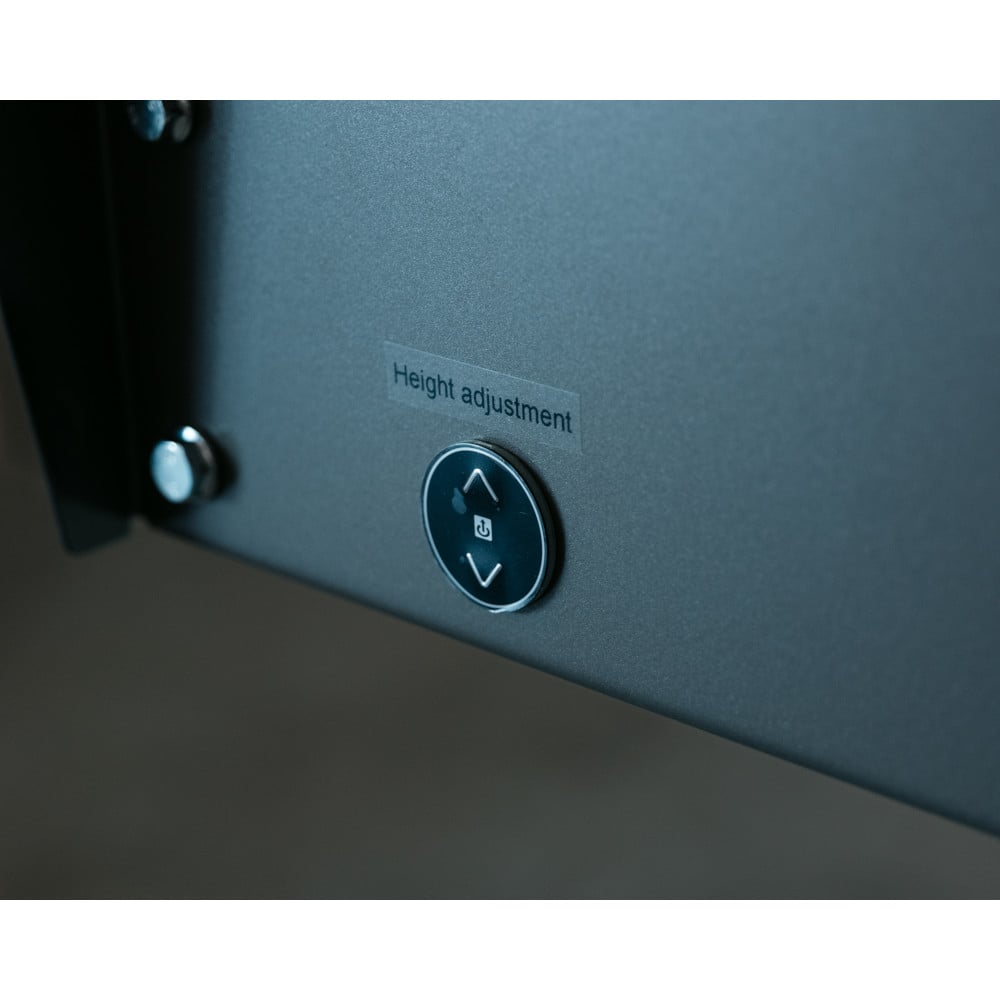

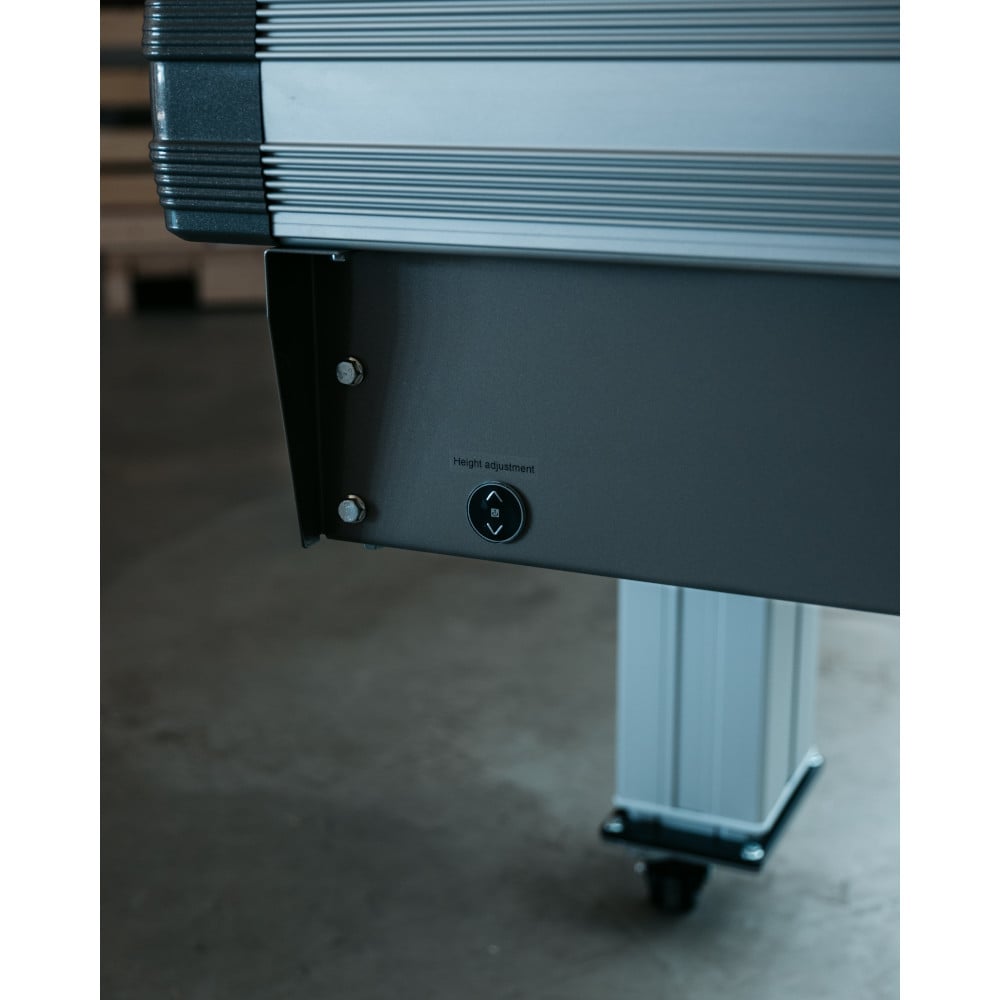

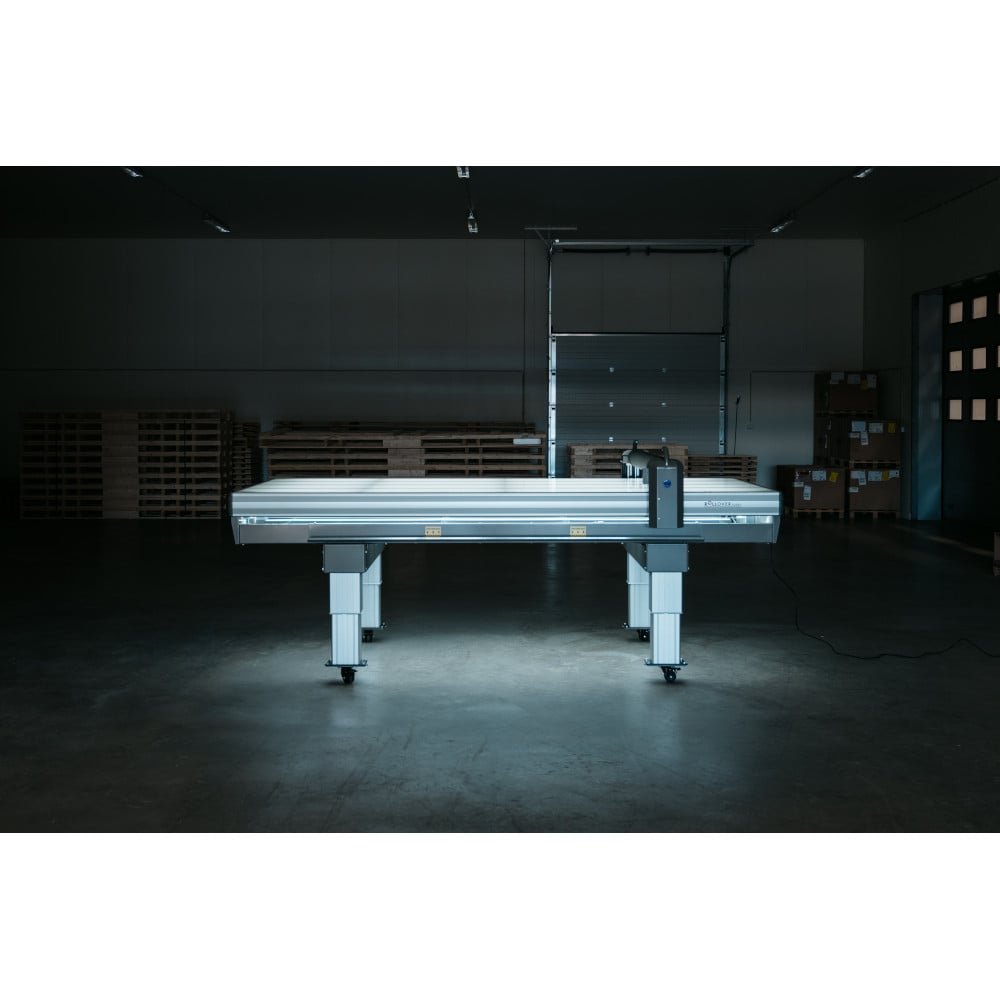

Electrically driven height-adjustable legs

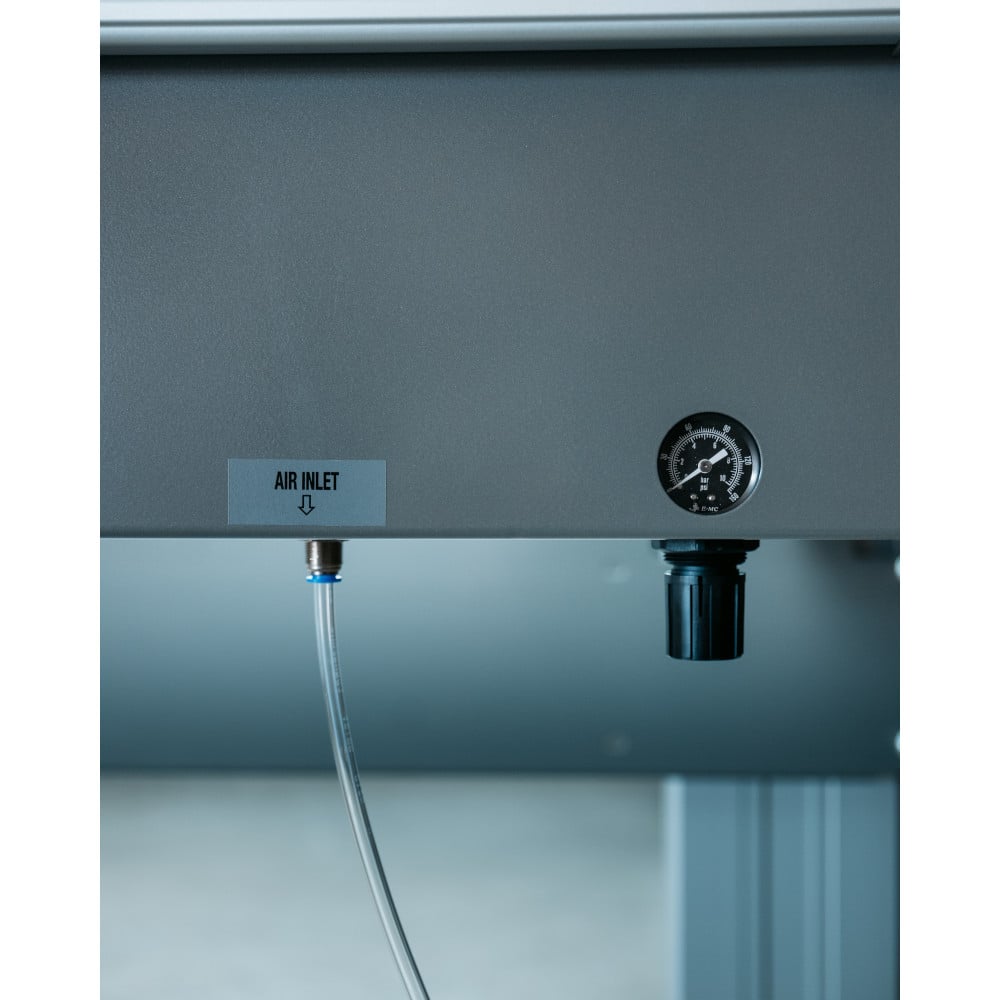

Tool pockets, air pressure gauge, and air-gun outlet

Specifications

Max Substrate Thickness: 80mm / 3.14"

Glass Bed Working Area: 155 x 336cm / 5' 1" x 11' 1"

Working Area of Roller: 155 x 306cm / 5' 1" x 10' 1"

Roller Diameter: 13cm / 5.1"

Illumination - LED: 265 watts

Height Adjustable Legs: 35" - 47"

Power Supply: 120V/60Hz

Weight: 1037 lbs.

Dimensions: 11' 4" L x 6' 4" W x 3' H

Shipping Weight: 1610 lbs.

Shipping Dimensions: 11' 10" L x 7' 5" W x 3' 11" H

Part Number: 103315HA

Rollover Accessories

ROLLOVER STORAGE TROLLEY
Item no: 10936

Integrated storage trolley for media rolls, panels and tools underneath the table.
Fitt ed with casters to provide easy access.

ROLLOVER LONG REACH CUTTER
Item no: 10910

Tool to cut media acros the table without having to lean over the table.
Spare blades 10pcs/pack available - item no: 10911.

ROLLOVER CONTACT CLEANER
Item no: 10918

Cleans any fl at surface.
Ergonomic design of the handle.
Extendable shaft included.

ROLLOVER ROLL CRADLE
Item no. 10130

25 cm / 9' 10" – set of 2
Designed for carrying and feeding media rolls
Flat base for stable positioning on the tabletop

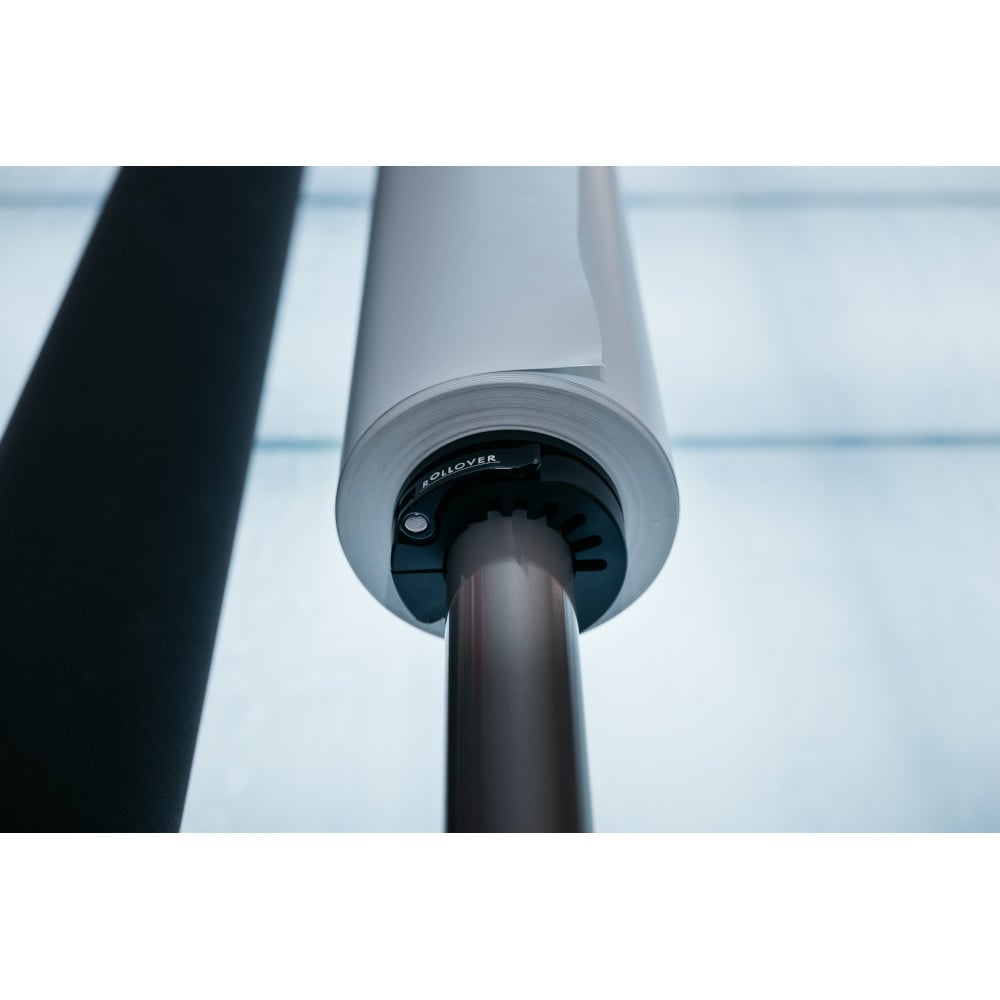

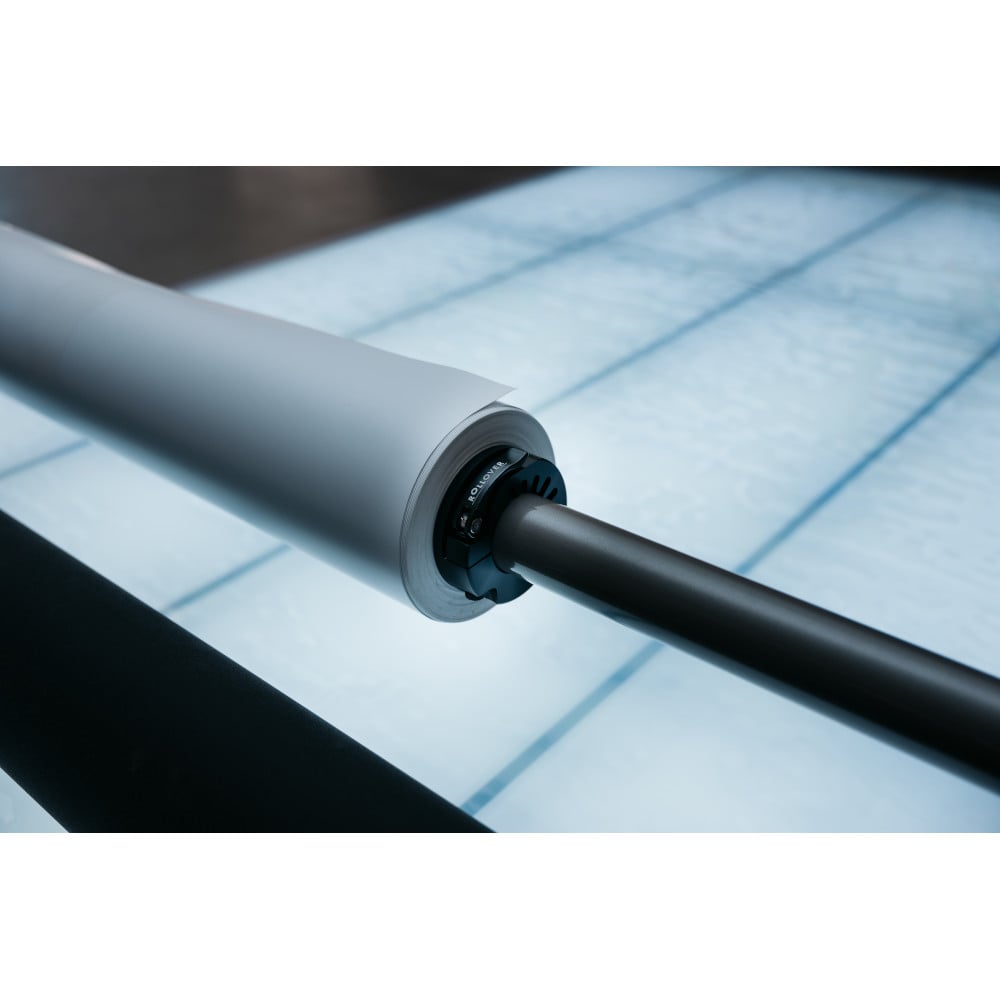

ROLLOVER CORE ADAPTORS
Item no: 10920

Set of 2 pieces to att ach media rolls to the spindle.
Fits standard inside diameter of 75mm/2.9in.

Video

Rollover Video

Transcript :

Rollover flatbed applicators, designed and engineered in Norway. Rollover is built to last with a minimum maintenance and a high efficiency. Let's explore the machine and the accessories.
Rollover arrives in one big crate and fully assembled from factory. No leveling required at any time. Underneath the table, there's no loose hanging air tubes.
Everything is hidden underneath the gantry. Rollover is a one-piece float glass, which provides you with the best results for demanding boards. We recommend you to choose height-adjustable legs, since it's very convenient to have an assigned chair for anyone working the table.
Focus on the ergonomics is very important. It's rounded corners on the gantry and the handles. Also a one-button operation, same button for up and down.
You have free access to the entire glass bed. No bridges, no towers, just a clear, efficient workspace. Included with the table, you always receive two media holders, four brackets that can be placed at the end of the table and in the middle, and a self-healing cutting mat.
Optional accessories for this table is a long-reach cutter knife. Comes with an extended shaft for long reach. Contact cleaner.
Long reach shaft, 140 centimeters, 55 inches. It's used to clean any kind of dust on the glass bed or on the media. It can be cleaned by using any kind of scraps that you have.
A sticky piece of, can be transfer tape or a vinyl, that you just stick it onto. You roll it across it and it's all good to go. Roll cradle.
Come in a set of two. They are kept at the end of the table to store the vinyl. Vinyl also can be dragged from there directly.
Corductors. Comes in a set of two. They help keeping the media on the media roller.
Rollover provides you with a five-year factory warranty. Being a modular construction, makes it easy to change any spare parts at any time. The rollover is more than just a flatbed applicator.
It is also a workstation, which is very convenient to have in any sign shop. Rollover is engineered for precision and designed for efficiency.
