Product Description

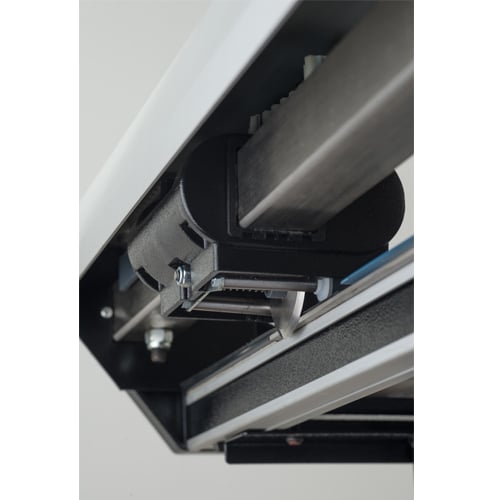

The Rotatrim High-Speed PowerTech 61" Electric Rotary Trimmer looks identical to the Power Technical. The difference is in the gear ratio inside the cutting head which creates a faster travel speed. The faster travel speed is good for cutting long lengths and large quantities of thinner materials such as paper, film, and vinyl. This may not seem like a big deal, but when you’re cutting hundreds of feet of material, it adds up. To differentiate the two, specify the High Speed for high-volume shops. However, the faster travel speed reduces the amount of torque (downward pressure) on the materials. We do not recommend the High-Speed Power Technical for thick and dense materials such as styrene and Tekra®. The high-speed version cuts at 1.0m/sec and is better where lighter materials (generally up to 1.0mm) in thickness are being cut. It is possible to remove the RCC plate (overload protection feature) on this high-speed model to allow for a cut to be performed in both directions. This is recommended as long as the material being cut is of a thinner variety.
Product Details
- Power-driven large format, precision, robust trimmer.
- Foot pedal operation with an automatic safety clamp enables a single user to easily position and cut large materials.
- Cuts a wide range of materials up to 1.0mm thick without adjustment.
- Overload protection feature.
- Ultra-hard Sheffield D2 'Tool Steel’ self-sharpening, precision engineered blades.

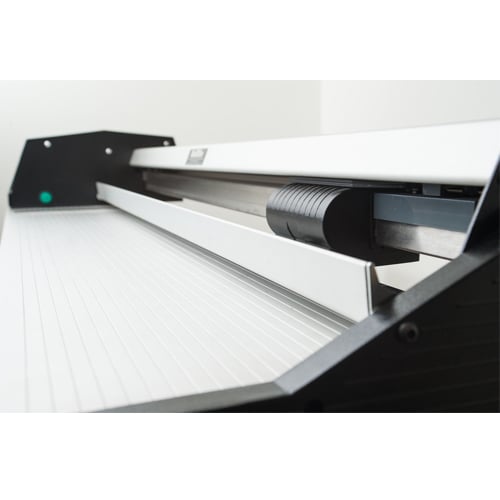

- Large single square stainless steel guide rail completely eliminates head swivel.

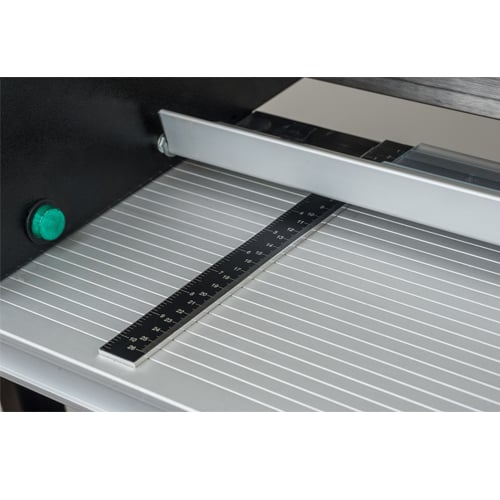

- Aluminum baseboard, end frames, head and side rule.
Specifications
- Cutting Length: 61"
- Travel Speed: 1.0m/sec
- Dimensions: 91" x 15.5" x 7.5" (W x D x H)
- Manufacturer's Warranty: 1 Year General Manufacturer Manufacturer's Warranty under normal use (excluding cutting wheels, motors and clamping strips)
- Part Number: 04ROTAPT61HS
Compare to Similar Electric Rotary Cutters
-
Model NameModelCutting LengthSuitable ForFeaturesTravel SpeedDimensionsWarranty
-
RotaTrim 60400
26"Most flexible sheet materials up to 4mm thick.Chromed 1 1/2" square stainless steel guide rail.55" x 15.5" x 7.5" (W x D x H)1 year general Manufacturer's Warranty under normal use (excluding cutting wheels, motors and clamping strips) -
RotaTrim 60405
38"Most flexible sheet materials up to 4mm thick.Chromed 1 1/2" square stainless steel guide rail.68" x 15.5" x 7.5" (W x D x H)1 year general Manufacturer's Warranty under normal use (excluding cutting wheels, motors and clamping strips) -
RotaTrim 60410
50"Most flexible sheet materials up to 4mm thick.Chromed 1 1/2" square stainless steel guide rail.79" x 15.5" x 7.5" (W x D x H)1 year general Manufacturer's Warranty under normal use (excluding cutting wheels, motors and clamping strips) -
RotaTrim 60420
61"Most flexible sheet materials up to 4mm thick.Chromed 1 1/2" square stainless steel guide rail.91" x 15.5" x 7.5" (W x D x H)1 year general Manufacturer's Warranty under normal use (excluding cutting wheels, motors and clamping strips) -
RotaTrim High-Speed 61"
61"Most flexible sheet materials up to 4mm thick.Chromed 1 1/2" square stainless steel guide rail.1.0m/sec91" x 15.5" x 7.5" (W x D x H)1 year general Manufacturer's Warranty under normal use (excluding cutting wheels, motors and clamping strips) -
RotaTrim 60430
73"Most flexible sheet materials up to 4mm thick.Chromed 1 1/2" square stainless steel guide rail.102" x 15.5" x 7.5" (W x D x H)1 year general Manufacturer's Warranty under normal use (excluding cutting wheels, motors and clamping strips) -
RotaTrim High-Speed 73"
73"Most flexible sheet materials up to 4mm thick.Chromed 1 1/2" square stainless steel guide rail.1.0m/sec102" x 15.5" x 7.5" (W x D x H)1 year general Manufacturer's Warranty under normal use (excluding cutting wheels, motors and clamping strips) -
RotaTrim 60440
85"Most flexible sheet materials up to 4mm thick.Chromed 1 1/2" square stainless steel guide rail.115" x 15.5" x 7.5" (W x D x H)1 year general Manufacturer's Warranty under normal use (excluding cutting wheels, motors and clamping strips) -
RotaTrim 60450
100"Most flexible sheet materials up to 4mm thick.Chromed 1 1/2" square stainless steel guide rail.129" x 15.5" x 7.5" (W x D x H)1 year general Manufacturer's Warranty under normal use (excluding cutting wheels, motors and clamping strips)
