Product Description
The

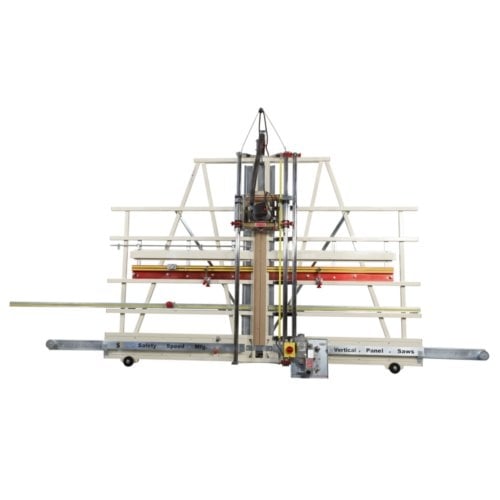

Safety Speed SR5UA ACM is a vertical panel saw and router all in one. A big brother of
SR5A ACM, the SR5UA ACM is equipped with a heavier duty worm drive motor, a 3-1/4 Hp router motor and aluminum material rollers. This unit is designed for accurate cutting and V-Grooving of ACM (Aluminum Composite Material) panels. It has a special floating router with a nylon guide that ensures a constant cut depth. The saw was designed with maximizing efficiency in mind, and it just takes a minute to convert it to a router. Additionally, it has a dust collection system in place to catch waste when routing and cutting. With an endless number of rip cuts, this panel saw can crosscut materials up to 62" wide and up to 1-3/4" thick. Additionally, it has a halfway divider, which makes processing smaller panels much simpler. With the Safety Speed SR5UA ACM Panel Saw and Router Combo, creating ACM Panels is simple.
Product Details
- 3/3.3 Worm Drive Saw Motor and Heavy-Duty Router Motor
- Welded Steel Frame 10’
- Blade Guard
- 1-¾" Chrome Plated Guide Tubes
- Adjustable cutting directions with rulers: Horizontal and Vertical
- 8 Nylatron Roller Bearing Systems
- 4 material clamps
- Pressure Guard for thin material
- Material Rollers are Solid Aluminum
- Counterweight system
- Floating adjustable router head
- Mid-way fence complete with a stop
- 1 Year parts warranty
- Router bit for grooving and specialty saw blade
- Hold Down Bar
- Dust hood and hose kit
- Extensions
- Fixed stand
- 3 Hp worm drive saw motor.
- 3 1/4 Hp heavy-duty router motor.
- 10 ft. Welded steel frame.
- Chrome plated 1 3/4" guide tubes.
- 8 Nylatron roller bearing systems.
- Adjustable vertical and horizontal rulers.
- Quick change from vertical and horizontal cutting.
- Thin material pressure guard.
- Solid aluminum material rollers.
- Counterweight system.
- Adjustable floating router head.
- MID-WAY FENCE with stop.
- 4 material clamps.
- 2 blind dado stops.
- Wheels.
- Fixed Stand.
- Extensions.
- Left and right quick stop gauges.
- MID-WAY FENCE flip stop.
- Dust hood and hose kit.
- Hold down bar.
- Specialty saw blade and router bit for v-grooving.
- 1 year parts warranty.
Specifications
- Max. Crosscut: 62" (1575 mm)
- Max. Rip Cut: Unlimited
- Max. Cut Thickness: 1 3/4" (44mm)
- Cut Accuracy, Straight & Square: 1/64" (.4mm)
- Cutting Height: 62”
- Arbor Size: 5/8”
- Saw Blade Diameter: 8" (210mm)
- Motor: 13 amp, 120V, 220V
- Router: 15 amp, 120V, 220V
- Frame Length: 120" (3050mm)
- Shipping Weight: 687 lbs
- Dimensions: 17“w x 120“l x 92“h
