Product Description

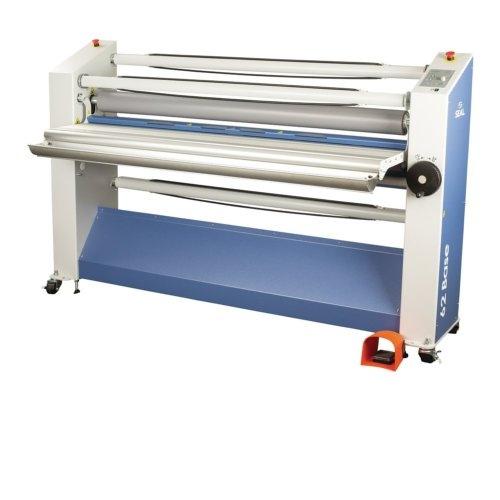

The SEAL 62 Base is ideal for mounting and laminating pressure-sensitive graphics up to 61". Its features include a heat assisted top roller, a 2" nip opening, a manual nip adjustment for precise operation and 16.4ft/min speed capabilities. The SEAL 62 Base is easy- to-use and will deliver genuine flexibility and high performance levels for the small to medium sized user. For optimum performance, an optional print roll trough, image guide, and leveling feet are available for the 62 Base.
Product Details
- Heat assisted top roller for superb lamination performance.
- 61" working width to handle a wide range of media.
- Adjustable pressure and speed settings with maximum operating speed of 16.4’ft/min.
- 2" nip with manual adjustment suitable for working with a sled for road signs.
- Auto-grip shafts for user friendly webbing.
- Swing-up feed table to facilitate easy set up.
- Foot switch for hands free operation.
- Self checking safety eyes for increased operator safety.
- Easy to use ergonomic control panel.
- Optional image guide ensures perfect alignment and flat lamination.
- Optional roll trough keeps rolled prints in place before and during lamination.
- Optional leveling feet keeps the laminator stable for the highest quality finished product.
- Optional rear power take up for roll-to-roll applications including vehicle wraps available.
Specifications
- Depth: 23" (590mm)
- Depth (excl. table): 19" (483mm)
- Electrical Requirements: 115 VAC, 50/60 Hz, 15A NEMA 5-20 plug
- Heated Rollers: Heat Assist
- Maximum Roller Temperature: 104F (40C)
- Maximum Speed: 16.4 ft/min (5 m/min)
- Maximum Substrate Thickness: 2" (50mm)
- Maximum Working Width: 61" (1575 mm)
