Product Description

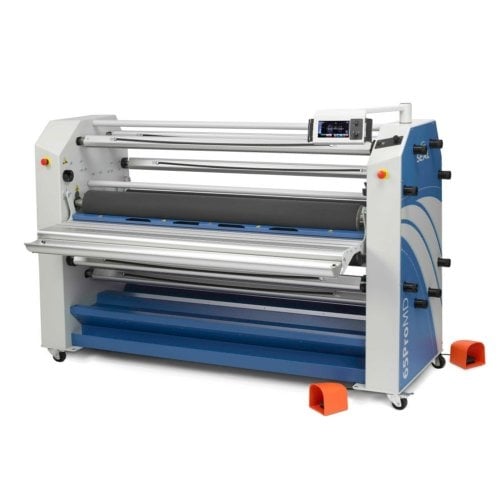

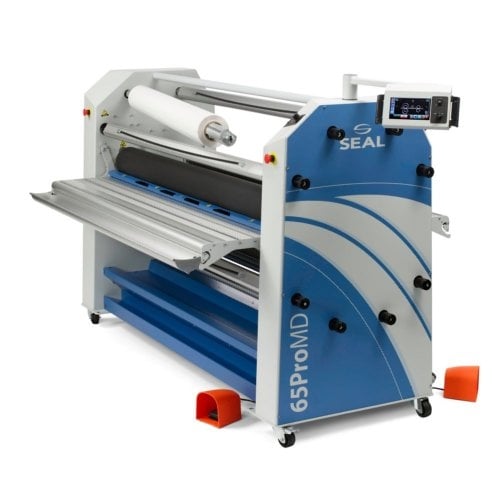

The SEAL 65 Pro MD 65" Wide Format Roll Laminator is a versatile and hig production laminating machine that can run both hot and cold applications. It can laminate documents up to 65" wide and capable of 3 mil thermal encapsulation at a speed of up to 15 feet per minute. Utilizing cutting edge technology, the 65 Pro MD is capable of running thermal film at 2-3 times the speed of other laminators on the market today. Improve the productivity of your finishing jobs with SEAL 65 Pro MD 65" Wide Format Roll Laminator.
Product Details

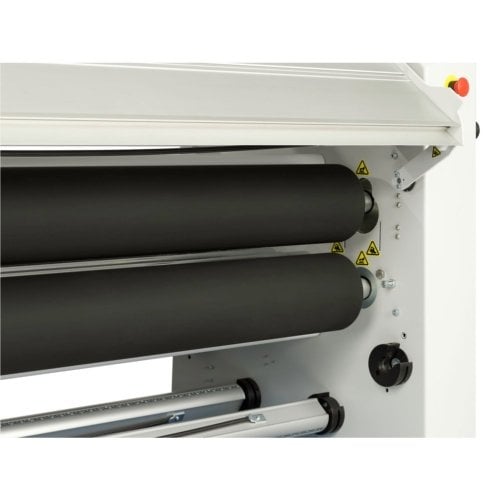

- Dual IR Quartz heated rollers capable of running both hot and cold films.
- 65" working width to handle a wide range of media.
- Maximum operating speed of 15’/minute.
- 2" nip with precision pneumatic rollers for even speed and pressure to ensure smooth, wrinkle-free graphics.
- Bi-directional operation allows for efficient operating.

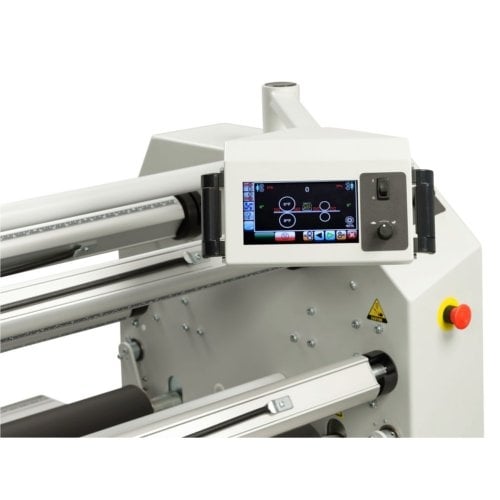

- Easy Operator Interface (EOI) controls temperature, speed, cooling and nip height with a touch screen.

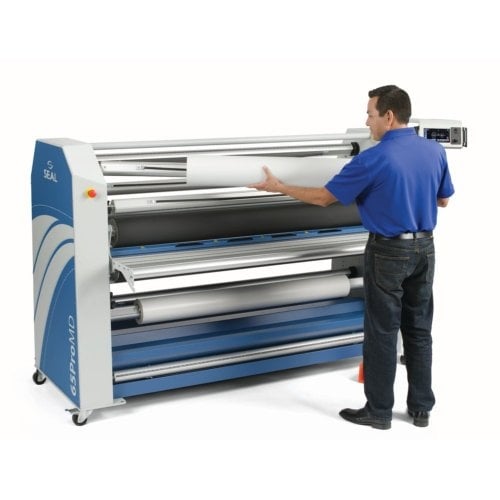

- 4 auto-grip swing up supply shafts that are cantilevered and swing out and away from the laminator so that films and adhesives can be loaded quickly and easily without any obstructions.
- Flip up in feed table for easy webbing.
- Foot switch for hands free operation.
- Self checking safety eyes for increased operator safety.
- Removable front/rear image roll trough for easy feeding of images.
- Optional Slitter Assembly that includes 2 cutters/slitters.
Specifications
- Max. Working Width: 65" max (1651 mm max)
- Max. Speed: 15 ft/min (4.25 m/min)
- Max. Substrate Thickness (Nip): 2" (50mm)
- Max. Roller Temperature: 275F (135C)
- Roller Heating: Dual (Top/Bottom)
- Auto-grip Shafts:
- Supply 4
- Drop In 3
- Maximum Roll Diameter:
- Supply (4 positions) 12" (305mm)
- Take-up (2 positions) 8" (200mm)
- Combi+ (2 positions) 10" (254mm)
- Maximum Film Weight: 120 lbs (54 kg)
- Dimensions (w x h x d):
- Without roll trough 91" x 62" x 51" (2311 x 1575 x 1320mm)
- With roll trough 91" x 62" x 55" (2311 x 1575 x 1397mm)
- Compatible Supplies: 3" Core Roll Laminate - 1.5-10mil Thick & Up to 65" Wide
Mounting Board - Up to 2" Thick - Shipping Dimensions (W x H x D): 99" x 63.5"x 42.6" (2515 x 1613 x 1083mm)
- Weight:
- Net Weight 1850 lbs (839 kg)
- Shipping Weight 1955 lbs (887 kg)
- Electrical Specifications:
- US/Canada 208-230V, 50/60Hz, single phase, 50 amp - NEMA 6-50 Plug
- Europe 230/400V, three phase, 20 amps. IEC 60309-1,32 amp
- Mechanical Requirements: 2 cfm compressed air @ 100 psi
- SEAL 65 Pro MD Part Number: 64600
- Core Size: 3"
- Manufacturer's Warranty: 2 Year Limited Manufacturer's Warranty (2 Year Parts, 1 Year Defect, 1 Year Labor)
