Product Description

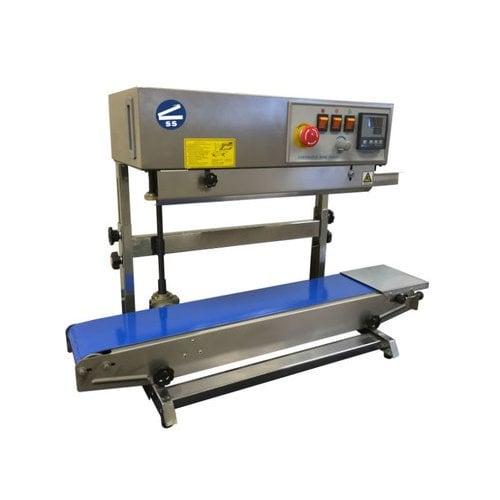

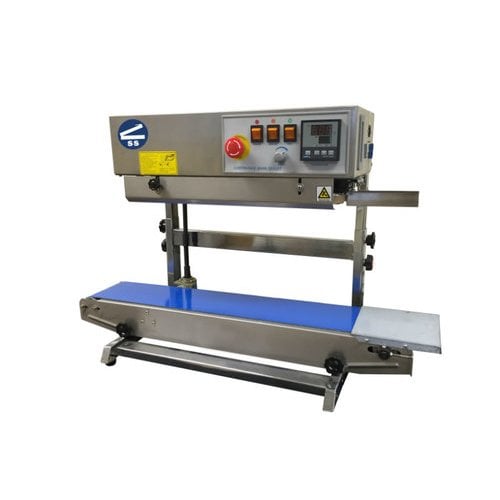

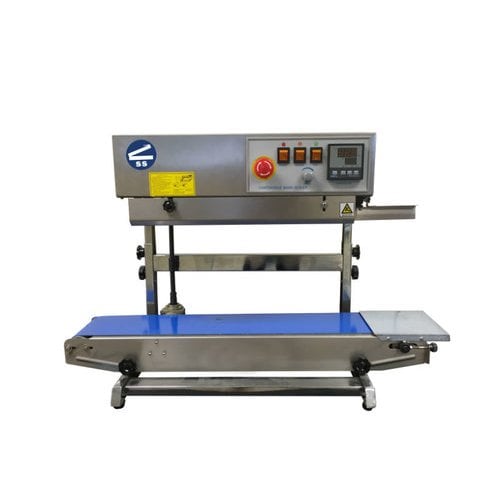

Seal a wide range of thermoplastic materials such as PE,PP, and laminates with the SealerSales CBS-880II Vertical Band Sealer [Embossing, Right Feed, and 15mm Seal Width]. This machine, made of durable stainless steel, heats up quickly and is simple to use. It has a solid-state digital temperature controller, a motorized rubber conveyor with fully adjustable height and depth in relation to the sealing bars, and knurled pressure rollers with variable pressure adjustment. This model has a 15mm seal, feeds from right to left, and employs a constant direct heat sealing method. This can be easily converted to a vertical form using a kit included with the purchase. The operator can include a single line message in the bag seal using an optional embossing wheel.
Product Details
- Vertical configuration with minimum and maximum bag height when bag filled: Min: 6.0" / Max: 12.0"
- Durable stainless steel
- Easy to operate - minimal operator training
- Fast warm up time
- Seals any thermoplastic material including PE, PP, and laminates

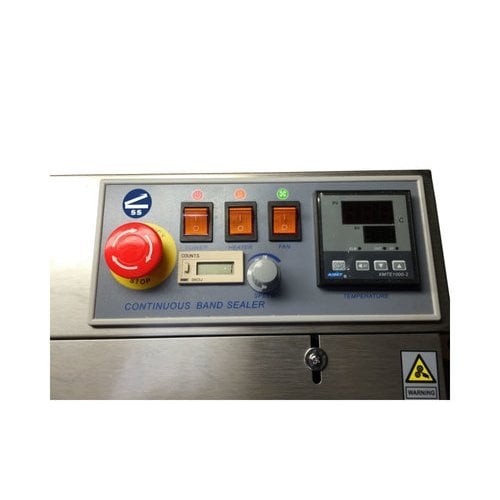

- Solid state temperature controller to maintain seal bars at proper temperature for consistent seal quality
- Motorized rubber conveyor with speed control
- Knurled pressure wheel rolls with variable pressure adjustment
- One pair each of cooling and heating blocks
- Sealing method - constant direct heat
- Unit feeds right to left
- Equipped with an emergency stop button

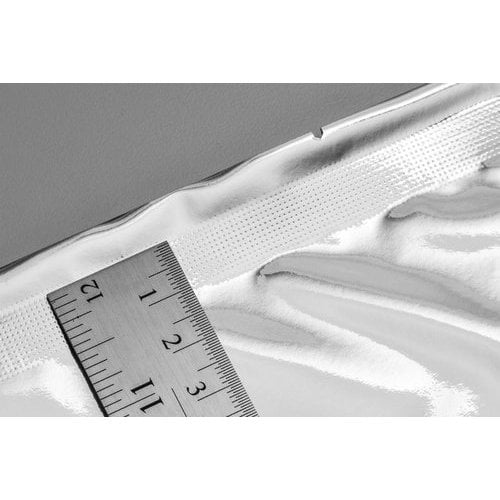

- Includes wheel to emboss on seal line without ink
- Shipped in horizontal configuration - convert to vertical with included kit

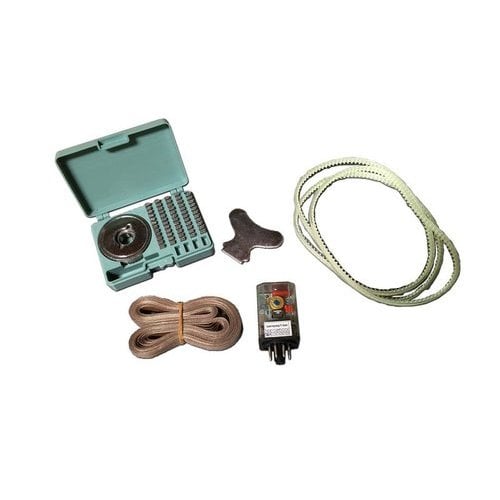

- Spare parts include: PTFE sealing belt, drive belt, PC Board, tools, and typesets (numbers 0-9 and letters EXD)
- Optional:
- Smooth or serrated wheel
- 10mm, 15mm or 30mm seal width
- Digital counter to keep track of sealed packages
- Increase vertical configuration to minimum and maximum bag height when filled: Min: 11" / Max: 16.5"
Specifications
- Power: 110V / 60Hz
- Motor / Sealing Power: 50W / 300x2
- Sealing Speed: 0-630"/min
- Seal Width: 15MM
- Temperature Range: 0-300°C
- Conveyor Size: 38" x 7"
- Max. Conveyor Load: Under 22-lbs
- Bag Size (Vertical): 6" - 12"
- Character Size: 3 x 4 x 9mm
- Optional Embossing: 1 Line Embossing (3 sections with 15 characters/line)
- Dimensions: 33" x 15" x 22"
