Product Description

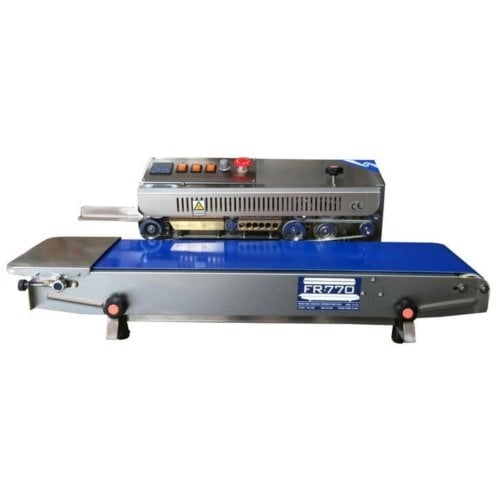

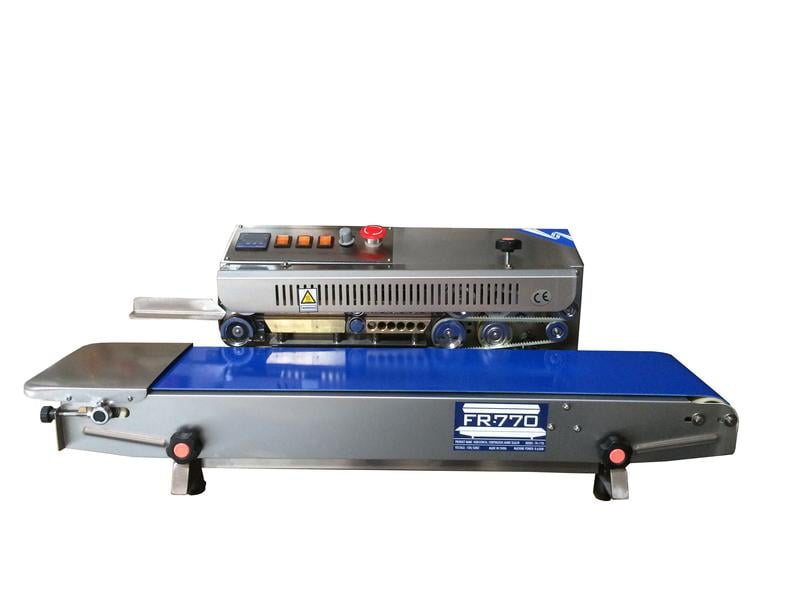

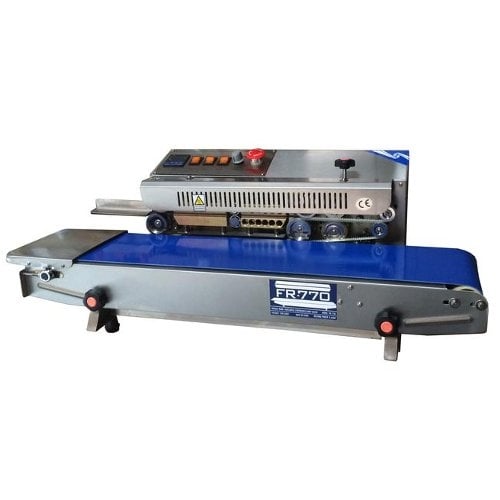

This SealerSales FR-770I Horizontal Continuous Left Feed Band Sealer is suitable for sealing any thermoplastic materials and bags. This sealer can seal 20-30 pcs of 6" wide poly bags in one minute. Optional embossing wheel allows operator to include a message on the seal line of the bag. Can be used in a variety of fields such as the food, medical, and cosmetic industries.
Product Details
- Durable stainless steel.
- Easy to operate - minimal operator training.
- Fast warm up time.
- Seals any thermoplastic material including PE, PP, and laminates.
- Solid state digital temperature controller to maintain seal bars at proper temperature for consistent seal quality.
- Fully adjustable conveyor.
- Motorized rubber conveyor with speed control.
- Knurled pressure rolls with variable pressure adjustment.
- One pair each of cooling and heating blocks.
- Sealing method - constant/direct heat.
- Unit feeds left to right.
- Equipped with an emergency stop.

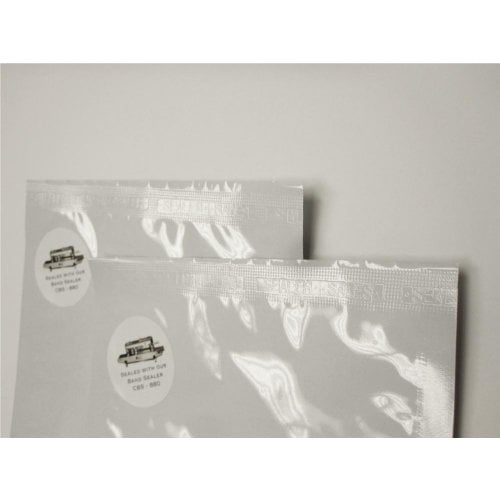

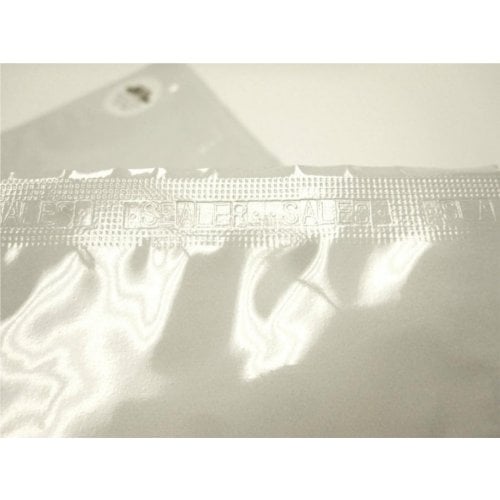

- Optional embossing attachment allows for printing on seal line w/o ink.

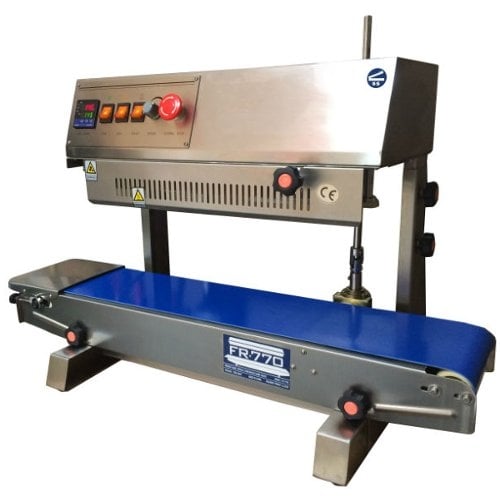

- Option: vertical configuration band sealer available - FR-770II.

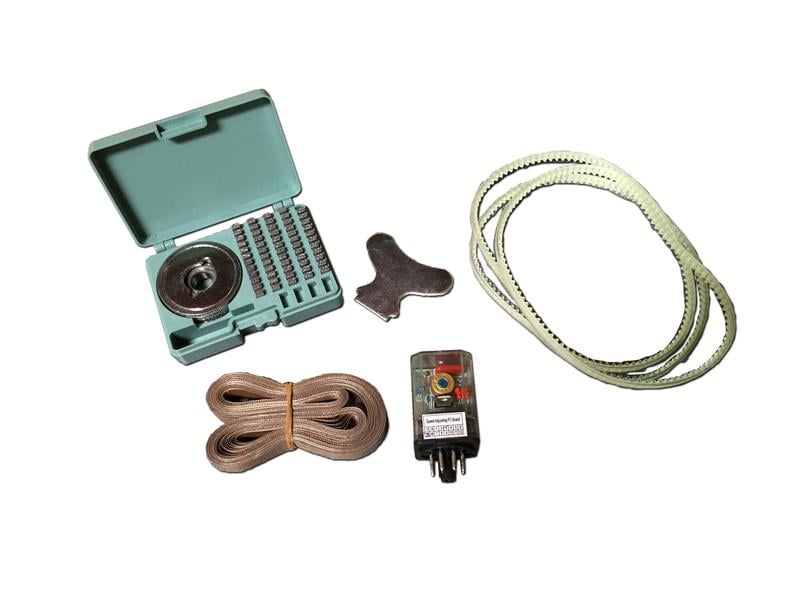

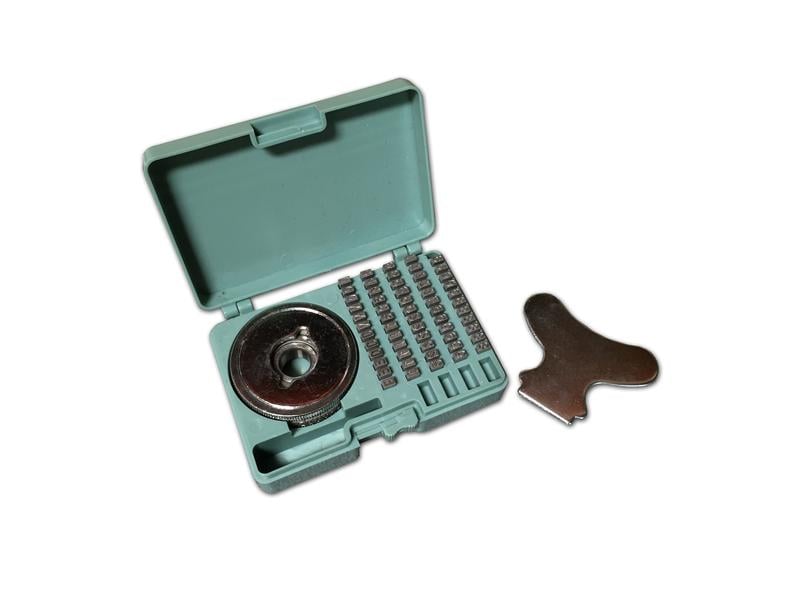

- Spare parts include: PC Board, PTFE belt, wheel belt, tools, and type set.
Specifications
- Power: 110V/60Hz
- Motor Power: 50W
- Sealing Speed: 0-472 Inches/Minute

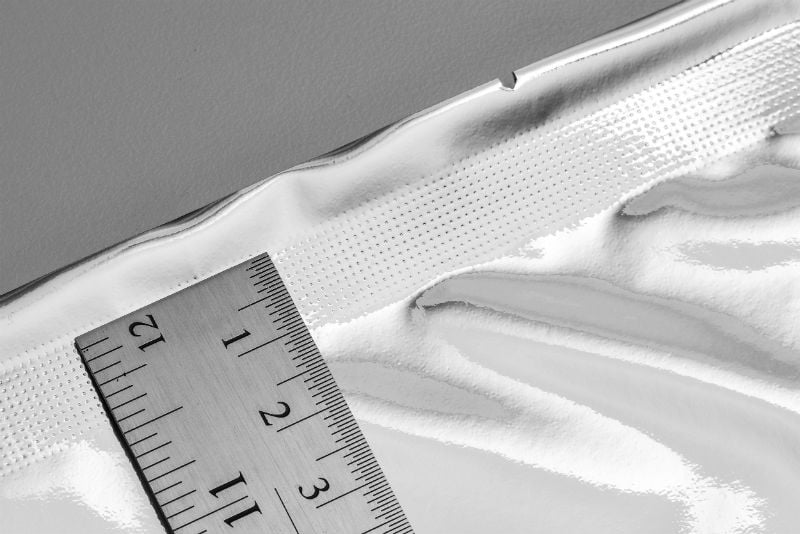

- Seal Width: 8mm
- Temperature Range: 0-300°C
- Conveyor Size: 38" x 7"
- Single Conveyor Load: 2.2 lbs.
- Bag Size (Filled) - Vertical Unit: Minimum - 7.8" / Maximum - 12"
- Character Size: 3 x 4 x 9mm / 18PT
- Optional Embossing: 1 Line Embossing (2 Lines Available) 3 Sections w/ 15 Character/Line
- Dimensions: 33" x 17" x 13" (Horizontal) / 33" x 17" x 22" (Vertical)
- Spiral / Binding101 Part Number: 04SSFR770I
Video
Sealer Sales FR-770 Left to Right Feed Continuous Band Sealer Video
Transcript :
