High Efficiency: Powerful 1-1/4HP motor with a vacuum pump capacity of 20m³/h ensures quick and effective sealing for various applications.
Versatile Sealing Options: Features a 3mm seal width with electric cut-off for reliable and secure sealing of different pouch sizes.
User-Friendly Controls: Equipped with basic digital and fully programmable controls for customizable sealing processes tailored to your needs.
Durable and Safe Design: Constructed from stainless steel with a water-resistant electrical box, ensuring longevity and safety during operation.
Product Description
This SealerSales TC-520F 21" Tabletop Chamber Vacuum Sealer is a stainless steel vacuum chamber machine ideal for sealing vacuum pouches used in the pharmaceutical, food, or electronic industries. It has a 21.3" seal length, and a 3mm seal width with electric cut off. With the option of basic digital or fully programmable controls, you can decide what will best suit your needs. Custom features include: PNC-01 microprocessor control, soft air, bi-active sealing, gas flush system, twin beam sealing, 220V.
Product Details

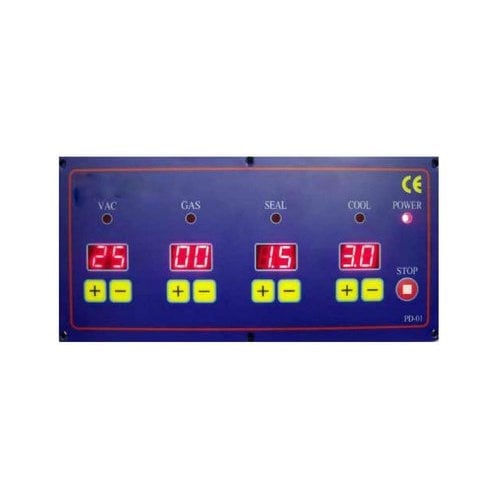

PD-01 basic digital control panel.
Stainless steel construction.
Clear see-through lid.
Water resistant electrical box (IP-56).
Bladder activated sealing.
Air assist Sealing.
6mm Seal wire or electric cut-off seal bar.
Busch vacuum pump.
Seal bar: Front only.
Custom features include: PNC-01 microprocessor control, soft air, bi-active sealing, gas flush system, twin beam sealing, 220V.
UL, CSA & NSF Approved.
Ships via LTL Freight only.
Specifications
Power Suppply: 110V / 1Ph / 60Hz / 15AMP
Vacuum Pump Capacity: 20m³/h (1-1/4HP/0.75Kw)
Seal Bar Length: 21.3" / 540MM
Distance Between Seal Bars: 21.3"
Sealing Width:3mm seal w/ electric cut off
Chamber Size: 7.9"
Chamber Depth: 19.3"
Dimensions: 24" x 30" x 22"
Weight: 280lbs
Video
Sealer Sales TC-Series Vacuum Sealer Chamber - The Best Little Vacuum That Could
Transcript :
TC-SERIES VACUUM CHAMBER. The Best Little Vacuum Chamber That Could. Features: compact; easily fits most space; stainless steel construction; durable aluminum steel bar; acrylic plastic lid; pump manufactured and designed in Italy (TC-420 series-Busch pump); custom features available šœ gas flush, sensor control, 220V; ETL, UL, NSF, CE, and CSA Certified. Turn power on. Set the vacuum, gas (if available), seal and cool settings. Please note: cooling settings must be equal to or greater than the seal settings. Place your item to be vacuumed in the chamber. Bring the lid down and the cycle will automatically begin. Vacuum Cycle šœ The standard cycle for this compact vacuum sealer is about 30 seconds. There is also a vacuum gauge which indicates the amount of vacuum. Seal/Cool Cycle šœ The vacuum sealer will go through the sealing & cooling process and li will automatically open when completed. Product is tightly sealed; producing a nice two line seal.
