Heavy-duty construction for durability in high-volume production environments
Comprehensive accessory kit included for immediate use and convenience
Spacious 15" x 32" table for accommodating large projects
Compact design with a small footprint, ideal for any workspace
Product Description

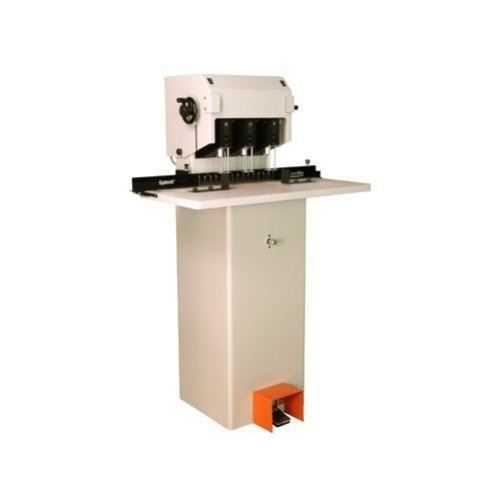

The Lassco Wizer Spinnit FMMH-3 Hydraulic Three Spindle Paper Drill is a heavy duty floor standing drill that is designed for production environments and print shops. The FMMH-3 provides a fully automatic hole drilling with a two inch capacity. It is operated by a powerful hydraulic lift that is activated using a foot pedal control. This drill is easy to set up, easy to adjust and easy to operate. All of these things make the Lassco Spinnit FMMH-3 an excellent choice where production speed is essential. Consider adding the Spinnit FMMH-3 to you production floor today.
Product Details
2" drilling capacity
Powerful hydraulic lift with foot pedal activation
Easy to adjust moveable head design
Adjustable hydraulic lift speed
Built for ease in operation and maximum production performance
Includes MS-1 drill sharpener, Spin-Eze drill bit lubricant, Set of three 5/16" style A drill bits, Sharpening stone, Chip clearer
Specifications
Table size: 15" x 32"
Base footprint: 15" x 15"
Table height: 35-1/2"
Overall height: 52"
Overall width: 32"
Overall depth: 26"
Max drilling capacity: 2"
Spindle Motor: 3/4 HP, 115 Volts
Hydraulic Motor: 1/2 HP, 115 Volts
Shipping dimensions: 48" x 40" x 60"
Shipping weight: 335 lbs
Ships via: LTL Truck
Manufacturer's Warranty: 1 year parts and labor excluding consumables
Lassco Wizer Spinnit FMMH-3 Hydraulic Three Spindle Paper Drill Review
If you want to purchase one of the best paper drills on the market, you should really take a look at the Lassco Wizer Spinnit FMMH-3 Hydraulic Three Spindle Paper Drill. This device can process a lot of paper and it's easy to operate. Here's everything you need to know about it.
The FMMH-3 is capable of drilling through a big 2-inch stack of paper in one swift movement. This far outshines the punching capacity of a traditional hole punch, so it's a great machine to use when you have to process a lot of sheets quickly.
This is a three spindle paper drill so you'll be able to produce the traditional three-hole pattern so your paper can be stored in binders. Using a three spindle drill is far preferable to using a device with only a single spindle because you can punch all three holes at once and save time. Also, the drilling heads that can be easily adjusted.
The FMMH-3 has a hydraulic lift which makes it pretty easy to use. (The speed of the lift can be adjusted.) It also has a foot pedal so you'll be able to keep your hands free while operating it. You use the foot pedal to engage the lift and get the process started.
This device has a table that measures 15" x 32" so you'll be able to drill legal-sized sheets. (Legal-sized paper measures 8.5" x 14".)
Paper drills are typically on the large size and that's definitely the case with the FMMH-3. This unit's dimensions are 52" (height) x 32" (width) x 26" (depth) and it weighs 335 pounds. Because of its size, this machine isn't a good fit for small work areas and is better suited for production and industrial environments. Also, it must be shipped on a truck because of its size so the shipping costs will be a bit high.
Everything you need to get started with the FMMH-3 is included in the crate. This includes three 5/16" drill bits, a sharpener and a sharpening stone, some bit oil, and a chip clearer.
Finally, the FMMH-3 comes with a one-year warranty.
Lassco Wizer is known for making high-quality drills and the FMMH-3 is definitely one of them. This is an impressive machine that has a fantastic drilling capacity so you'll be able to process your sheets as quickly as possible. It's great that this is a three spindle device because you'll be able to punch all your holes at one time. Even though this is a very large device, it's easy to use thanks to its foot pedal and hydraulic lift. And it's terrific that Lassco Wizer gives you a "care package" of supplies to use with this device. (It will definitely save you some money.) You'll just want to make sure your work area is large enough to accommodate this device. If you do have enough room, consider ordering the FMMH-3 today because you're going to love what it can do for you.
