Product Description

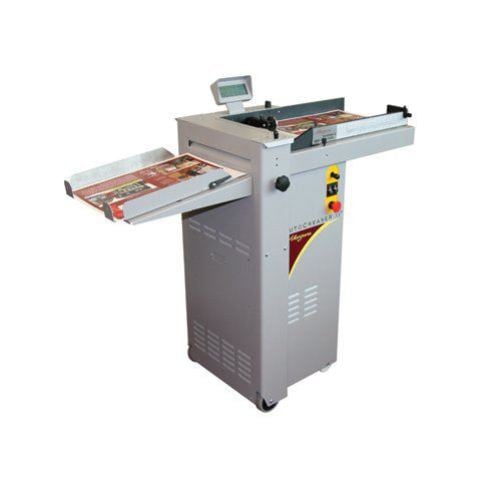

The Standard Morgana AutoCreaser Pro 33 provides a fast, effective way to channel score covers, cards or laminated material virtually eliminating image cracking. This capability is especially important in digital color and print-on-demand environments. Simple operation, high productivity and economical cost make the Standard Morgana AutoCreaser Pro 33 an excellent compliment to your finishing operation. The Standard Morgana AutoCreaser Pro 33 is a fully automatic, suction feed channel scoring system designed for both digital and conventional offset printers.
Product Details
- Unique Design: The AutoCreaser Pro 33's unique channel scoring action provides an ideal finish on substrates that are easily damaged using other methods. This is especially true in the case of the latest generation of ink or toner-based digital printing systems, where the use of rotary scoring often results in cracking of the stock and damage to the printed image. The Standard Morgana AutoCreaser Pro 33TM can handle sheet sizes up to 12.9"W x 19"L and sheet weights up to 15-point cover stock. When used in hand feed mode, the machine can handle sheet sizes up to 24.8" in length. Using an 81/2" x 11" sheet size, speeds of up to 8,500 individual creases per hour can be achieved.
- Applications: Booklets, Perfect Bound Books, Folded Sheets/Brochures, Greeting Cards, Announcements
- Programming Function: Utilizing a simple programming function, the AutoCreaser Pro 33 can place up to 16 scores per single sheet. The minimum distance between scores is 0.15" (4mm) and it is possible to make microadjustments to 0.1mm. For often-repeated jobs, the AutoCreaser Pro 33 can store 9 programs, each capable of up to 16 scores.
- Superior Channel Scoring: The heavy-duty scoring blade and opposing channel, are mechanically controlled over their entire length, so that equal pressure is applied to the material and no damage or marking occurs. The operating action is also reversible for inverse scoring.
- Precision Engineered: The side-lay alignment and suction chamber, which is built into the feed-table, ensures that every sheet is accurately timed and registered for precision scoring.
- Unique Channel Scoring: Designed to handle the output of today's digital color and black and white printing systems, the AutoCreaser Pro 33's unique channel scoring process, unlike traditional rotary scoring systems, does not promote cracking of the paper fibers or break down of the printed image.
Specifications
- Feeding System: Bottom suction feed
- Maximum Sheet Size: 12.9"W x 19"L (24.8"L in manual feed mode)
- Minimum Sheet Size: 5.5"W x 6.3"L
- Maximum Paper Weight: 150+ lbs. cover (400gsm)
- Minimum Paper Weight: 20 lb. bond/70gsm
- Maximum No. of Scores Per Sheet: 16
- Maximum No. of Programmed Applications: 9
- Minimum Repeat Score Distance: 0.15" (4mm - depending on paper weight)
- Minimum Score Distance: From lead edge 1" - From tail edge 0.78"
- Speed Per Hour:* (8.5" x 11" sheet size) Up to 8,500 single scores Up to 3,360 double scores
- Speed Per Hour:* (11" x 17" sheet size) Up to 4,320 single scores Up to 2,880 double scores
- Additional Features: Reversible creasing mechanism for inverse crease action, standard 56 tooth perf wheel and anvil, Icon-based touch screen LCD display, joystick control set-up, 2 running speeds, batching capability, castor mounted.
- Dimensions: 46"L x 18"W x 39"H
- Weight/Shipping Wght: 240 lbs./ 280 lbs.
- Power: 230V, 60Hz, single phase, 15A
- Warranty: 1 Year Manufacturer Warranty
