Product Description

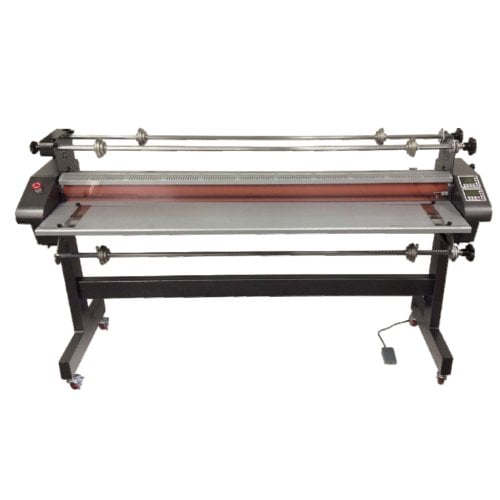

Laminate wide format media with Tamerica TCC1655-HC 65" Wide Format Hot and Cold Laminator. With a 65'' laminating width, this hot and cold laminator can take on large format jobs like a pro. It can laminate media from 1.5mil to 10mil in thickness and mount media up to ½'' thick. The laminator has a fully digital system where operators can input speed and temperature adjustments in the user-friendly keypad; operators can also input settings for repeat jobs in the system. Film feeding is effortless with tension adjustment; this feature allows operators to set the ideal tension needed in achieving perfect lamination. Heated rollers that are made from premium silicon rubber ensure bubble and scratch-free lamination. The rollers have an independent heat control switch that allows single-sided laminating, encapsulating, and cold laminating. Cooling fans ensure no-curl lamination. Side-end slitters and built-in trimmers facilitate fuss-free cutting of media. With user safety in mind, the laminator has an emergency stop switch and safety sensors on the tray and shield; a foot pedal also provides additional user control. A sturdy metal stand supports the laminator and provides an ergonomic workflow. The comprehensive features of the laminator make it ideal for schools, offices, copy and print shops. For a high-quality professional laminator that is user-friendly and cost-efficient, consider Tamerica TCC1655-HC 65" Wide Format Hot and Cold Laminator.
Product Details
- Max Width: 65" (1640mm)
- Max Thickness Mounting: 1/2" (12mm)
- Max Temperature: 320°F (160°C)
- Max Speed: 10'/min (3m/min)
- Temperature Control: Included
- Speed Control: Included
- Display: LCD
- Pre-heat Timer: 25min
- Heating System: Heated Rollers
- Power Supply: 220V/50Hz
- Power Consumption: 3000WATTS
- Film Core Size: 1" - 2.25" & 3"
- Compatible Supplies: 1", 2.25", or 3" Core Roll Laminate - 1.5-10mil Thick & Up to 65" Wide
Mounting Board - Up to 1/2" Thick - Shipping Dimension: 83” x 27” x 34”
- Net Weight: 360 lbs.
- Gross Weight: 480 lbs.
- Warranty: 1 Year Manufacturer's Warranty
Specifications
- Can laminate materials ranging from 1.5 to 10 mil at speeds of up to 10 feet per minute.
- Offers a generous laminating width of 65 inches.
- Able to mount materials up to 1/2 inch thick.
- Accommodates core sizes of 1 inch, 2.25 inches, and 3 inches.
- It is equipped with two programmable temperature settings for versatile use.
- Includes a convenient take-up bar specifically designed for cold lamination.
- Features a run/stop switch with a reverse function for added control.
- Incorporates safety sensors on both the tray and shield to ensure safe operation.
- Provides a bottom roller on/off switch for enhanced user convenience.
- Built-in trimmers facilitate efficient trimming of laminated materials.
- Cooling fans help maintain optimal operating temperature.
- Emergency stop knob allows for immediate halting of operations in case of emergencies.
Compare to Similar Tamerica Hot & Cold Roll Laminators
| Model Name | Tamerica TCC-2700XM | Tamerica Versalam-1300 | Tamerica Versalam 2700-HC | Tamerica TCC-1200HC | Tamerica TCC1200 | Tamerica TCC1655-HC |
|---|---|---|---|---|---|---|
| Model |  |
 |
 |
 |
 |
 |
| Lamination Thickness | 1.5 - 10 mil | 1.5 - 10 mil | 1.5 - 10 mil | 1.5 - 10 mil | 1.5 - 10 mil | 1.5 - 10 mil |
| Lamination Speed | 8.8 fpm | 8.8 fpm | 4 fpm | 13 fpm | 4 fpm | 4 fpm |
| Laminating Width | 27" | 13" | 27" | 45" | 45" | 65" |
| Warm Up Time | N/A | N/A | N/A | N/A | N/A | 25min |
| Heating System | 1-Side and 2-Side laminating | 1-Side and 2-Side laminating | 1-Side and 2-Side laminating | N/A | 1-Side and 2-Side laminating | Heated Rollers |
| Speed Control | Yes | Yes | Yes | N/A | Yes | Yes |
| Temperature Control | Yes | Yes | Yes | Yes | Yes | Yes |
| Roller Adjustment | Yes | Yes | Yes | Yes | Yes | Yes |
| Mounting Capability | up to 1/4" | up to 1/4" | up to 1/4" | up to 1/2" | up to 1/2" | up to 1/2" |
| Reverse Function | Yes | Yes | Yes | Yes | Yes | Yes |
| Core Size | 1" | 1" and 3" | 1" and 3" | 1” - 2.25” and 3” | 1" and 3" | 1” - 2.25” and 3” |
| Dimensions | 48" x 19" x 18" | 34" x 24" x 18" | 51" x 27" x 24" | 62" x 45" x 27" | 66" x 27" x 52" | 83" x 27" x 34" |
| Power Consumption | 115V/60Hz/1600W | 115V/60Hz/1600W | 115V/60Hz/1600W | 220V/50Hz/3000W | 220V/50Hz/3000W | 220V/50Hz/3000W |
| Warranty | 1 Year Manufacturer's Warranty | 1 Year Manufacturer's Warranty | 1 Year Manufacturer's Warranty | 1 Year Manufacturer's Warranty | 1 Year Manufacturer's Warranty | 1 Year Manufacturer's Warranty |
