Product Description

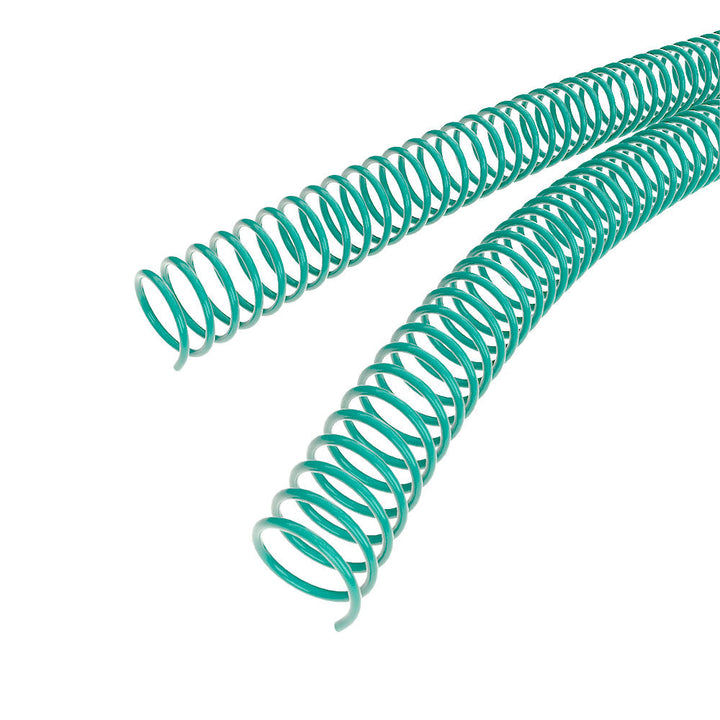

These teal spiral binding coils are designed for use in any 4:1 pitch spiral coil binding machine. Made from the highest quality food grade PVC plastic our ColorCoil offers a quality, professional look while binding documents up to 2" thick. Although these particular coils are teal, we carry 4:1 pitch coil in 45 different colors and in sizes up to 50mm in diameter. Plus, all of our teal binding coils are CPSIA and ROHS compliant and are made in either Canada or the USA (not China). Please note that most of our teal 4:1 pitch coil is made to order, is non-returnable and can take an extra 3 - 5 business days to ship. If you need this product in a hurry please give us a call for options before ordering.
Specifications
- Product Type: Coil Binding Spines
- Color: Teal
- Diameter: 6mm - 50mm
- Pitch: 4:1 (4 Holes Per Inch)
- Approximate Capacity: 30 - 440 Sheets (20# Bond)
- Length: 12" Letter (or choose other length)
- PMS Color: 3282C
- Quantity: 100pk
Coil Sizing Guide
| Coil Diameter | Part Number | Fractional Equivalent (approx.) | Maximum Thickness of Document including Covers | Sheet Capcity (20# Bond) |
| 6mm | P4TE0612 | 1/4" | 4mm - 5/32" | 30 |
| 7mm | P4TE0712 | 9/32" | 5mm - 3/16" | 42 |
| 8mm | P4TE0812 | 5/16" | 6mm - 7/32" | 54 |
| 9mm | P4TE0912 | 11/32" | 7mm - 1/4" | 65 |
| 10mm | P4TE1012 | 3/8" | 8mm - 5/16" | 75 |
| 11mm | P4TE1112 | 7/16" | 9mm - 11/32" | 85 |
| 12mm | P4TE1212 | 15/32" | 10mm - 3/8" | 92 |
| 13mm | P4TE1312 | 1/2" | 11mm - 13/32" | 105 |
| 14mm | P4TE1412 | 9/16" | 12mm - 7/16" | 115 |
| 15mm | P4TE1512 | 19/32" | 13mm - 1/2" | 125 |
| 16mm | P4TE1612 | 5/8" | 14mm - 17/32" | 135 |
| 17mm | P4TE1712 | 21/32" | 15mm - 9/16" | 142 |
| 18mm | P4TE1812 | 11/16" | 16mm - 5/8" | 155 |
| 19mm | P4TE1912 | 23/32" | 17mm - 11/16" | 160 |
| 20mm | P4TE2012 | 3/4" | 18mm - 23/32" | 172 |
| 22mm | P4TE2212 | 7/8" | 20mm - 3/4" | 190 |
| 23mm | P4TE2312 | 15/16" | 21mm - 27/32" | 200 |
| 25mm | P4TE2512 | 1" | 22mm - 7/8" | 220 |
| 28mm | P4TE2812 | 1-1/8" | 25mm - 1" | 250 |
| 30mm | P4TE3012 | 1-3/16" | 27mm - 1 1/16" | 270 |
| 32mm | P4TE3212 | 1-1/4" | 29mm - 1 1/8" | 280 |
| 35mm | P4TE3512 | 1-3/8" | 32mm - 1 1/4" | 310 |
| 38mm | P4TE3812 | 1-1/2" | 34mm - 1 5/16" | 330 |
| 42mm | P4TE4212 | 1-11/16" | 38mm - 1 1/2" | 350 |
| 45mm | P4TE4512 | 1-3/4" | 41mm - 1 5/8" | 390 |
| 50mm | P4TE5012 | 2" | 46mm - 1 13/16" | 440 |
Video
Everything There Is To Know About Spiral Coil Video
Transcript :
