Product Description

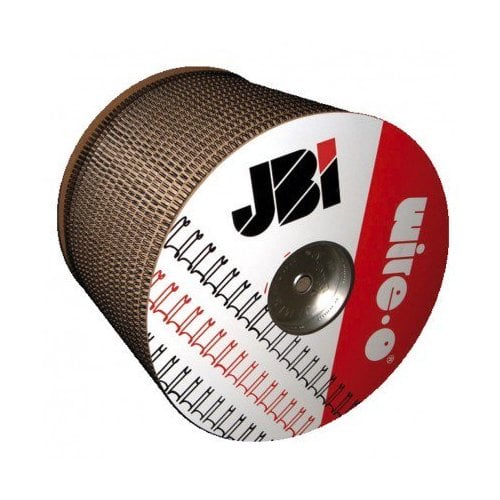

This Wire-O 5/16" Black 3:1 Pitch Double Loop Ring Wire Spool has a sleek, high-quality metal finish, and it comes in a wide range of convenient spool sizes. The maximum thickness of a book it can bind is 1/8", which is approximate to 11-25 sheets of 20 lb paper. This twin-loop automated wire binding spool is the perfect fit for your machine. You may already know that your automated machine might experience various issues if you utilize certain spool wires. This James Burn-made Wire-O wire spool is a good option for avoiding the stretching issues that often arise when using less expensive imported wires. This spool of 3:1 twin-loop wire binding is available in many different sizes and colors. The pitch can also be changed to a 2:1 ratio. Below is a sheet capacity table that will help you choose the best diameter for your project depending on the thickness of your books. To many, the Wire-O 5/16" Black 3:1 Pitch Double Loop Ring Wire Spool is on par with or perhaps superior to the Twin Loop Wire Binding Spools sold by Renz and GBC. Wire binding spools come in many shapes, sizes, and colors. Black, white, silver, pewter, blue, green, and other professional hues are available for your first color choice. Next, figure out what size wire you need. If you need help deciding what diameter to use for your project, the capacity table provided below can give you some ideas based on the thickness of your books. According to the size you select, the pitch will be set automatically. Smaller sizes, from 1/4 inch to 9/16 inch, don't have a 3:1 pitch like the larger ones (5/8 inch to 1-1/4 inch). Need the wire trimmed to size? Yes, no problem! Visit our custom wire page for more details on our wire binding spines.Product Details
- Color: Black
- Pitch: 3:1 Pitch (3 Holes per Inch)
- Length: 90,000 Loops
- Diameter: 1/4"
- Approximate Capacity: 40 Sheets (20lb Paper)
- Quantity: 1 Spool
- Renz Equivalent SKU: RZ140BKSP
- GBC Equivalent SKU: 9910014BK
- Part Number: 91JB14SPLBLK
Binding Capacity Chart
Twin loop wire binding can be properly fitted with a few easy procedures.
- Lay the book that is being bound flat on a table.
- Measure the binding edge's thickness without compressing the paper.
- The binding element's size will be determined by adding 1/8" to the measurement.
| Wire Diameter | Pitch (Holes per Inch) | Sheet Capacity¹ | Book Thickness | Loops / Spool |
|---|---|---|---|---|
| 1/4" | 3:1 | 11-25 Sheets | 1/8" | 90,000 |
| 5/16" | 3:1 | 26-45 Sheets | 3/16" | 60,000 |
| 3/8" | 3:1 | 46-65 Sheets | 1/4" | 47,000 |
| 7/16" | 3:1 | 66-80 Sheets | 5/16" | 32,000 |
| 1/2" | 3:1 | 81-100 Sheets | 3/8" | 26,750 |
| 9/16" | 3:1 | 101-120 Sheets | 7/16" | 22,000 |
| 5/8" | 2:1 | 121-145 Sheets | 1/2" | 11,000 |
| 3/4" | 2:1 | 146-165 Sheets | 5/8" | 8,150 |
| 7/8" | 2:1 | 166-185 Sheets | 3/4" | 5,150 or 6,100 |
| 1" | 2:1 | 186-210 Sheets | 7/8" | 4,600 |
| 1 ⅛" | 2:1 | 211-235 Sheets | 1" | 4,000 |
| 1 ¼" | 2:1 | 236-260 Sheets | 1 ⅛" | 2,900 |
Wire-O binding, the go-to option for professionals of all stripes, provides a tidy, polished appearance that may be found on diaries, notebooks, conferences, guides, and much more. When compared to plastic bindings, the elegant metal finish appears more expensive, so you can be sure to amaze your consumers. They are designed to function with the wide range of automatic and industrial binding machines available today. Twin loop spools provide a very quick and practical way to bind lots of wire-bound books when used with these machines.
¹ Sheet capacity is an approximation using 20 lb. bond copy paper. It will vary depending on the stock used.
