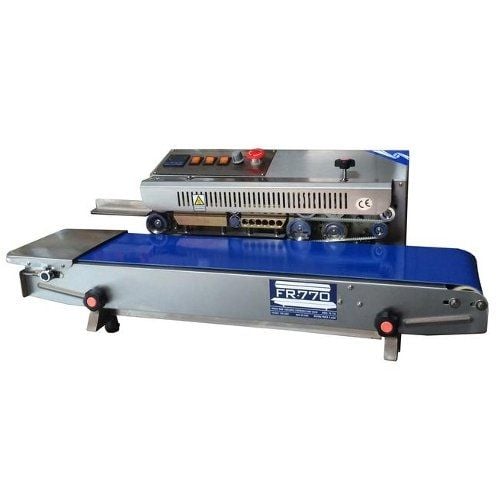

SealerSales FR-770I Horizontal Continuous Band Sealer (Left Feed)
900.09
NewCondition
InStock
SealerSales FR-770I Horizontal Continuous Band Sealer (Left Feed)
SWIPE FOR MORE IMAGES
- 0
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
Product Description
This SealerSales FR-770I Horizontal Continuous Left Feed Band Sealer is suitable for sealing any thermoplastic materials and bags. This sealer can seal 20-30 pcs of 6" wide poly bags in one minute. Optional embossing wheel allows operator to include a message on the seal line of the bag. Can be used in a variety of fields such as the food, medical, and cosmetic industries.
Product Details
- Durable stainless steel.
- Easy to operate - minimal operator training.
- Fast warm up time.
- Seals any thermoplastic material including PE, PP, and laminates.
- Solid state digital temperature controller to maintain seal bars at proper temperature for consistent seal quality.
- Fully adjustable conveyor.
- Motorized rubber conveyor with speed control.
- Knurled pressure rolls with variable pressure adjustment.
- One pair each of cooling and heating blocks.
- Sealing method - constant/direct heat.
- Unit feeds left to right.
- Equipped with an emergency stop.
- Optional embossing attachment allows for printing on seal line w/o ink.
- Option: vertical configuration band sealer available - FR-770II.
- Spare parts include: PC Board, PTFE belt, wheel belt, tools, and type set.
Item Specifications
- Power: 110V/60Hz
- Motor Power: 50W
- Sealing Speed: 0-472 Inches/Minute
- Seal Width: 8mm
- Temperature Range: 0-300°C
- Conveyor Size: 38" x 7"
- Single Conveyor Load: 2.2 lbs.
- Bag Size (Filled) - Vertical Unit: Minimum - 7.8" / Maximum - 12"
- Character Size: 3 x 4 x 9mm / 18PT
- Optional Embossing: 1 Line Embossing (2 Lines Available) 3 Sections w/ 15 Character/Line
- Dimensions: 33" x 17" x 13" (Horizontal) / 33" x 17" x 22" (Vertical)
Demonstration Video
FR-770 - Horizontal Stainless Steel Band Sealer Features
Transcript:
FEATURES
.Fast warm-up time
.Durable stainless steel
.Easy to operate
.Unit feeds left to right
.Included optional pressure embossing coder at the seal line
Turn on the power, heat, and fan. Set the desired temperature. Place the bag through sealing guide and voila! Emergency stop allows you to stop the sealer. Twist and release emergency stop to begin sealer again. Fr-700 produce a beautiful 8mm seal with an optional embossed message at seal line.
.Fast warm-up time
.Durable stainless steel
.Easy to operate
.Unit feeds left to right
.Included optional pressure embossing coder at the seal line
Turn on the power, heat, and fan. Set the desired temperature. Place the bag through sealing guide and voila! Emergency stop allows you to stop the sealer. Twist and release emergency stop to begin sealer again. Fr-700 produce a beautiful 8mm seal with an optional embossed message at seal line.
FEATURES
.Fast warm-up time
.Durable stainless steel
.Easy to operate
.Unit feeds left to right
.Included optional pressure embossing coder at the seal line
Turn on the power, heat, and fan. Set the desired temperature. Place the bag through sealing guide and voila! Emergency stop allows you to stop the sealer. Twist and release emergency stop to begin sealer again. Fr-700 produce a beautiful 8mm seal with an optional embossed message at seal line.
