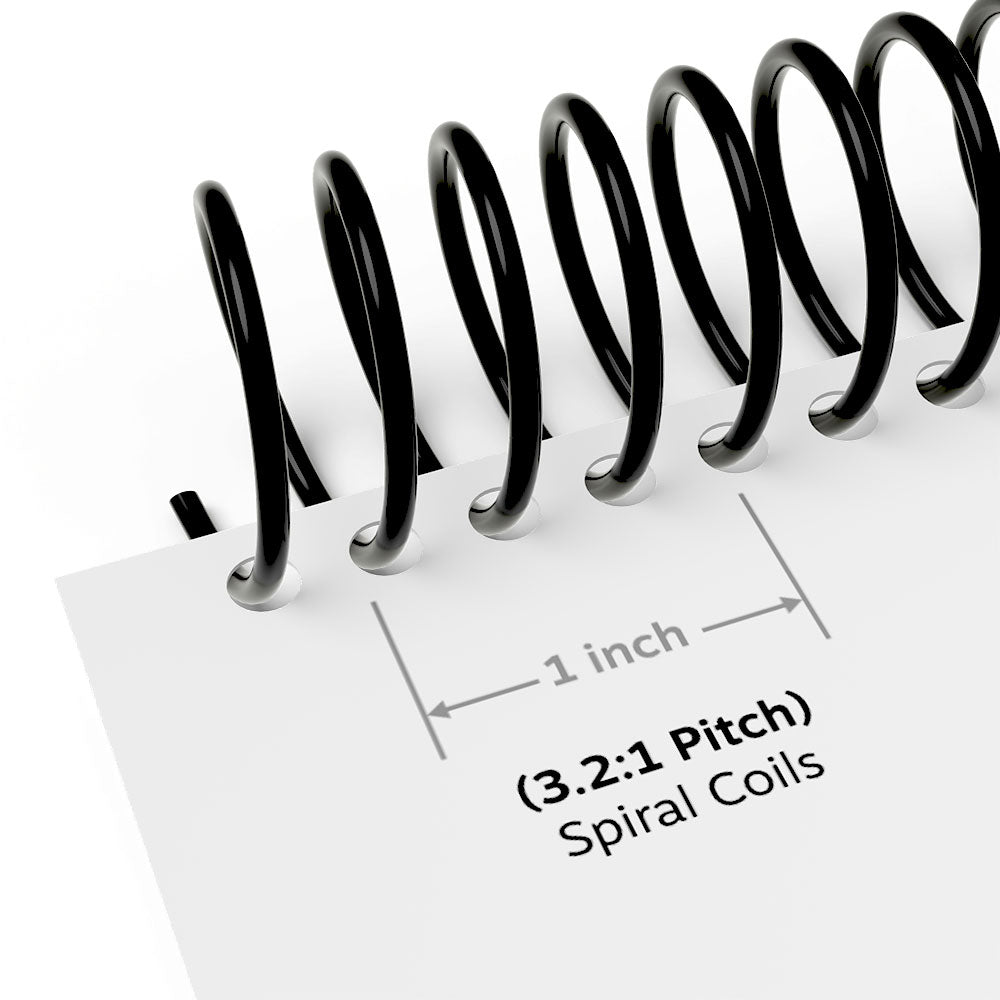

3.2:1 Spiral Coil Binding Supplies

Measure the complete stack at the punched edge with covers, tabs, and inserts included. Select a diameter slightly larger than that measurement so the sheets move freely without leaving excessive space around the spine. Capacity charts based on standard paper provide only an estimate because cardstock, coated sheets, and laminated inserts increase bulk. Bind the thickest version of the document as a sample before ordering a larger quantity. If the contents pull against the holes or resist turning, move to a larger diameter. If the spine feels loose and the contents shift, a smaller option may provide a neater fit. Confirm the 3.2:1 pitch first because a correct diameter cannot compensate for incompatible hole spacing.

The 44-hole coil pre-punched paper can suit a letter size workflow when its hole spacing, hole shape, and binding edge match the 3.2:1 coil system being used. Verify the exact specification rather than relying only on the hole count, since different punching methods can produce similar totals. Printing equipment must also support the paper weight and feed the punched edge reliably. Run a small duplex test to confirm orientation, registration, and inner margins before printing the full job. Covers, tabs, and specialty inserts may still need separate punching. Pre-punched stock is most useful when repeated documents share the same size and pattern and the printing process handles the holes consistently.

Yes, provided the coil length and punching equipment support the intended binding edge. Longer documents need a coil that passes through every hole with a small amount left at both ends for trimming and crimping. The punch must also handle the full edge, either through a sufficiently wide throat or a repeatable multi-step punching method. Disengageable pins help prevent partial holes near custom edges. Prepare a full-size test before production because small alignment errors can become obvious across a long binding edge. Diameter should still be selected from the document thickness, while length follows the punched edge. Do not stretch a shorter coil to reach an oversized document because the pitch will change and the binding may fail.

A modular system can accept a dedicated die for a specific hole pattern, allowing one punching platform to support several binding methods. The available modular punches may suit operations that process 3.2:1 coil alongside more common pitches, provided a matching die is available. Verify the die name, hole shape, pitch, punching width, and sheet capacity before ordering. Similar numerical descriptions do not guarantee compatibility with the intended coil. A removable die can also simplify maintenance and make future workflow changes easier. Produce a test strip after installing or changing the die, then thread the actual coil through it. Smooth insertion across the full edge confirms that the punch and supply are aligned correctly.
