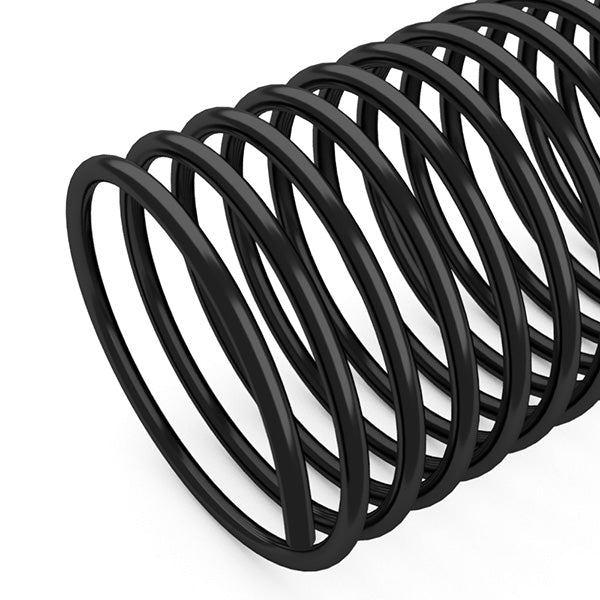

40mm Spiral Binding Coils

Large diameter coils need more support during insertion because the document is heavier and the coil has a wider curve. Square the punched stack carefully, begin the coil by hand through the first few holes, and keep the spine edge level as the coil advances. An electric roller from the coil binding machines range can reduce effort, but the operator still needs to guide the document so the coil does not skip holes or stretch. Thick stacks may be easier to control when placed on a flat surface with the spine edge slightly raised. Do not pull the coil through by force if it catches. Stop, back it out gently, realign the holes, and continue. A correctly matched pitch and clean punch pattern make insertion much smoother.

Crimping cuts away excess coil and bends each end inward so the spine cannot unwind from the document. Large coils need enough tail for the crimper to grip, but leaving too much material creates sharp projections and an untidy finish. Tools from the coil binding crimpers range are designed to cut and form the end in one motion. Hold the crimper in the correct orientation, complete one end, turn the document over, and finish the opposite side. The bent ends should face inward without pressing against the first or last sheet. Test the technique on a spare coil before finishing an important document, since an incorrect angle can cut the coil without forming a secure lock.

Thick coil bound documents benefit from covers that protect the outer sheets without making the punched edge excessively rigid. A clear poly front can display a printed title, while a sturdy paper, poly, or chipboard back adds support. The cover material must be punchable with the same hole pattern as the text block, and the punch margin should leave enough material around every hole. A very thick board may need to be ordered prepunched because forcing it through a desktop punch can damage the dies or produce incomplete holes. Include both covers when measuring the stack for coil size. Rounded cover corners can reduce snagging, and a back cover with moderate stiffness makes a heavy manual easier to handle on a desk.

Pitch describes the number of holes and coil turns per inch, and the punch pattern must match the spine exactly. Diameter alone does not identify pitch, so a 40mm coil should never be ordered from size without confirming the hole spacing. Count the holes across a known sheet, measure the center spacing on a punched sample, or use the punch specification. The spiral coil supplies by pitch categories separate compatible formats, but the machine specification remains the final reference. A mismatch cannot be corrected by stretching or compressing the coil because the turns will not align with the holes. Keep a labeled sample near the binding station when several punch systems are used in the same workplace.
