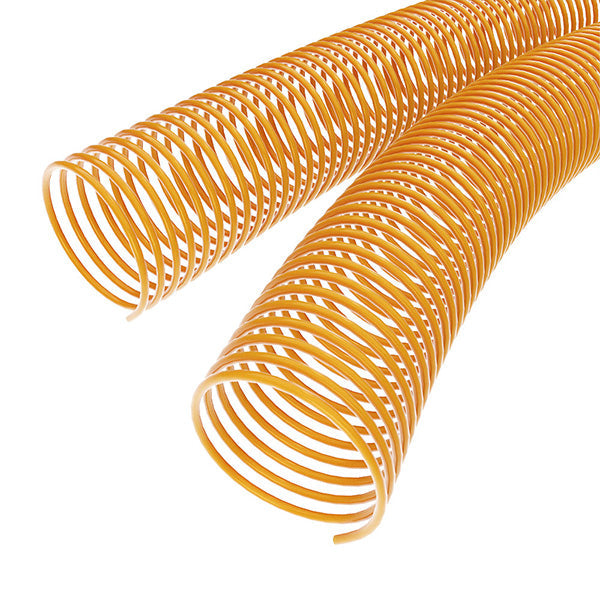

Golden Yellow Spiral Binding Coils

Pitch must match the hole pattern produced by the binding machine. A 4:1 pitch coil is designed for four holes per inch and will not feed properly through paper punched for another spacing. Some coil systems use 3:1, 3.2:1, 5:1, or other patterns. Confirm the pitch from the machine manual, die label, or a correctly bound sample. Hole shape and document length should also be verified. Do not order by color and diameter alone, because the correct shade cannot compensate for an incompatible hole pattern. Keep the pitch recorded with recurring job details to prevent future supply errors.

The coil should extend slightly beyond both ends of the punched edge so it can be cut and crimped securely. Standard letter-size documents often use a coil longer than the 11-inch binding edge, while half-size, legal, landscape, and oversized work need different lengths. Long coils may be cut down when the pitch and diameter are correct, but this can create waste on repeated short jobs. For production involving several document sizes, spiral coil binding supplies by length provide formats intended for standard, extended, and custom cutting requirements.

Crimping bends the cut end inward so the coil cannot rotate out of the punched document during handling. Simply cutting the coil leaves a straight end that may gradually work its way through the holes. Both ends should be trimmed to a suitable length and crimped with the correct tool. The crimp should face inward without catching pages. Test the finished document by turning pages fully and folding the book back on itself. Poor crimping can allow the coil to unwind, while excessive trimming may leave too little material to form a secure bend.

The machine must produce the correct pitch and accommodate the document width, paper thickness, and cover materials. Adjustable edge guides support consistent hole placement, while disengageable pins can help with non-standard lengths. An electric inserter speeds up production for repeated jobs, though manual insertion may be sufficient for short runs. Crimping remains necessary after insertion. Facilities processing several coil sizes may benefit from equipment with adjustable rollers and clear setup controls. The range of coil binding machines includes manual and electric formats for different production volumes.
