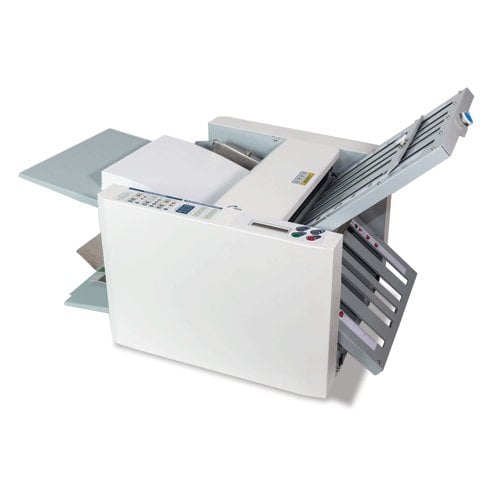

Formax FD 324 Tabletop Document Folder

Name: Formax FD 324 Tabletop Document Folder
Brand: Formax
SKU: FD-324

$2,605.50

Price Match Guarantee*

Quantity

Need Shopping Advice?
Call - (800)944-4573

Item# FD-324

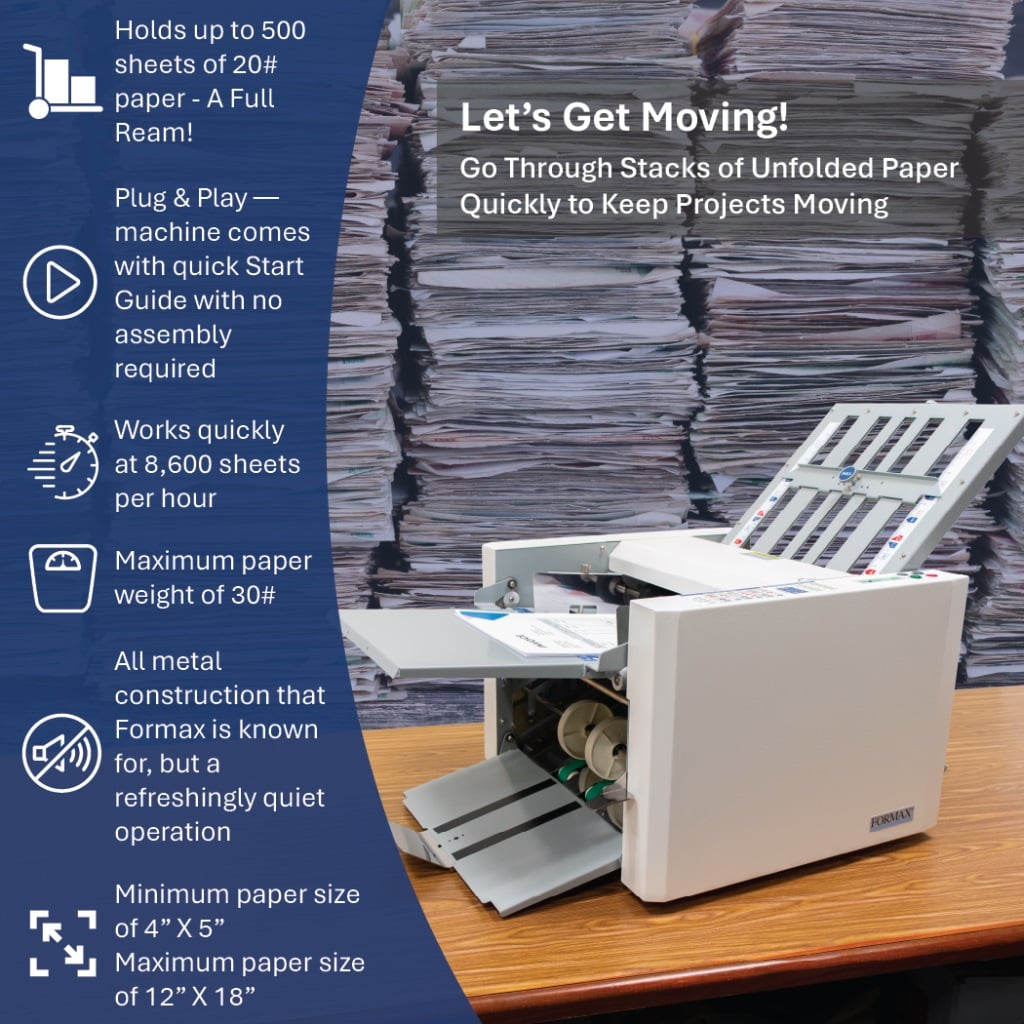

Folds up to 8,600 sheets per hour on a heavy-duty all-metal frame
Takes sheets from 4" x 5" up to 12" x 18" in paper up to 30 lb (112 gsm)
4 pre-marked folds (letter, zig-zag, half, double parallel) with quick-release stops
Drop-in friction feed holds 500 sheets with no fanning, plus AutoBatch and a counter

Product Description

The FD 324 Document Folder delivers strong performance and value, processing up to 8,600 sheets per hour in 11”, 14”, and 17” paper sizes. It features removable top and bottom fold plates for quick setup, clearly marked for four common folds: Letter, Zig-Zag, Double Parallel, and Half. A drop-in feed system eliminates the need to fan paper simply load the stack and go. The LCD control panel includes a 3-digit resettable counter and AutoBatch mode for folding in manageable sets. Designed with durability in mind, the FD 324 includes a heavy-duty steel frame, high-impact covers, a three-tire friction feed system, skew adjustment for precise alignment, and an output conveyor with adjustable stacker wheels for neat, sequential stacking. Ideal for schools, churches, and offices that need fast, accurate folding with minimal adjustments.

Product Details

Fast Setup: Quick, easy configuration for any job.

High-Speed Folding: Processes up to 8,600 pieces per hour.

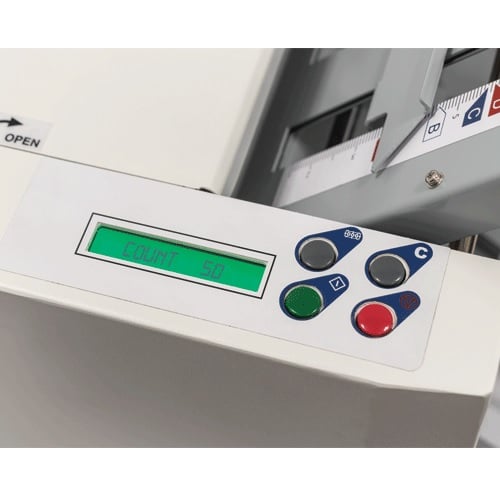

LCD Control Panel: Includes a resettable counter for accurate tracking.

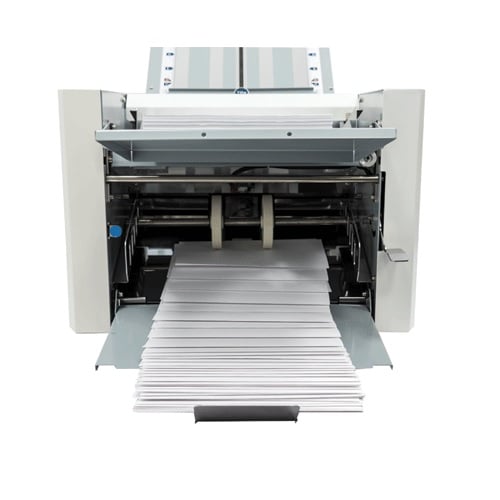

Output Conveyor: Adjustable stacker wheels ensure neat, organized stacking.

Three-Tier Drop-In Feed System: Stable feeding for consistent folds.

Wide Paper Compatibility: Handles sizes up to 12” x 18”.

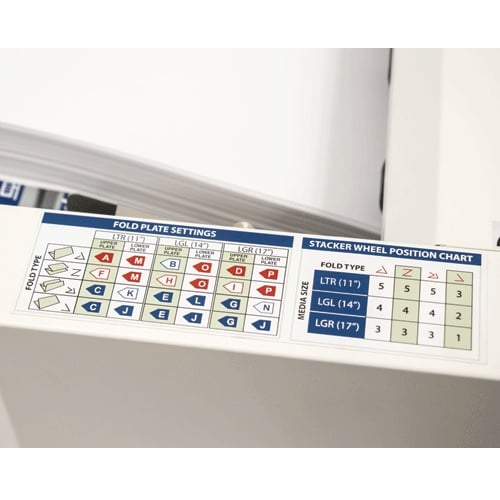

Graphic Fold Guide: Intuitive visuals simplify fold selection.

Pre-Marked Fold Types: Includes 4 standard folds.

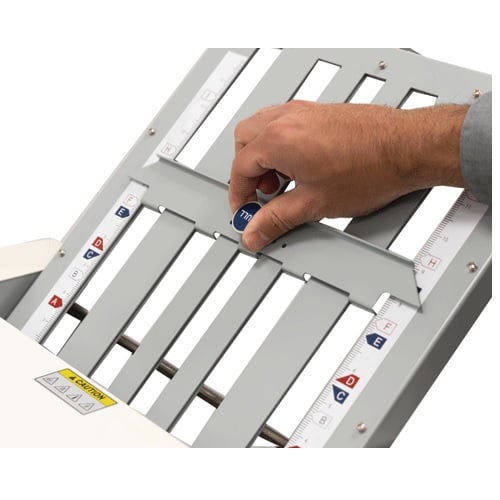

Quick-Release Fold Stops: Fast changeover between jobs.

AutoBatch Function: Automates batching for improved workflow.

Fine-Tuning Knobs: Allows precise fold adjustments.

Durable Build: Rugged all-metal construction.

Skew Adjustment: Ensures accurate sheet alignment.

Specifications

Speed: Up to 8,600 sheets per hour

Hopper Capacity: Up to 500 sheets 20#

Pre-Marked Folds: Letter, Zig-Zag, Half, Double Parallel

Paper Sizes:

Min: 4” W x 5” L (101 x 127mm)
Max: 12” W x 18” L (305 x 457mm)

Dimensions: 33” L x 18.5” W x 18” H (838 x 470 x 457mm)

Weight: 75 lbs (34kg)

Power: 120VAC 60Hz

Safety Certifications: CE approved

Spiral / Binding101 Part Number: 04FXFD324

Compare to Similar Paper Folders

Model Name

Model

Speed

Hopper Capacity

Pre-Set Folds

Paper Sizes

Paper Weight

Dimensions

Weight

Power

Safety Certifications

Warranty
FD 300

Up to 7400 sheets per hour

Up to 200 sheets 20#

Letter "C", Accordion "Z", Half "V", Double Parallel folds

Up to 8.5'' W x 14" L

N/A

24" L x 14" W x 16.5" H

25 lbs

120V AC, 60Hz

N/A

90 day limited warranty on parts. Excluding wearables and labor.
FD 314

Up to 7,700 sheets per hour

Up to 250 sheets 20#

C, Z, V, Double Parallel

Min: 4" W x 5" L or Max: 8.5’’ W x 14" L

N/A

24" L x 14" W x 17" H

N/A

120VAC 60 Hz

CE Approved

90 day limited warranty on parts. Excluding wearables and labor.
FD 324

Up to 8,600 sheets per hour

Up to 500 sheets 20# (75gsm)

Letter, Zig-Zag, Half, Double Parallel

Min: 4" W x 5" L / Max: 12' W x 18" L

Up to 30# (112gsm)

33" L x 18.5" W x 22" H

75 lbs (25kg)

120V AC 60 Hz

CE Approved

90 day limited warranty on parts. Excluding wearables and labor.

Video

Formax FD 324 Desktop Document Folder Video

Transcript :

Formax presents the FD 324 Desktop Document Folder. The FD 324 is an economical large format folder ideal for any small organization with folding needs. The FD 324 folds documents at speeds of up to 8,600 sheets per hour and can process paper up to 18 inches long by 12 inches wide. Its easy load, drop-in feed system has a capacity of up to 500 sheets, reducing the frequency of reloading. The FD 324 completes folding tasks in no time and features three feed tires for accurate consistent feeding. The FD 324 is pre marked with common fold settings; an 11 inch, 14-inch, and 17-inch sizes. It features a belt driven conveyor stacker without feed wheels to keep folded documents in neat sequential order. Fold set up and out feed wheel charts are conveniently located on the operator side cover to identify where each fold plate should be set and where the stacker wheels should be positioned. These charts remove any guesswork. The FD 324 also includes a three-digit counter to keep track of the number of sheets folded the Auto Batch Mode allows for a set number of sheets to be folded with a pause in between sets for effortless handling. The FD 324 is easy to set up right out of the box, simply set the folder on a level sturdy surface, lower the catch tray, open the feed table extension and insert the fold plates. Next, set the fold plates using the full chart mentioned earlier. Adjust the out-feed stacker wheels with the help of the decal and then load the documents to be folded, and press Start. In no time, the documents will have crisp accurate folds ready for further processing. The FD 324 is constructed with a heavy-duty steel frame and metal side covers for durability. Designed with ease of operation in mind, the Formax FD 324 offers an unmatched level of performance and affordability, making it ideal for small businesses churches and schools.
