Formax FD 314 Office Desktop Folder

Name: Formax FD 314 Office Desktop Folder
Brand: Formax
SKU: FD314

$1,618.75

Quantity

Need Shopping Advice?
Call - (800)944-4573

Item# FD314

Folds up to 7,700 sheets per hour with simple push-button operation
Takes sheets from 4" x 5" up to 8.5" x 14", pre-marked for 11" and 14" lengths
4 pre-marked fold settings for C, Z, half and double parallel folds
Drop-in top feed holds 250 sheets with no fanning, plus AutoBatch and a counter

Product Description

The Formax FD 314 Office Desktop Folder replaces the FD 312 and features a user-friendly design and rugged construction, providing an economical solution for low-volume folding projects. The compact size and simple out-of-the-box operation make it the ideal solution for churches, schools, and offices that demand quick and easy set-up with minimal adjustment. It also offers intuitive features for low-volume customers. Check out the Formax FD 314 Office Desktop Folder on MyBinding.com today and save. Part Number is FD314.

Product Details

Compact size is ideal for low-volume applications

Quick set-up right out of the box, with simple push-button operation

Pre-Marked for four popular folds: C, Z, Half and Double Parallel in 11” and 14” lengths

Folds up to 7,700 sheets per hour

Paper Sizes: Up to 8.5” x 14”

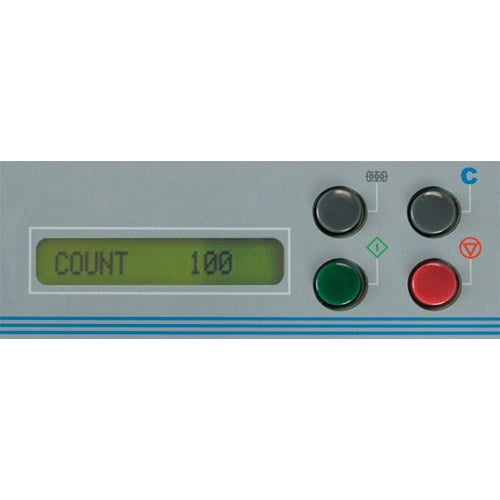

LCD control panel with 3-digit resettable counter

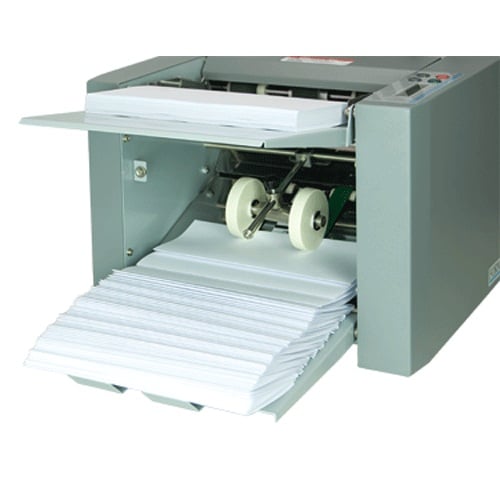

Output conveyor for neat and sequential stacking

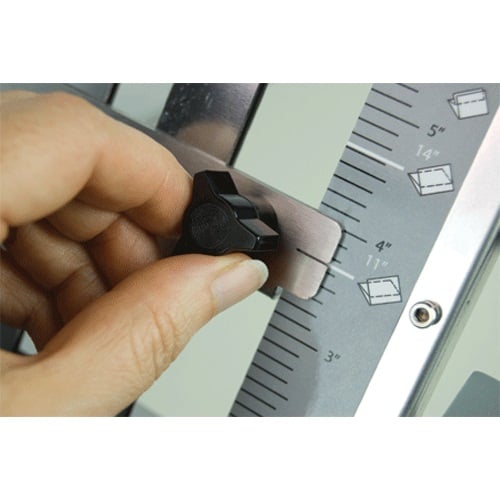

Clearly marked fold settings: Switch between fold types quickly and easily

Drop-in top-feed system: Simply square the paper and load it in the feed tray, no fanning required

Hopper capacity: Up to 250 sheets at a time

AutoBatch: Processes a pre-set number of sheets with pauses between

Specifications

Hopper Capacity: Up to 250 sheets 20#

Speed: Up to 7,700 sheets per hour

Paper Size: Min: 4" W x 5" L or Max: 8.5"" W x 14" L

Fold Types: C, Z, V, Double Parallel

Dimensions: 24" L x 14" W x 17" H

Power: 120V AC, 60Hz

Safety Certifications: CE Approved

Manufacturer's Warranty:

90 day limited Manufacturer's Warranty on parts.
Excluding wearables and labor.

Part Number: FD314

Spiral / Binding101 Part Number: 04FXFD314

Compare to Similar Paper Folders

Model Name

Model

Speed

Hopper Capacity

Pre-Set Folds

Paper Sizes

Paper Weight

Dimensions

Weight

Power

Safety Certifications

Warranty
FD 300

Up to 7400 sheets per hour

Up to 200 sheets 20#

Letter "C", Accordion "Z", Half "V", Double Parallel folds

Up to 8.5'' W x 14" L

N/A

24" L x 14" W x 16.5" H

25 lbs

120V AC, 60Hz

N/A

90 day limited warranty on parts. Excluding wearables and labor.
FD 314

Up to 7,700 sheets per hour

Up to 250 sheets 20#

C, Z, V, Double Parallel

Min: 4" W x 5" L or Max: 8.5’’ W x 14" L

N/A

24" L x 14" W x 17" H

N/A

120VAC 60 Hz

CE Approved

90 day limited warranty on parts. Excluding wearables and labor.
FD 324

Up to 8,600 sheets per hour

Up to 500 sheets 20# (75gsm)

Letter, Zig-Zag, Half, Double Parallel

Min: 4" W x 5" L / Max: 12' W x 18" L

Up to 30# (112gsm)

33" L x 18.5" W x 22" H

75 lbs (25kg)

120V AC 60 Hz

N/A

90 day limited warranty on parts. Excluding wearables and labor.

Video

Formax FD 314 Tabletop Document Folder Demo Video

Transcript :

Formax presents the FD 314 Tabletop Document Folder. Eliminate the tedious task of folding by hand. The FD 314 is an easy to use, space saving document folder ideal for small businesses, churches, schools, or any small organization or department with folding needs. This rugged compact folder can fold documents up to 14š in length and up to 8 ½š wide. At speeds of up to 7,700 sheets per hour, the FD 314 completes daily folding tasks in no time. The FD 314 comes pre-marked with fold settings for 4 standard fold types in both 11š and 14š sizes. The fold plates are clearly marked with the fold type and paper size for quick and easy setup. The FD 314 features a belt driven stacker conveyor without feed wheels to keep folded documents in a neat and sequential order. It also includes a 3-digit counter to keep track of the number of sheets folded. The auto batch mode allows for a set number of sheets to be folded with a pause in between sets for easy handling. Simply set the number of sheets to be folded and the pause between each set and then press start. The FD 314 is easy to set up right out of the box. Simply set the folder on a level sturdy surface, lower the catch tray, open the feed table extension, and then insert the fold plates. Next set the fold plates based on the paper size and fold type. Adjust the outfeed stacker wheels and then load the documents to be folded and press start. In no time, the documents will be ready for further processing with crisp accurate folds. The FD 314 Tabletop Document Folder.
