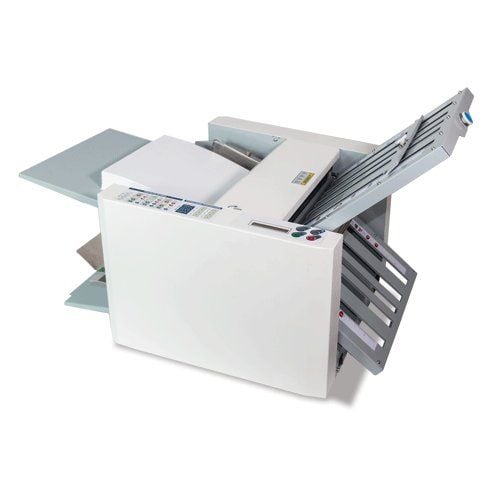

Formax FD 324 Tabletop Document Folder

Skip to the beginning of the images gallery

SWIPE FOR MORE IMAGES

Product Description

The Formax FD 324 is an economical compact document folder with unmatch level of performance. It is constructed with a heavy-duty steel frame and molded, high-impact side covers for durability. It can process up to 8,600 sheets per hour and can accommodate paper sizes up to 12" x 18". It has removable fold plates that are clearly marked with four common fold settings for Letter, Zig-Zag, Double Parallel, and Half Fold, in 11", 14" and 17" paper sizes. Its quick release fold stops and fine tune adjustment knobs always ensure crisp and accurate folds.

The FD 324 paper folder utilizes a drop-in feed system that eliminates the need to fan paper. Simply square the paper stack and load it into the feed tray. The LCD control panel features a 3-digit resettable counter and AutoBatch, allowing users to process a specific number of sheets with a pause between sets, for easy unloading. Plus, it is equipped with output conveyor that includes easily adjustable stacker wheels for neat, sequential stacking of folded pieces.

If you are looking for an affordable and easy to use and set-up paper folder, then the Formax FD 324 Tabletop Document Folder is the perfect choice for you.

Product Details

Operating Features:
- Fixed Speed: Jobs are processed quickly at speeds of up to 8,600 pieces per hour
- LCD Panel: Keeps an accurate tally of pages processed, with a resettable counter
- Output Conveyor: Adjustable stacker wheels provide neat, sequential stacking of folded documents
- Drop-In Feed System: A three-tire drop-in feed system produces dependable feeding of forms with no fanning required
- Paper Sizes: Handles paper sizes up to 12" x 18"
- Intuitive Graphic Fold Guide: Icons on the chart match those on the fold plates for easy setup
Folding Features:
- Pre-Marked with 4 Standard Folds: Letter, Zig-Zag, Half, and Double Parallel, in 11", 14" and 17" sizes
- Three-Tire Friction Feed System: Accurately pulls paper into the fold rollers
- Quick-Release Fold Stops: Simply pull the knob, slide the fold stop to the correct setting, and release
- AutoBatch: Process a specific number of sheets with a pause between sets, for easy unloading
- Fine-Tuning Knobs: Located on the end of each fold plate to allow for precise adjustments
Technical Features:
- Rugged Construction: All-metal frame and side covers for durability
- Quick, Easy Setup: Clearly marked fold settings and removable top and bottom fold plates
- Skew Adjustment: Moves feed table left or right to adjust for minor misalignments

Item Specifications

Speed: Up to 8,600 sheets per hour
Hopper Capacity: Up to 500 sheets 20# (75gsm)
Pre-Marked Folds: Letter, Zig-Zag, Half, Double Parallel
Paper Size: Min: 4" W x 5" L / Max: 12' W x 18" L
Paper Weight: Up to 30# (112gsm)
Dimensions: 33" L x 18.5" W x 22" H
Weight: 75 lbs (25kg)
Power: 120VAC 60 Hz
Safety Certifications: CE

Demonstration Video

Formax FD 324 Desktop Document Folder Video

Compare to Similar Paper Folders

Model Name

Model

Speed

Hopper Capacity

Pre-Set Folds

Paper Sizes

Paper Weight

Dimensions

Weight

Power

Safety Certifications

Warranty
FD 300

Up to 7400 sheets per hour

Up to 200 sheets 20#

Letter "C", Accordion "Z", Half "V", Double Parallel folds

Up to 8.5'' W x 14" L

N/A

24" L x 14" W x 16.5" H

25 lbs

120V AC, 60Hz

N/A

90 day limited warranty on parts. Excluding wearables and labor.
FD 314

Up to 7,700 sheets per hour

Up to 250 sheets 20#

C, Z, V, Double Parallel

Min: 4" W x 5" L or Max: 8.5’’ W x 14" L

N/A

24" L x 14" W x 17" H

N/A

120VAC 60 Hz

CE Approved

90 day limited warranty on parts. Excluding wearables and labor.
FD 324

Up to 8,600 sheets per hour

Up to 500 sheets 20# (75gsm)

Letter, Zig-Zag, Half, Double Parallel

Min: 4" W x 5" L / Max: 12' W x 18" L

Up to 30# (112gsm)

33" L x 18.5" W x 22" H

75 lbs (25kg)

120V AC 60 Hz

CE Approved

90 day limited warranty on parts. Excluding wearables and labor.
