Product Description

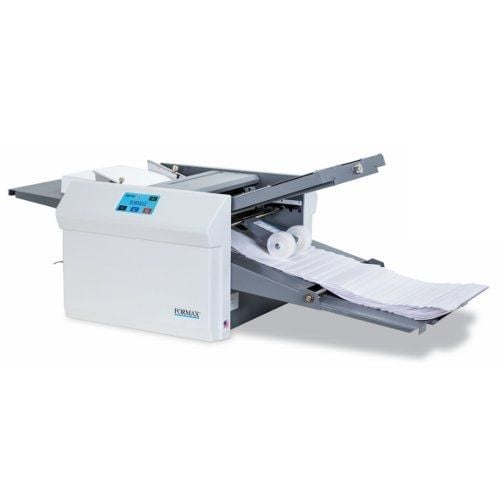

The FD 346 Document Folder is a fast, dependable, and easy-to-use solution for a wide range of folding applications. Its intuitive color touchscreen control panel uses simple, universally recognized icons for quick operation. Six popular folds are clearly marked on the fold plates just slide the fold stop into position and start folding. Fine-tune knobs allow precise adjustments for consistently crisp results. Load up to 500 sheets in the hopper, press start, and walk away the patented telescoping conveyor neatly stacks folded pieces for retrieval. Optional Multi-Sheet Feeder allows up to 4 stapled or unstapled sheets to be folded at once using a dedicated feed system with side guides and skew adjustment. The FD 346 handles paper up to 18" long and 12" wide and supports custom jobs, including cross folds using a second pass. With simple setup, versatile folding, and reliable performance, the FD 346 is ideal for churches, schools, and small businesses seeking professional results without a high cost.
Product Details
- Speed: Up to 15,500 sheets per hour – based on 11" (279mm) Z-Fold, 6 Settings
- Hopper Capacity: Up to 500 sheets 20# (75gsm)
- Pre-Marked Folds: C, V, Z, Gate, Fold Out and Double Parallel
- Pre-Marked: FD Model: 11", 14", 17"
- Paper Sizes: FE Model: A5, A4, A3, B6, B5, B4
- Paper Size:
- Min: 3.5" W x 5" L (88.9 W x 127 L mm)
- Max: 12.25" W x 18" L (311 W x 457 L mm)
- Dimensions:
- Closed: 33" L x 20" W x 19" H (84 L x 51 W x 48 H cm)
- Fully Extended: 60" L x 20" W x 19" H (152 L x 51 W x 48 H cm)
- Weight: 67 lbs (30kg)
- Power:
- FD Model: 110VAC 50/60 Hz
- E Model: 220VAC 50/60 Hz
- Option: FD 300-20 - Multi-Sheet Feeder
- Safety Certifications: UL, CUL, and CE approved
Specifications
- Color Touchscreen Control Panel: Graphics-based and designed for easy, walk-up use.
- Fast Processing: Large jobs are processed quickly at speeds of up to 15,500 pieces per hour.
- Drop-In Feed System: Three roller drop-in feed system produces dependable feeding of forms with no fanning required.
- Adjustable Stacker Wheels: Stacker wheels can be manually adjusted to neatly and sequentially stack different paper sizes and fold types.
- Telescoping Conveyor System: Conveyor can be set between 14" (356mm) and 36" (915mm) in length and holds up to 500 folded pieces.
- 6-Digit Resettable & 8-Digit Life Counters: Provide maximum audit control.
- AutoBatch Setting: Programmable to process pre-set number of sheets and stops.
- Pre-Marked for Six Standard Folds in Common Paper Sizes: Fold plates are clearly marked for 6 popular fold types in letter, legal and ledger paper sizes.
- Custom Folds: Fold plates can be easily adjusted for custom fold setup.
- Optional Dedicated Multi-Sheet Feeder: Allows for up to 4 stapled or unstapled sheets to be folded at the same time.
- Fine-Tune Adjustment: Precisely sets fold stops for crisp, accurate folds.
- Cross-Folding: A guide is included for two pass operation.
- Easy-Off Feed Wheel Shaft: Feed wheels can be changed without removing side covers.
- Quick Release Fold Stops: Fold settings are quickly and easily adjusted with the quick release system.
- Removable Roller Cover: Easily removed for improved access to fold rollers and exit area.
- Self Centering Side Guides: Guides move in and out together to help ensure documents are fed squarely.
- Paper Out & Cover Open Sensors: If the paper is out or the cover is open the folder will not run.
- Fault Detection: Folder automatically stops when a fault is detected, an LED lights up on the control panel to indicate the possible fault location.
