Model NameModelHeat / ColdLaminating WidthMaximum Speed (feet/minute)Speed ControlMaximum TemperatureHeating MethodMounting GapPressure/Gap AdjustmentPressure/Gap MechanismRoller DiameterMain RollersSupply ShaftTension AdjustmentFilm Tension SensorDigital MicrocontrollerColor Graphic DisplayTouchscreen InterfaceOperating TutorialsRoll Label PrinterWeb ClutchMotorized Liner & RewindRoll to Roll CapableRear RewindInline SlittingFront UnwindFoot PedalOptical Safety EyesStandSwing Up Feed TablePower SupplyPower ConsumptionWarranty PartsWarranty LaborInstallation & TrainingNet Weight (lbs.)DimensionsSafety Approval
-
865DH-4RSDual Heat65"13Variable266° FQuartz Tube1"InfiniteDual Hand Wheel5"SiliconeSwing Out with 3" Quick GripSingle KnobN/AN/AN/AN/AN/AN/A✔✔✔✔✔2✔✔✔✔240v 24A5760W1 year1 yearIncluded84687 x 34 x 49"cTUVus
-
663THTop Heat Assist63"20Variable140° FMetal Alloy1"InfiniteElectric5"SiliconeSwing Out with 3" Quick GripSingle Knob✔✔✔✔✔✔N/A✔✔✔✔✔✔✔✔✔120v 12A1440W1 year1 yearOptional67583 x 31 x 63"cTUVus
-
563TH-4RSTop Heat Assist63"20Variable140° FMetal Alloy1"InfiniteHand Wheel4.5"SiliconeSwing Out with 3" Quick GripSingle KnobN/AN/AN/AN/AN/AN/AN/A✔✔✔✔✔✔✔✔✔110v 12A1320W1 year1 yearOptional49187 x 26.5 x 52.5"cTUVus
-
363-THTop Heat Assist63"20Variable140° FMetal Alloy1"InfiniteHand Wheel5"Rubber3" Quick GripSingle KnobN/AN/AN/AN/AN/AN/AN/AChain Link✔✔N/A✔✔✔✔✔120v 12a1440W1 year1 yearOptional37680 x 23 x 48"cTUVus
-
355-THTop Heat Assist55"20Variable140° FMetal Alloy1"InfiniteHand Wheel5"Rubber3" Quick GripSingle KnobN/AN/AN/AN/AN/AN/AN/AChain Link✔✔N/A✔✔✔✔✔120v 11a1320W1 year1 yearOptional32172" x 23" x 48"cTUVus
-
263-CCold63"13VariableN/AN/A1"InfiniteHand Wheel4.5"Rubber3" Quick GripSingle KnobN/AN/AN/AN/AN/AN/AN/AChain LinkN/AN/AN/A✔✔✔✔Fixed110v 0.4A44W1 year1 yearOptional32280" x 24" x 55"cTUVus
-
255-CCold55"13VariableN/AN/A1"InfiniteHand Wheel4.5"Rubber3" Quick GripSingle KnobN/AN/AN/AN/AN/AN/AN/AChain LinkN/AN/AN/A✔✔✔✔Fixed110v 0.4A44W1 year1 yearOptional25773 x 24 x 55"cTUVus
-
230-CCold30"11.5VariableN/AN/A1/2"InfiniteHand Wheel2.5"Silicone1" Shaft / AdaptorsDual brakesN/AN/AN/AN/AN/AN/AN/A✔N/AN/AN/A✔✔✔✔✔110v 0.3A33W1 year1 yearOptional11743 x 17 x 42"cTUVus

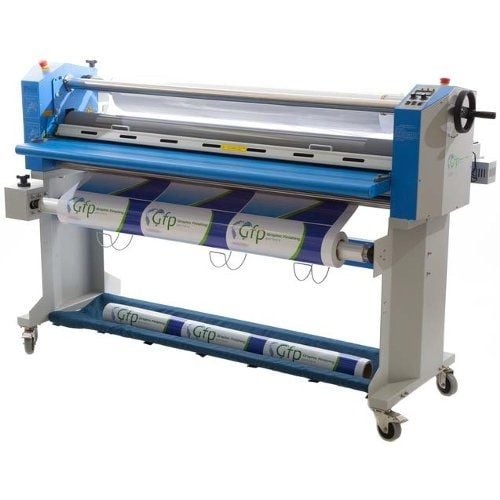

GFP 563TH-4RS 63" Top Heat Wide Format Laminator with Slitter/Rewind Motor/Swing Out Shafts
FAQ: 0 Questions, 0 Answers
0 Q&As
Item# 563TH-4RS
- 63" wide format laminator
- Compatible with film up to 10mil thick (3" core) & boards up to 1" thick
- Adjustable heat settings from 0°-122° F
- 0-240" per minute adjustable speed
Product Name
Item Number
Price
Qty
ProductDescription
The GFP 563TH-4RS has the same features of the 563TH-4R but with the added slitter. This 63" wide format top heat roll laminator is an economocal and powerful solution for your laminating, mounting and board pre-coating project. It is ideal for pressure-sensitive applications. This laminator has a 50% faster throughput, equipped with Front/Rear Swing-Out Shafts for faster roll changes, 3" Aluminum Quick-Grip shifts for easy loading, motorized rear rewind for roll-to-roll applications, and has a metal alloy heaters that contribute to its rugged design. This roll laminator can laminate materials up to 63" wide at a speed of up to 20 feet per minute. Increase your business productivity and profit with GFP 563TH-4RS 63" Top Heat Wide Format Roll Laminator.
Product Details
- Maximum Productivity: 50% faster throughput
- Fast Roll Film Changes: Front/Rear Swing-out Quick-Grip Supply Shafts
- Easy Loading: 3" Aluminum Quick-Grip shifts
- Drop-in Quick-Grip rewind shafts.
- Photoelectric eye for safety.
- Motorized rear rewind for roll-to-roll applications
- Swing-up feed table & 38" output height.
- Metal Alloy heater reduces breakage.
- 4.5" diameter rollers.
- Roller gap measurement scale.
- Feed tray safety lock.
- Includes laminator stand and slitter
- Applications: Signs, Banners, POP Displays, Trade show displays, Graphic mounting, Photo mounting, Dry-erase boards, Floor graphics, Window graphics, and Vehicle graphics
Item Specifications
- Laminating Width: 63"
- Roller Diameter: 4.5"
- Roller Gap: 1"
- Rear rewind: Yes
- Maximum temperature: 122°F
- Laminating speed: 0-20 ft/min
- Pressure adjustment: Hand Wheel
- Heat method: Metal Alloy heater
- Max. roll diameter: 8" OD (top); 16" OD (bottom)
- Supply Shafts: 2 Swing-out
- Tension Adjustment: Single knob
- Power Supply: 110v 12A
- Power Consumption: 1320W
- Foot Pedal: Included
- Stand with casters: Included
- Compatible Supplies: 3" Core Pressure Sensitive Roll Film - 1.5-10mil Thick & Up to 55" Wide
Mounting Board - Up to 1" Thick - Compatible Accessories: Dust Cover for GFP 563TH & 663TH Laminators
- Net Weight w/ stand: 502lbs.
- Dimensions: 82" x 28.5" x 50"
- Machine Shipping: 755bs.; 89.4" x 33.1" x 29.2"
- Stand Shipping: 143 lbs.; 75" x 33" x 5.8"
- Manufacturer's Warranty: One Year Parts & Labor
