Model NameModelHeat / ColdLaminating WidthMaximum Speed (feet/minute)Speed ControlMaximum TemperatureHeating MethodMounting GapPressure/Gap AdjustmentPressure/Gap MechanismRoller DiameterMain RollersSupply ShaftTension AdjustmentFilm Tension SensorDigital MicrocontrollerColor Graphic DisplayTouchscreen InterfaceOperating TutorialsRoll Label PrinterWeb ClutchMotorized Liner & RewindRoll to Roll CapableRear RewindInline SlittingFront UnwindFoot PedalOptical Safety EyesStandSwing Up Feed TablePower SupplyPower ConsumptionWarranty PartsWarranty LaborInstallation & TrainingNet Weight (lbs.)DimensionsSafety Approval
-
865DH-4RSDual Heat65"13Variable266° FQuartz Tube1"InfiniteDual Hand Wheel5"SiliconeSwing Out with 3" Quick GripSingle KnobN/AN/AN/AN/AN/AN/A✔✔✔✔✔2✔✔✔✔240v 24A5760W1 year1 yearIncluded84687 x 34 x 49"cTUVus
-
663THTop Heat Assist63"20Variable140° FMetal Alloy1"InfiniteElectric5"SiliconeSwing Out with 3" Quick GripSingle Knob✔✔✔✔✔✔N/A✔✔✔✔✔✔✔✔✔120v 12A1440W1 year1 yearOptional67583 x 31 x 63"cTUVus
-
563TH-4RSTop Heat Assist63"20Variable140° FMetal Alloy1"InfiniteHand Wheel4.5"SiliconeSwing Out with 3" Quick GripSingle KnobN/AN/AN/AN/AN/AN/AN/A✔✔✔✔✔✔✔✔✔110v 12A1320W1 year1 yearOptional49187 x 26.5 x 52.5"cTUVus
-
363-THTop Heat Assist63"20Variable140° FMetal Alloy1"InfiniteHand Wheel5"Rubber3" Quick GripSingle KnobN/AN/AN/AN/AN/AN/AN/AChain Link✔✔N/A✔✔✔✔✔120v 12a1440W1 year1 yearOptional37680 x 23 x 48"cTUVus
-
355-THTop Heat Assist55"20Variable140° FMetal Alloy1"InfiniteHand Wheel5"Rubber3" Quick GripSingle KnobN/AN/AN/AN/AN/AN/AN/AChain Link✔✔N/A✔✔✔✔✔120v 11a1320W1 year1 yearOptional32172" x 23" x 48"cTUVus
-
263-CCold63"13VariableN/AN/A1"InfiniteHand Wheel4.5"Rubber3" Quick GripSingle KnobN/AN/AN/AN/AN/AN/AN/AChain LinkN/AN/AN/A✔✔✔✔Fixed110v 0.4A44W1 year1 yearOptional32280" x 24" x 55"cTUVus
-
255-CCold55"13VariableN/AN/A1"InfiniteHand Wheel4.5"Rubber3" Quick GripSingle KnobN/AN/AN/AN/AN/AN/AN/AChain LinkN/AN/AN/A✔✔✔✔Fixed110v 0.4A44W1 year1 yearOptional25773 x 24 x 55"cTUVus
-
230-CCold30"11.5VariableN/AN/A1/2"InfiniteHand Wheel2.5"Silicone1" Shaft / AdaptorsDual brakesN/AN/AN/AN/AN/AN/AN/A✔N/AN/AN/A✔✔✔✔✔110v 0.3A33W1 year1 yearOptional11743 x 17 x 42"cTUVus

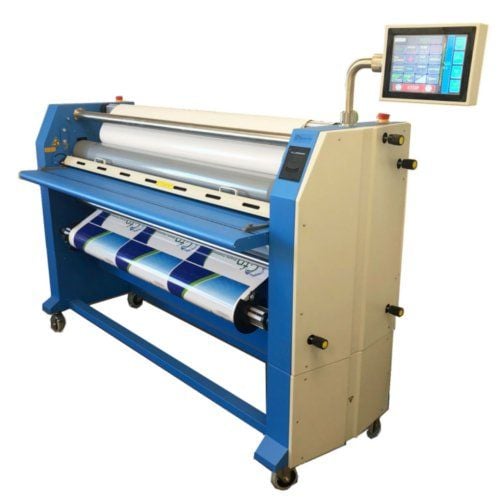

GFP 663TH 63" Top Heat Wide Format Cold Laminator with Smart Finishing Technology
12915.25
NewCondition
InStock
GFP 663TH 63" Top Heat Wide Format Cold Laminator with Smart Finishing Technology
SWIPE FOR MORE IMAGES
- 0
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
Product Name | Item Number | Price | Qty | ||
---|---|---|---|---|---|
Dust Cover for GFP 563TH & 663TH Laminators | 04GFP563TH3DC | $104.85
|
|||
GFP OEM On-Site Installation and Operator Training | 04GFPOSIOT | $1,892.41
|
Product Description
Expand your finishing expertise with GFP 663TH 63" Top Heat Wide Format Cold Laminator. This laminator is equipped with Smart Finishing Technology that is most advanced in wide format finishing. A 10” tablet style LCD display provides accessibility to all functions. The powerful digital touch screen Micro-controller uses microprocessor technology that ensures efficiency, accuracy, and reliability of the laminator. Operators can program, monitor and display all machine functions and view operator tutorials through a powerful digital touchscreen Microcontroller. Professional features include motorized integrated rear rewind offer longer uninterrupted roll-to-roll operation. Three swing out shafts make loading and unloading of rolls quick for easy setup and changeovers. Top Heat Assist reduces silvering for the best quality output and shorter processing time. To label partial roll films, a roll label printer generates pressure sensitive labels with film description and remaining footage, this feature helps operators keep track of film and supplies to aid in supply organization and also cut waste. Adding to labor-saving features, inline rotary slitters eliminate the need for trimming after lamination as it trims the sides of output during lamination. All of these features are built-in to make sure operators have all they need for high quality output and maximum productivity. Improve efficiency and boost profit with GFP 663TH 63" Top Heat Wide Format Cold Laminator!
Product Details
- OPERATIONAL DISPLAYS
- Home Screen. displays machine status and links operator to operational screens for quick, efficient access to system setup and adjustments.
- Service Displays. allow fine-tune adjustments and calibrations to operating parameters to increase efficiency and reduce waste.
- Operational Displays. provide instant access for setting and adjusting the operating parameters of each machine function for accuracy, ease, and speed.
- Electric Servo Motor Roller GAP Drive and Encoder. provides precise and repeatable roller gap position to improve accuracy and efficiency.
- Help Tutorials. are visual guides that improve comprehension and retention enhancing employee productivity, proficiency, and confidence.
- Digital Roller Pressure Display. provides easy reference and adjustment for fast, repeatable roller pressure to ensure flat, quality output.
- BUILT-IN PROFESSIONAL FEATURES
- Integrated Rear Rewind. Is motorized for longer, uninterrupted roll-to-roll operation.
- Three Swingout Shafts. Save time loading and unloading rolls for faster setup and change-overs
- Top Heat Assist. Softens film adhesive to reduce silvering for better quality output and to shorten processing time.
- Roll Label Printer. Generates pressure sensitive label with film description and remaining footage for labeling partial film rolls.
- Film Tension Sensor. Is an adjustable alarm that alerts operator to excess web tension ensuring flat, error free output.
- Inline Rotary Slitters. Trim the sides of output during lamination to save time and increase productivity.
Item Specifications
- Laminating Width: 63"
- Roller Diameter: 5"
- Roller Gap: 1"
- Main Rollers: Silicone
- Supply Roll Diameter (Max): 8" OD (top); 16" OD (bottom)
- Supply Shafts: 2 Swing-out
- Rewind Shafts: 2 (1 Swing-out)
- Rear rewind: Included
- Rear Inline Slitters: Rotary Design
- Maximum temperature: 140°F
- Heat method: Metal Alloy heater
- Film Core Size: 3"
- Laminating speed: 0-20 ft/min
- Pressure adjustment: Electric Servo Motor
- Output Height: 38"
- Foot Pedal: Included
- Stand with casters: Included
- Power Supply: 120v 12A
- Power Consumption: 1440W
- Net Weight with stand: 675 lbs.
- Dimensions (W x D x H): 83" x 30.7" x 63"
- Shipping Weight: 908 lbs.
- Shipping Dimensions ( W x D x H): 89" x 35" x 59"
- Manufacturer's Warranty: 1 year parts & labor (Installation is available)
