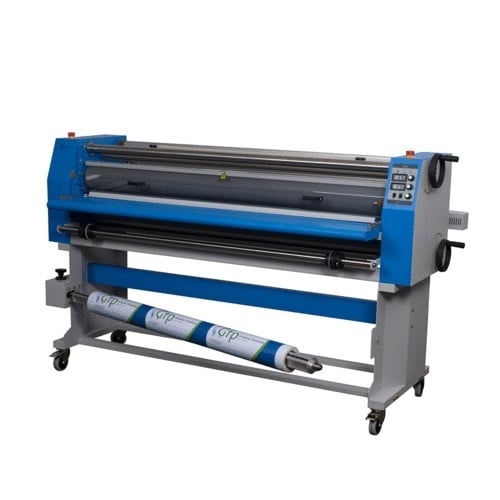

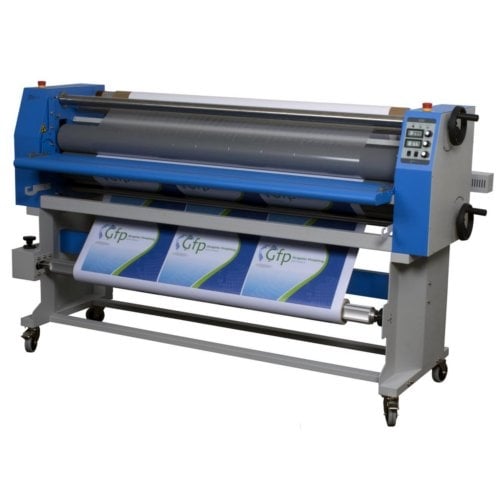

Name: GFP 865DH-3R 65" Dual Heat Wide Format Laminator
Brand: GFP
SKU: 865DH-4R

GFP 865DH-3R 65" Dual Heat Wide Format Laminator

$20,515.00

Quantity

Need Shopping Advice?
Call - (800)944-4573

Item# 865DH-4R

65" wide format laminator
Compatible with film up to 10mil thick (3" core) & boards up to 1" thick
Adjustable heat settings from 0°-266° F
0-156" per minute adjustable speed

Product Description

Gfp 865DH-4R Professional Dual Heat Laminator combines versatility, quality, and economy in one machine. Offering ultimate flexibility, the laminator uses dual heat for thermal and cold applications. Quick and effortless thermal capsulation, PSA lamination, and mounting is possible with the professional features the machine has to offer. Three-inch quick grip swing-out supply shafts allows for easy loading and changing of rolls. For user safety, photoelectric eye engaged emergency functions. Standard features include independent top and bottom heaters, web clutch adjustment, motorized rear rewind, and swing up feed table and 38” output height. This flexible and economically priced machine is a top choice in producing signs, posters, POP displays, trade show displays, dry-erase boards, graphic mounting, photo mounting, floor graphics, window graphics, and vehicle graphics. With the end user in mind, this impressive machine is specifically designed to carry features that will maximize productivity while cutting down time and effort. For proven performance and professional quality finish, consider Gfp 865DH-4R Professional Dual Heat Laminator!

Product Details

Laminating Width: 65"

Roller Diameter: 5"

Roller Gap: 1"

Main Rollers: Silicone

Supply Roll Diameter (max): 16" bottom, 8" top

Film Shafts: 3" aluminum Quick-Grip

Rear Rewind: Optional

Max. Temperature :266Â°F

Heat Method: Quartz heater

Film Thickness: 1.5 - 10mil

Laminating Speed: 0-13 ft/min

Drive Motor: DC geared motor

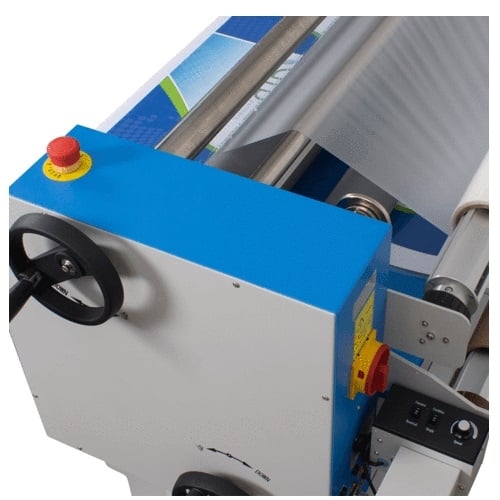

Pressure Adjustment: Dual hand wheels

Roller Heating: Top & Bottom

Power Supply: 240v 60HZ Single phase 24A

Power Consumption: Max. 5760W

Power Requirements: 230V 30A, NEMA 6-30R outlet

Compatible Supplies:3" Core Roll Laminate - 1.5-10mil Thick & Up to 65" Wide
Mounting Board - Up to 1"

Compatible Accessories: Dust Cover for GFP 865DH Laminator

Net Weight w/ stand: 767 lbs.

Dimensions: 87" x 34" x 49"

Machine Shipping: 893 lbs. 90 x 38" x 33"

Stand Shipping: 134 lbs. 79 x 33" x 15"

Manufacturer's Warranty: One Year Parts & Labor

Specifications

Dual heat for thermal and cold applications

Front/Rear Swing-out shafts

Labor saving swing-out 3" Quick-Grip supply shafts.

Two front rewind shafts allow thermal encapsulation of prints from a roll.

Drop-in Quick-Grip rewind shafts.

Photoelectric eye for operator safety.

Independent top and bottom heaters.

Web clutch adjustment for output quality.

Optional motorized rear rewind.

Swing up feed table and 38" output height.

Stand, Rewind Motor & Rewind Tube, Installation and Training are included in the price.

Applications: Signs,Posters,POP Displays,Trade show displays,Dry-erase boards,Graphic mounting,Photo mounting,Floor graphics,Window graphics, and Vehicle graphics.

Power Requirements - 230V 30A, NEMA 6-30R outlet

Installation included. A forklift at the site is required.

Compare to Similar GFP Wide Format Laminators

Model Name

Model

Heat / Cold

Laminating Width

Maximum Speed (feet/minute)

Speed Control

Maximum Temperature

Heating Method

Mounting Gap

Pressure/Gap Adjustment

Pressure/Gap Mechanism

Roller Diameter

Main Rollers

Supply Shaft

Tension Adjustment

Film Tension Sensor

Digital Microcontroller

Color Graphic Display

Touchscreen Interface

Operating Tutorials

Roll Label Printer

Web Clutch

Motorized Liner & Rewind

Roll to Roll Capable

Rear Rewind

Inline Slitting

Front Unwind

Foot Pedal

Optical Safety Eyes

Stand

Swing Up Feed Table

Power Supply

Power Consumption

Warranty Parts

Warranty Labor

Installation & Training

Net Weight (lbs.)

Dimensions

Safety Approval
865DH-4RS

Dual Heat

65"

13

Variable

266° F

Quartz Tube

1"

Infinite

Dual Hand Wheel

5"

Silicone

Swing Out with 3" Quick Grip

Single Knob

N/A

N/A

N/A

N/A

N/A

N/A

✔

✔

✔

✔

✔

2

✔

✔

✔

✔

240v 24A

5760W

1 year

1 year

Included

846

87 x 34 x 49"

cTUVus
663TH

Top Heat Assist

63"

20

Variable

140° F

Metal Alloy

1"

Infinite

Electric

5"

Silicone

Swing Out with 3" Quick Grip

Single Knob

✔

✔

✔

✔

✔

✔

N/A

✔

✔

✔

✔

✔

✔

✔

✔

✔

120v 12A

1440W

1 year

1 year

Optional

675

83 x 31 x 63"

cTUVus
563TH-4RS

Top Heat Assist

63"

20

Variable

140° F

Metal Alloy

1"

Infinite

Hand Wheel

4.5"

Silicone

Swing Out with 3" Quick Grip

Single Knob

N/A

N/A

N/A

N/A

N/A

N/A

N/A

✔

✔

✔

✔

✔

✔

✔

✔

✔

110v 12A

1320W

1 year

1 year

Optional

491

87 x 26.5 x 52.5"

cTUVus
363-TH

Top Heat Assist

63"

20

Variable

140° F

Metal Alloy

1"

Infinite

Hand Wheel

5"

Rubber

3" Quick Grip

Single Knob

N/A

N/A

N/A

N/A

N/A

N/A

N/A

Chain Link

✔

✔

N/A

✔

✔

✔

✔

✔

120v 12a

1440W

1 year

1 year

Optional

376

80 x 23 x 48"

cTUVus
355-TH

Top Heat Assist

55"

20

Variable

140° F

Metal Alloy

1"

Infinite

Hand Wheel

5"

Rubber

3" Quick Grip

Single Knob

N/A

N/A

N/A

N/A

N/A

N/A

N/A

Chain Link

✔

✔

N/A

✔

✔

✔

✔

✔

120v 11a

1320W

1 year

1 year

Optional

321

72" x 23" x 48"

cTUVus
263-C

Cold

63"

13

Variable

N/A

N/A

1"

Infinite

Hand Wheel

4.5"

Rubber

3" Quick Grip

Single Knob

N/A

N/A

N/A

N/A

N/A

N/A

N/A

Chain Link

N/A

N/A

N/A

✔

✔

✔

✔

Fixed

110v 0.4A

44W

1 year

1 year

Optional

322

80" x 24" x 55"

cTUVus
255-C

Cold

55"

13

Variable

N/A

N/A

1"

Infinite

Hand Wheel

4.5"

Rubber

3" Quick Grip

Single Knob

N/A

N/A

N/A

N/A

N/A

N/A

N/A

Chain Link

N/A

N/A

N/A

✔

✔

✔

✔

Fixed

110v 0.4A

44W

1 year

1 year

Optional

257

73 x 24 x 55"

cTUVus
230-C

Cold

30"

11.5

Variable

N/A

N/A

1/2"

Infinite

Hand Wheel

2.5"

Silicone

1" Shaft / Adaptors

Dual brakes

N/A

N/A

N/A

N/A

N/A

N/A

N/A

✔

N/A

N/A

N/A

✔

✔

✔

✔

✔

110v 0.3A

33W

1 year

1 year

Optional

117

43 x 17 x 42"

cTUVus
