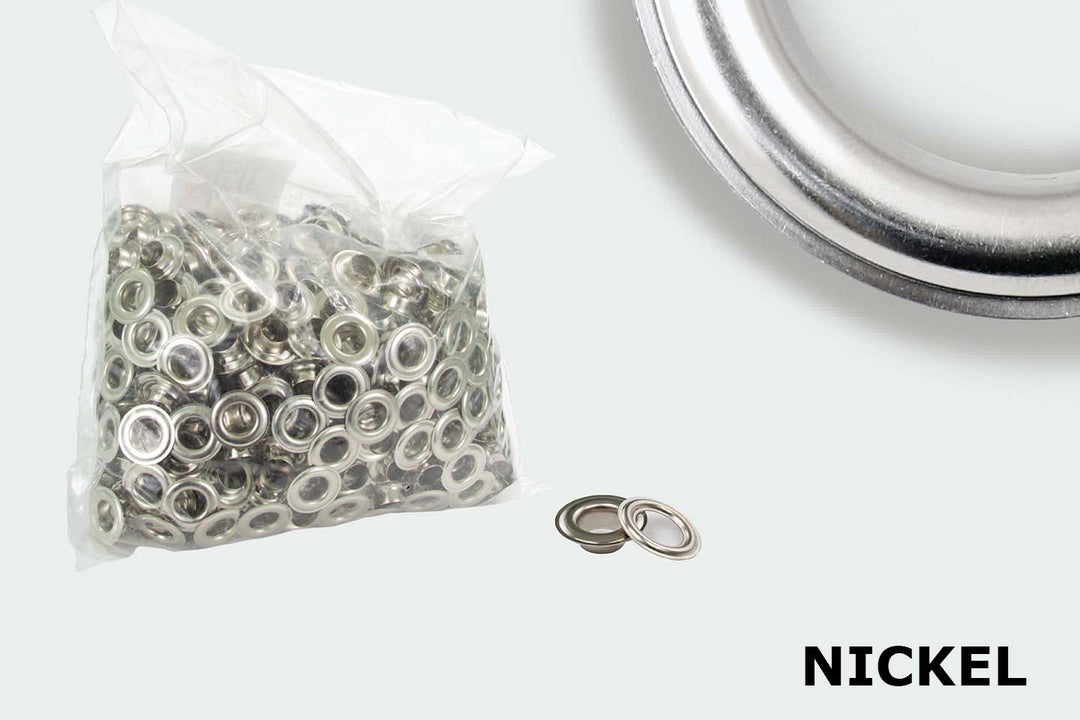

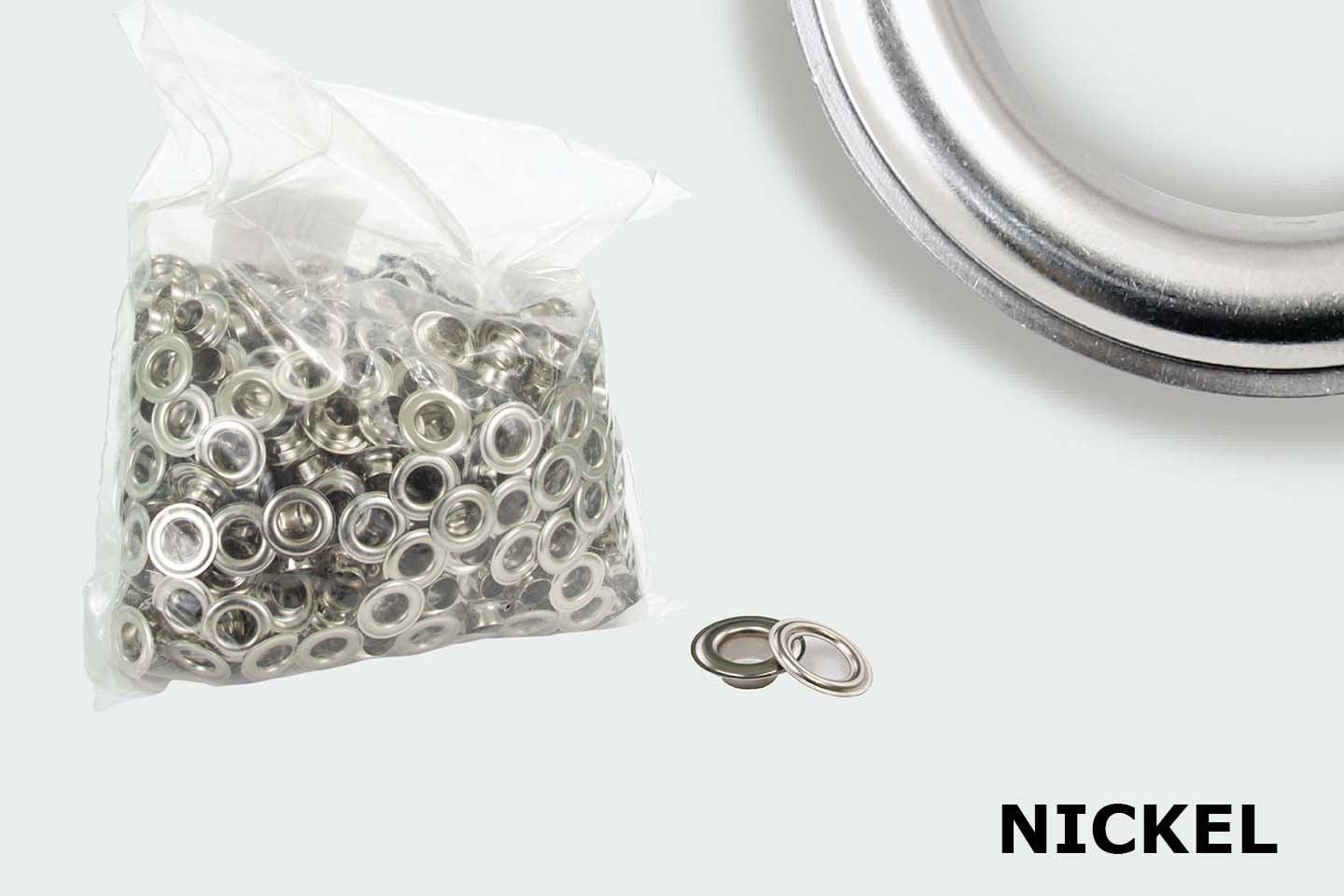

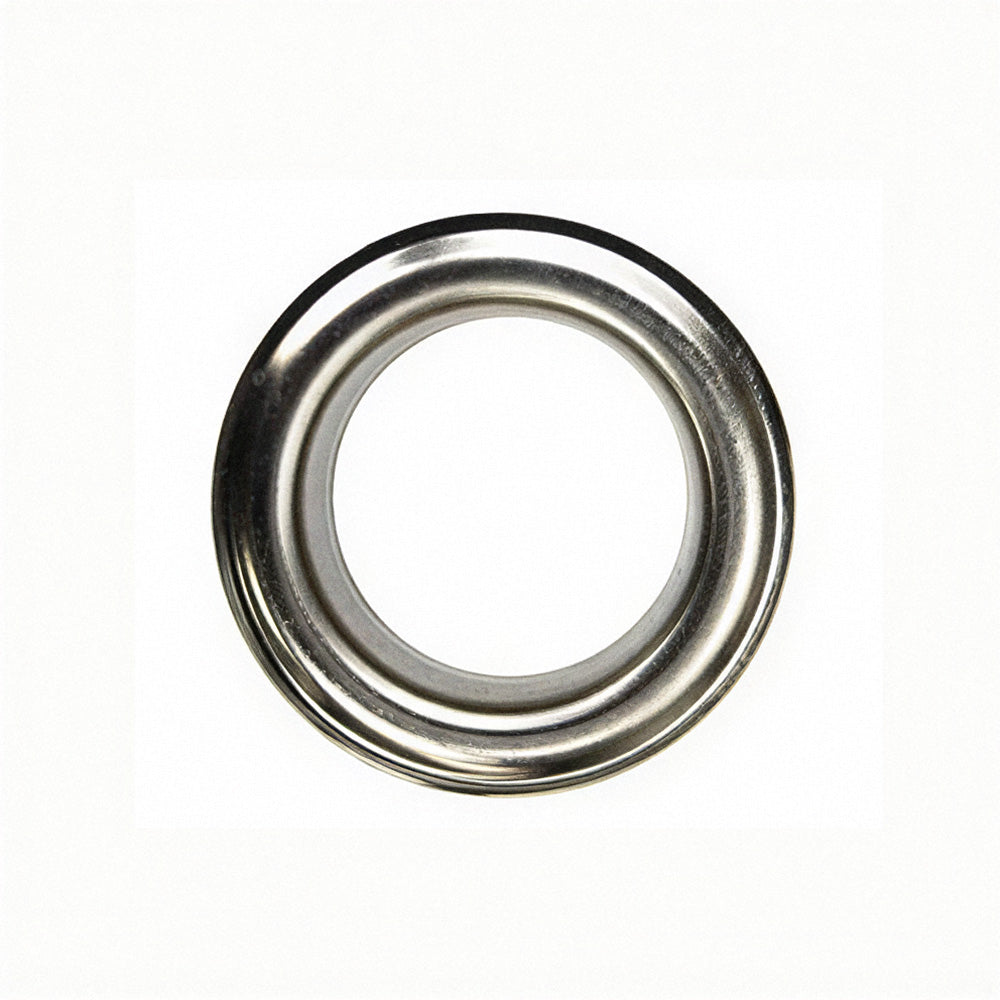

For strong and long-lasting grommets that will never rust consider using Nickel Grommets. Even when exposed to outdoor elements, these grommets will stand wear and tear as it is made from high quality solid brass with nickel/silver finish. These are compatible with ClipsShop grommet presses and are available in a range of sizes that will go perfectly with any material or project that you are working on. As these grommets are self-piercing, users will save on man hours and effort as it does not require a separate tool for punching holes, this reduces the two-step process of punching and attachment in one quick and simple step. It is available in sizes #XX00 1/8" through #12 1.5". Aesthetically, nickel or silver finish is a great choice if you lean toward a neat and clean look with a professional impression. This will go well with any layout making it perfect for crafting, fashion design, creative book binding, home decor, fabric displays and so much more. It is sold in 25/pack, 100/pack, and 500/pack. Get Nickel/Silver Grommets for an attractive and durable finish!
| Die Size | CSHAP-1 | CSTEP-1 | CSTEP-2 | CSTON-1 | CSBUR-1 | CSTIDY-41 (w/ Foot Pedal, w/ Push Button, w/ Push Button and Foot Pedal) | CSPIC-2 | CSPIC-3 |
|---|---|---|---|---|---|---|---|---|
| #XX00 (1/8") | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
| #X00 (11/64") | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
| #00 (3/16") | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
| #0 (1/4") | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
| #1 (5/16") | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| #2 (3/8") | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| #3 (7/16") | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
| #4 (1/2") | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ||
| #5.5 (11/16") | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ||
| #7.5 (1") | ✓ | ✓ | ✓ | |||||
| #8.5 (1 1/8") | ✓ | ✓ | ✓ | |||||
| #12 (1 1/2") | ✓ | ✓ | ✓ |
| Size | Grommet | Washer | |||||
|---|---|---|---|---|---|---|---|
| Flange Diameter | Hole Size | Overall Length | Neck Length | Flange Diameter | Inside Diameter | Thickness (with form) | |
| #XX00 (1/8") | 0.28" (7mm) | 0.125" (3.4mm) | 0.16" (4.1mm) | 0.13" (3.4mm) | 0.31" (8mm) | 0.18" (4.5mm) | 0.03" (0.7mm) |
| #X00 (11/64") | 0.33" (8.5mm) | 0.17" (4.4mm) | 0.2" (5.2mm) | 0.17" (4.3mm) | 0.33" (8.5mm) | 0.2" (5.2mm) | 0.03" (0.8mm) |
| #00 (3/16") | 0.37" (9.4mm) | 0.1875" (5mm) | 0.2" (5.2mm) | 0.17" (4.3mm) | 0.38" (9.6mm) | 0.23" (5.8mm) | 0.04" (0.9mm) |
| #0 (1/4") | 0.45" (11.5mm) | 0.25" (5.8mm) | 0.22" (5.5mm) | 0.18" (4.5mm) | 0.45" (11.5mm) | 0.27" (6.8mm) | 0.04" (1mm) |
| #1 (5/16") | 0.59" (15mm) | 0.3125" (8mm) | 0.24" (6mm) | 0.2" (5.1mm) | 0.59" (15mm) | 0.37" (9.4mm) | 0.04" (1mm) |
| #2 (3/8") | 0.75" (19mm) | 0.375" (9.4mm) | 0.23" (5.9mm) | 0.19" (4.9mm) | 0.74" (18.8mm) | 0.42" (10.6mm) | 0.04" (1.1mm) |
| #2 LN (3/8") "Long Neck" |
0.75" (19mm) | 0.375" (9.4mm) | 0.23" (5.9mm) | 0.35" (9mm) | 0.31" (7.8mm) | 0.42" (10.6mm) | 0.04" (1.1mm) |
| #3 (7/16") | 0.96" (24.5mm) | 0.4375" (11.6mm) | 0.23" (5.9mm) | 0.18" (4.6mm) | 0.96" (24.5mm) | 0.53" (13.5mm) | 0.06" (1.6mm) |
| #3 LN (7/16") "Long Neck" |
0.96" (24.5mm) | 0.4375" (11.6mm) | 0.31" (7.9mm) | 0.26" (6.7mm) | 0.96" (24.5mm) | 0.53" (13.5mm) | 0.06" (1.6mm) |
| #4 (1/2") | 1.04" (26.3mm) | 0.5" (12.7mm) | 0.24" (6mm) | 0.18" (4.6mm) | 1.04" (26.3mm) | 0.57" (14.5mm) | 0.06" (1.5mm) |
| #5.5 (11/16") | 1.12" (28.5mm) | 0.6875" (16.7mm) | 0.27" (6.8mm) | 0.2" (5.2mm) | 1.1" (28mm) | 0.75" (19mm) | 0.05" (1.2mm) |
| #7.5 (1") | 1.73" (44mm) | 1" (25mm) | 0.39" (9.8mm) | 0.32" (8.2mm) | 1.73" (44mm) | 1.03" (26.2mm) | 0.08" (2.1mm) |
| #8.5 (1 1/8") | 1.89" (48mm) | 1.125" (28mm) | 0.41" (10.3mm) | 0.32" (8.2mm) | 1.89" (48mm) | 1.18" (30mm) | 0.07" (1.7mm) |
| #12 (1 1/2") | 2.46" (62.6mm) | 1.5" (40mm) | 0.48" (12.2mm) | 0.42" (10.6mm) | 2.46" (62.4mm) | 1.68" (42.7mm) | 0.06" (1.6mm) |
