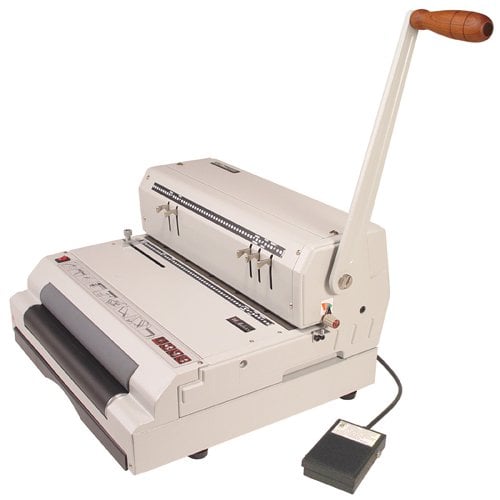

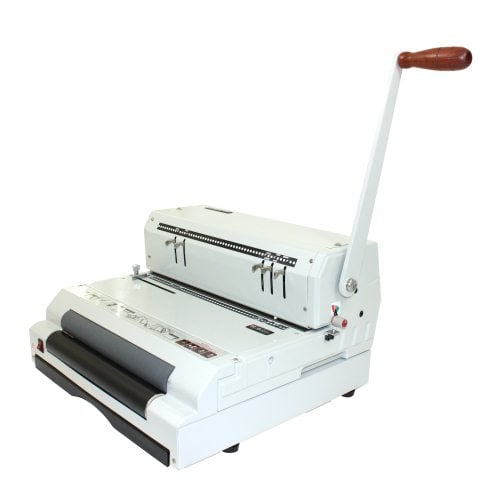

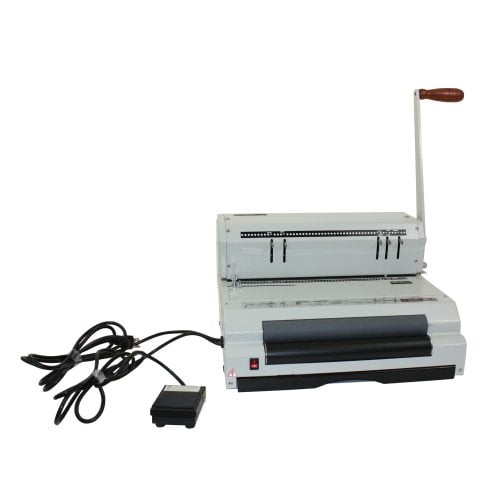

Akiles CoilMac ECI 5:1 Electric Binding Machine with Foot Pedal

Name: Akiles CoilMac ECI 5:1 Coil Binding Machine w/ Electric Inserter
Brand: Akiles
SKU: COILMACECI51
Rating: 4.81 (68 reviews)

$899.00

Quantity

Need Shopping Advice?
Call - (800)944-4573

Item# COILMACECI51

Effortless electric coil insertion with foot pedal operation for hands-free efficiency.
Versatile 5:1 pitch binding capability, accommodating a variety of document sizes and thicknesses.
Precision punching with 5 disengageable pins, ensuring clean and accurate holes for every project.
Compact design with a 13" punching length, perfect for both small and medium office environments.

Product Description

The Akiles CoilMac ECI 5:1 Binding System is a Manual Punch/Electric Coil Inserting system. Easy to use, it will punch up to 17-sheets at a time utilizing the 5 to 1 coil punch die. The Electric Coil Inserter is activated by a foot-switch making coil insertion fast and easy. The CoilMac ECI is the most popular coil binding machine on the market and includes a set of coil crimping pliers. There is a 4:1 version of the CoilMac ECI. If the 4:1 pitch is what you are looking for the part number is COILMACECI41 .

Product Details

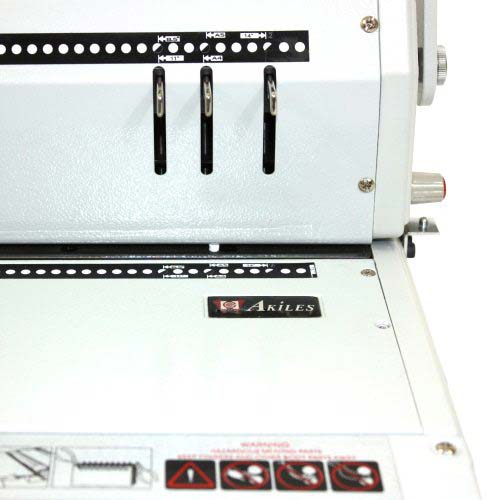

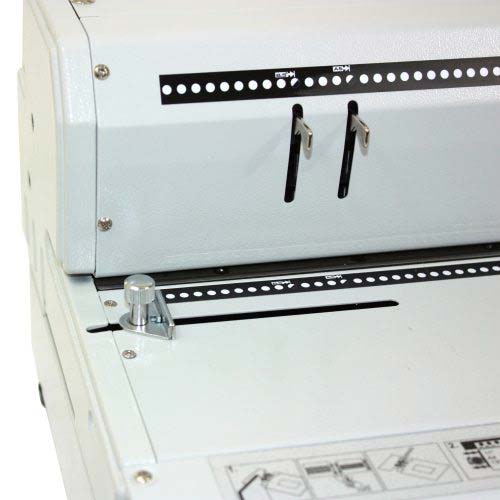

Die Disengagement Pins: For a clean punch with multiple paper sizes.

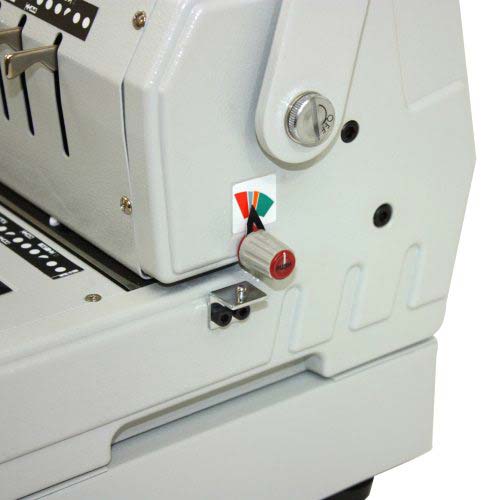

Punching Margin Control: Provides the correct punch-margin-depth for each coil size and maximizes the document's tear resistance.

Open Punching Throat and Continuous Punching Guide: For an easy alignment and punching of longer documents.

Side Margin Control: Provides an evenly centered punch for all document sizes.

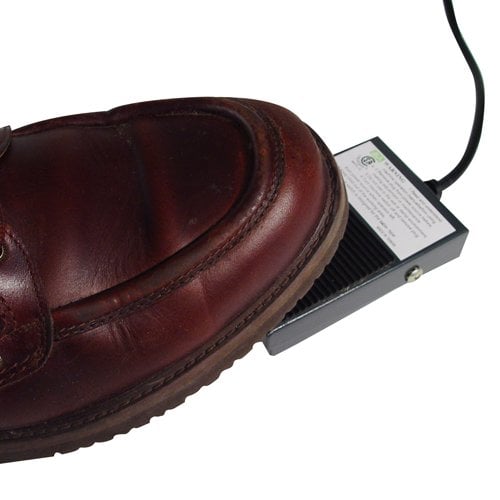

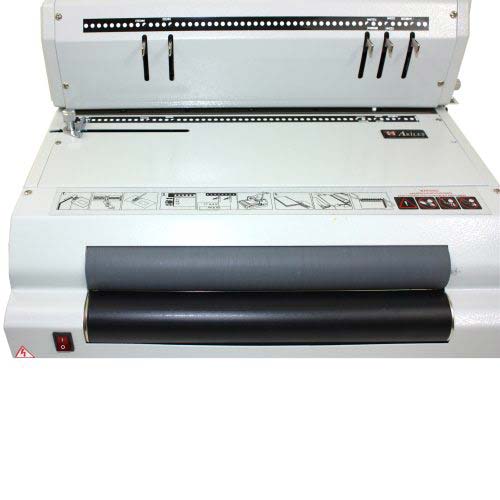

Electric Roller Inserter (Foot Pedal Operated): Allows the free use of both hands and grants the operator complete rotating control of the roller. Drastically reduces time and costs by making the inserting surprisingly fast and easy.

Includes: Coil selector

4:1 Pitch Coil Pattern Punches 43 Hole (.250 Pitch)

Specifications

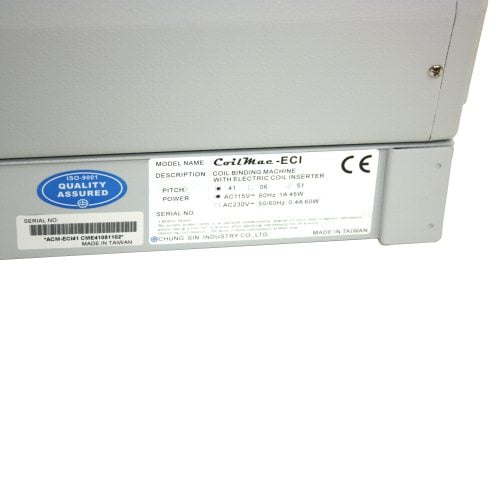

Model: CoilMac-51 ECI

Pitch: 5:1

Punching Length: 13" (65 dies)

Inserting: Electric

Hole Punch: Round (4mm radius)

Disengaging Dies: 5

Single Punching Capacity: Up to 20 sheets (20 lbs paper)

Binding Capacity: Up to 7/8"

Weight / Volume: 59 lbs / 2.8 CbFt

Actual Machine Dimensions (L x W x H): 15" x 16-3/4" x 21"

Shipping Length:19"

Shipping Width:20"

Shipping Height:13"

Shipping Weight:59 Lbs.

Manufacturer's Warranty: 1 Year Manufacturer Manufacturer's Warranty

Compatible Supplies: 5:1 Pitch Spiral Coils

Spiral / Binding101 Part Number: 04AKCOILMECI5

Compare to Similar Coil Binding Machines

Model Name	CoilMac ECP	CoilMac ECP41-Plus	CoilMac ECI 4:1	CoilMac ECI 5:1	Coilmac ECI+
Model
Pitch	4:1 (0.25")	4:1 (0.248")	4:1	5:1	4:1
Punching Length	13.5" (53 holes)	13.5" (54 holes)	13" (53 dies)	13" (65 dies)	13"
Inserting	Electric	Electric	Electric	Electric	Electric
Hole Punch	Round (4mm)	Oval (4mm x 5mm)	Round (4mm radius)	Round (4mm radius)	Oval (5mm x 4mm)
Disengaging Dies	5 out of 53	All 54	5	5	Full
Single Punching Capacity	Up to 25 sheets (20 lbs paper)	Up to 25 sheets (20 lbs paper)	Up to 20 sheets (20 lbs paper)	Up to 20 sheets (20 lbs paper)	Up to 20 sheets (20 lbs paper)
Binding Capacity	Up to 2" (with Finish@Coil-M or E1)	Up to 2" (with Finish@Coil-M or E1)	Up to 7/8"	Up to 7/8"	Up to 7/8"
Weight / Volume	60 lbs & 4.33 CbFt	60 lbs & 4.33 CbFt	59 lbs / 2.8 CbFt	59 lbs / 2.8 CbFt	59 lbs / 2.8 CbFt

Model

Pitch

4:1 (0.25")

4:1 (0.248")

4:1

5:1

4:1

Punching Length

13.5" (53 holes)

13.5" (54 holes)

13" (53 dies)

13" (65 dies)

13"

Inserting

Electric

Hole Punch

Round (4mm)

Oval (4mm x 5mm)

Round (4mm radius)

Oval (5mm x 4mm)

Disengaging Dies

5 out of 53

All 54

Full

Single Punching Capacity

Up to 25 sheets (20 lbs paper)

Up to 20 sheets (20 lbs paper)

Binding Capacity

Up to 2" (with Finish@Coil-M or E1)

Up to 7/8"

Weight / Volume

60 lbs & 4.33 CbFt

59 lbs / 2.8 CbFt

Video

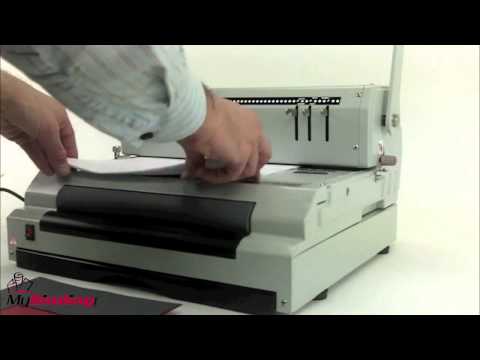

Akiles CoilMac ECI Manual Spiral Coil Binding Machine Demo Video

Transcript :

Welcome to MyBinding video. Today we look at the CoilMac ECI, an electric coil binding machine by Akiles. Heavy duty, yet simple and efficient, the CoilMac can handle a lot of binding. Let's bind a book and watch it in action. First, you set the side margin control knob so that all punches are consistent throughout your entire project. Next, disengage any of the five disengageable die pins so there are no half holes punched on all standard sized documents. With this knob, you can control the depth of the margin of the punch for your project so it best fits your size coil. It's always wise to use scrap paper for your first punch. Once it's all set, begin with the covers, putting the spine side in first and make your punches. Continue on with the rest of your project, punching holes in all the papers, up to 17 sheets of 20lb paper per lift. Now it's time to assemble your project together and bind it. Start by threading a coil through the first few holes of one end. Then use the hand or foot pedal to engage the inserter. Let the coil spin all the way through your document until it hangs out on both ends. And then crimp both ends with coil crimping pliers. That's it. That's the CoilMac ECI by Akiles. For more demos, reviews, and how to's on this product and many more, check out MyBinding.com.

Resources

Broke down after 2 weeks of using.

Love the machine I purchased! The only tiny complaint is that I didn't receive a shipping notice with tracking. I had to contact the company, but they sent it by email in just a few minutes. I would buy from this company again.

Works great! Thanks!

Great machine/ Great Company

I’m so glad I found this machine!! It punches through my chipboard covers to make my journals. It seems very durable and well made. I Know it seems like a lot of money but, it’s well worth it. I’ve tried the other machines that are cheaper on Amazon and they just don’t do the job like this one does. You won’t be disappointed.

Heavy Duty Machine

I have not had much time to play around with it yet, but it is built like a tank and seems to be a very solid machine that is pretty easy to use. I have no experience with coil binding, yet my first attempt went really well. I didn't realize I needed to order the coil crimper separately, so with my trial run I used a pair of needle nose pliers and managed okay - promptly ordered the crimpers though and a couple larger sized coils. I believe this will provide much more functional binding for us in comparison to the comb binding that we were using.
