Product Description

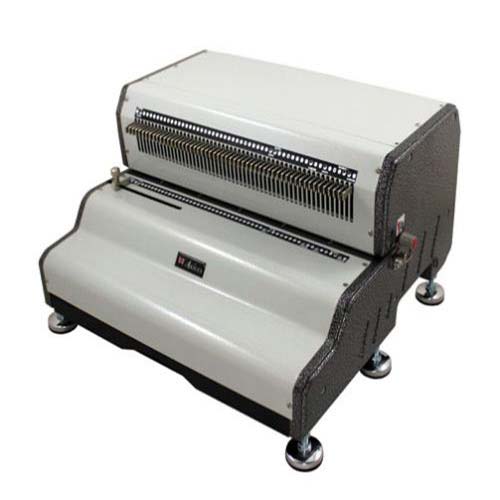

The New Akiles CoilMac-ECP Plus Electric Coil Punching Machine is the premium version of the CoilMac-ECP. The CoilMac-ECP (+) line is designed for professional, convenient, fast and easy punching. It is equipped with heavy duty motor to insure flawless single punches up to 25 sheets of 20 lbs paper. The CoilMac is equipped with 4 depth margin control settings with easy alignment and punching for documents up to 26" long. What distinguishes The CoilMac-ECP Plus from the standard ECP is the addition function of all 54 pins can be independently pulled and disengaged for the perfect punch in any paper size. The CoilMac-ECP Plus is the first and only equipment to offer the additional special 4 x 5mm oval-shaped holes to make coil insertion much faster. With the additional upgrade of HD Electric coil Inserter, it will improve the coil binding speed by as much as 90% making one of the best electric coil binding machines on the market.
Product Details
- Model: CoilMac-ECP41+
- Pitch: 4:1 (0.248")
- Punching Length: 13.5" (54 holes)
- Inserting: Electric
- Hole Punch: Oval (4mm x 5mm)
- Disengaging Dies: All 54
- Single Punching Capacity: Up to 25 sheets (20 lbs paper)
- Binding Capacity: Up to 2" (with Finish@Coil-M or E1)
- Weight / Volume: 60 lbs & 4.33 CbFt
- Actual Machine Dimensions (L x W x H): 18" x 16-1/4" x 11"
- Shipping Length:23.5"
- Shipping Width:21"
- Shipping Height:16"
- Shipping Weight:61 Lbs.
- Manufacturer's Warranty: 1 Year Manufacturer Manufacturer's Warranty
- Compatible Supplies: 4:1 Pitch Spiral Coils
- Compatible Equipment: Coil Inserter
Specifications

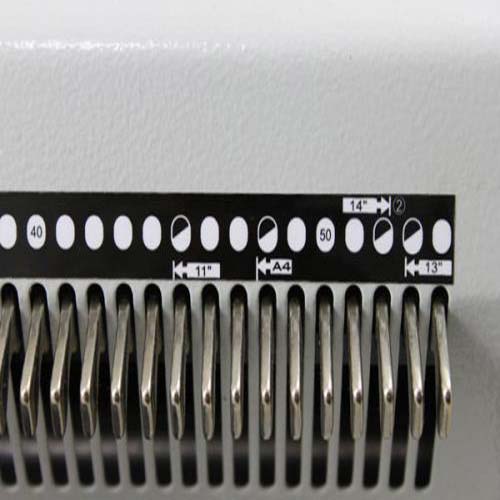

- Fully Disengageable Punch Pins: For a clean and professional punching of any paper size, all 54 pins can be independently pulled and disengaged.
- Side Margin Control: Provides and evenly centered punch for all document sizes.

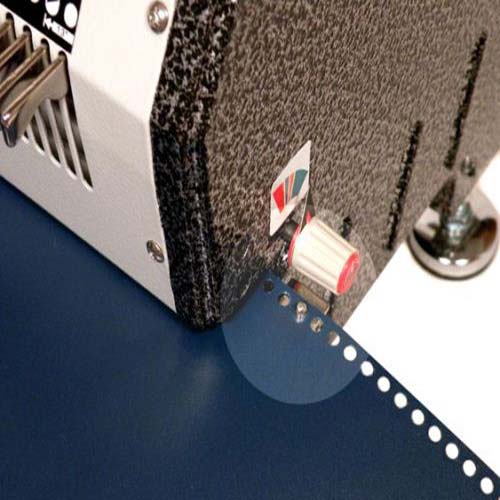

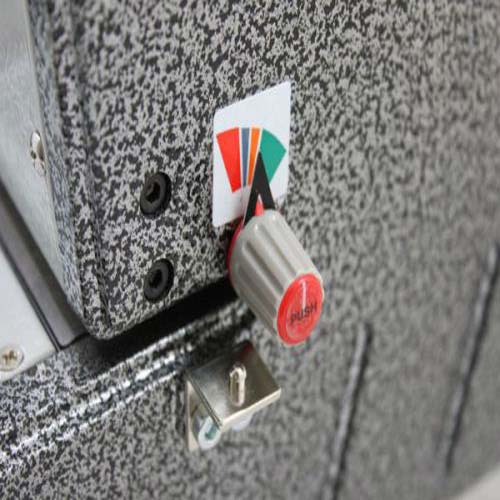

- Depth Margin Control: 4 settings provide the perfect punch margin depth for different coil sizes.

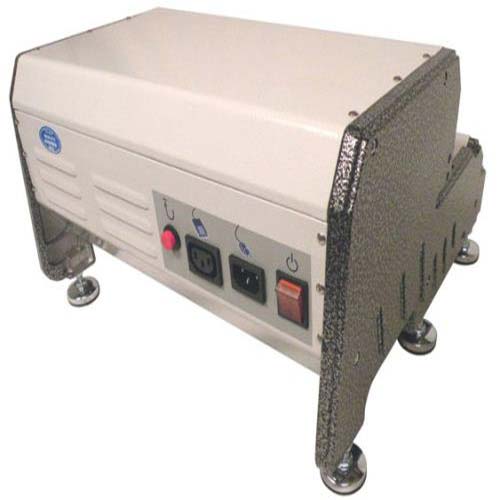

- Punching & Inserting Switch.
- Foot Pedal Operation: Allows the free use of both hands, with full control of punching and inserting.
- Waste Drawer
- Oval Punching holes to help improve coil binding speed by as much as 90%.
- Reverse (Anti-Jam) Function: For trouble free punching.
- Power Switch
- Heavy-Duty Punch Motor: Single punches up to 25 sheets of paper (20 lbs)..
- Open Punching Throat & Continuous Punching Guide: For an easy alignment & punching of longer documents up to 26".
- Hardened Punch Die System: Individually cast-hardened and heat-treated steel punch dies ensures many years of trouble-free operation.
- FREE: Coil Selector
- Fully Featured / Reliable / Easy to Use / Powerful
- Punches 4:1 Pitch .248 (54 Hole) Pattern
Compare to Similar Coil Binding Machines
-
Coilmac-ECP Series, CoilMac-ECI Series and AlphaCoil-E
-
Model NameModelPitchPunching LengthInsertingHole PunchDisengaging DiesSingle Punching CapacityBinding CapacityWeight / Volume
-
CoilMac ECP
4:1 (0.25")13.5" (53 holes)ElectricRound (4mm)5 out of 53Up to 25 sheets (20 lbs paper)Up to 2" (with Finish@Coil-M or E1)60 lbs & 4.33 CbFt -
CoilMac ECP41-Plus
4:1 (0.248")13.5" (54 holes)ElectricOval (4mm x 5mm)All 54Up to 25 sheets (20 lbs paper)Up to 2" (with Finish@Coil-M or E1)60 lbs & 4.33 CbFt -
CoilMac ECI 4:1
4:113" (53 dies)ElectricRound (4mm radius)5Up to 20 sheets (20 lbs paper)Up to 7/8"59 lbs / 2.8 CbFt -
CoilMac ECI 5:1
5:113" (65 dies)ElectricRound (4mm radius)5Up to 20 sheets (20 lbs paper)Up to 7/8"59 lbs / 2.8 CbFt -
Coilmac ECI+
4:113"ElectricOval (5mm x 4mm)FullUp to 20 sheets (20 lbs paper)Up to 7/8"59 lbs / 2.8 CbFt -
AlphaCoil-E
4:1 (0.25")Up to Letter / A4 SizeElectricRound (4mm)All 46Up to 20 sheets of 20Lb paperUp to 1" (Electric) / Up to 2" (Manual)49 Lbs & 1.9 CbFt
