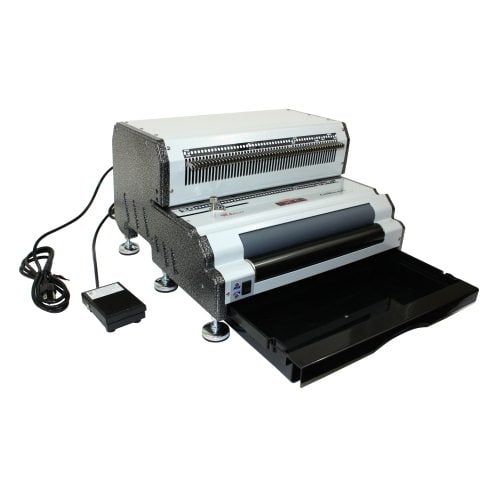

The New Akiles CoilMac EPI Plus is a new and improved version of the classic CoilMac EPI Electric Spiral Coil Binding Machine. This machine includes the solid construction, electric coil inserter, heavy duty electric punch and other great features that have made the Akiles Coilmac EPI binding machine famous. However, it provides a number of features that are simply not available on comparable spiral coil binding machines. The New CoilMac EPI-Plus offers oval punching holes to help make inserting coils easier than ever. It also includes fully disengageable punching pins to allow you to punch virtually any document length. The CoilMac EPI Plus series of machines is the only line of manual coil binding machines to offer these options. Plus, the Coilmac-EPI-Plus offers a 0.248 pitch to help ensure that the holes aren't too close or too far away from the edge of the paper. With its heavy duty punch motor, built-in electric coil inserter and complete system of functions, Akiles CoilMac-EPI Plus Coil Binding Machine makes coil binding fast, easy, convenient and professional, making it the ideal partner for commercial volume workloads. The Akiles CoilMac EPI+ Heavy Duty Electric Coil Binding Machine with Electric Coil Inserter is one of the best electric coil binding machines on the market. The CoilMac EPI Plus includes a heavy duty electric binding punch and a high quality electric coil inserter. The CoilMac EPI+ can punch up to 20 sheets per lift and includes a foot pedal control for easier punching and inserting. The Akiles CoilMac EPI Plus truly is the ultimate in Combination Coil Binding Machines.
Product Details
- Model: CoilMac-EPI41+
- Pitch: 4:1
- Punching Length: 13"
- Inserting: Electric
- Hole Punch: Oval (5mm x 4mm)
- Disengaging Dies: Full
- Single Punching Capacity: Up to 20 sheets (20 lbs paper)
- Binding Capacity: Up to 7/8"
- Weight / Volume: 75 lbs & 2.82 CbFt
- Actual Machine Dimensions (L x W x H): 18" x 16-1/4" x 11"
- Shipping Length:23.5"
- Shipping Width:21"
- Shipping Height:16"
- Shipping Weight:75.1 Lbs.
- Manufacturer's Warranty: 1 Year Manufacturer Manufacturer's Warranty
- Compatible Supplies: 4:1 Pitch Spiral Coils
Specifications
- Electric punch handles up to 20 sheets
- Built-in electric coil inserter with foot pedal operation for full control
- 54 fully disengageable pins for any sheet size
- Oval punching holes (4mm x 5mm) for faster, easier coil insertion
- Open throat design with continuous punch guide for oversized sheets
- U-shaped alignment channel helps pre-shape thick documents
- Adjustable depth margin control with 4 locking positions for optimized punching
- Reverse (Anti-Jam) function for easy clearing of overloads?
- Heavy-duty all-metal construction for lasting durability
- CE Certification all components certified & approved by CE for most stringent safety requirements.

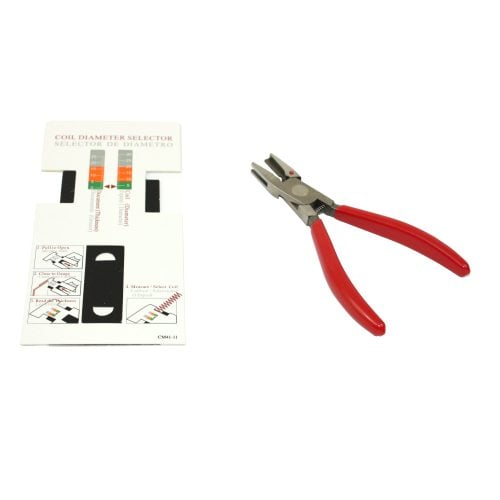

- Includes Coil Diameter Selector & Premium Oval Coil Crimpers
FAQs:
Q: How can I get the best punching results?
Even though this machine can punch up to 20 sheets, we recommend sticking to 15 for cleaner punches and longer machine life. Also, be sure to empty the chip tray regularly to keep things running smoothly.
Q: What should I do if the machine jams?
If you hit a jam, just flip the reverse switch on the back. It will reset the punching dies so you can easily clear out the paper and get back to binding.
Q: Does this machine come with an electric coil crimper?
Not with this model. It includes manual crimping pliers. If you're looking for an electric option, check out our standalone crimping machines.
Compare to Similar Coil Binding Machines
| Model Name | CoilMac-EX Pro 4:1 | CoilMac-EX 4:1 | CoilMac-EX Plus 4:1 | CoilMac EPI | CoilMac EPI+ |
|---|---|---|---|---|---|
| Model |  |
 |
 |
 |
 |
| Pitch | 4:1 | 4:1 | 4:1 | 4:1 | 4:1 |
| Punching Length | 13.5" | 13.5" | 13.5" | 13" (53 holes) | 13" (54 holes) |
| Inserting | Electric (On/Off Switch) | Electric | Electric | Electric | Electric |
| Hole Punch | Oval (4mm x 5mm) | Round (4mm) | Oval (4mm x 5mm) | Round (4mm radius) | Oval (4mm x 5mm) |
| Disengaging Dies | All 54 | Full | Full | 5 | Full |
| Single Punching Capacity | Up to 25 sheets (20 lbs paper) | Up to 25 sheets for 20 lbs paper | Up to 25 sheets for 20 lbs paper | Up to 25 sheets for 20 lbs paper | Up to 25 sheets for 20 lbs paper |
| Binding Capacity | Up to 2" (50mm) | Up to 7/8" | Up to 7/8" | Up to 7/8" | Up to 7/8" |
| Weight / Volume | 55 lbs | 50 lbs. | 50 lbs. | 75 lbs & 2.82 CbFt | 75 lbs & 2.9 CbFt |
