Product Description
Want to coil bind like a pro without needing three separate machines? Meet the Akiles CoilMac-EX Pro, an all-in-one electric binder that punches, inserts, and crimps spiral coils. Whether you're building handbooks, proposals, or course packs, this machine does the heavy lifting for you. Punch up to 25 sheets at a time, insert coils with a full-size electric roller, and finish it all off with the built-in electric crimper. No switching machines and no strain from manual tools. Just press the foot pedal to control both the punch and the crimper so you can keep both hands free for ultimate control. Oval holes make for easier coil threading and smoother page turning, and the 54 disengageable pins let you customize punches on the fly. Plus, you’ll love the open throat and continuous punch guide for tackling larger sheets. Bonus: In case of a jam, simply use manual reverse to clear it quickly and get back on track. Best Coil Binder For: Schools & Universities creating workbooks, projects, and lesson plans Admin and HR departments producing training materials Print centers looking to make their binding more efficient Corporate and legal offices for professional presentations, proposals, and reports Spiral Coil Pro Tips: Use 20 sheets max per punch for better long-term performance Have the roller adjusted and locked for your coil size before inserting Clear the waste drawer regularly; overfilling can cause malfunctions Store your Allen key nearby for quick jam fixes Lubricate punching blades 1–2 times/year with lithium or synthetic grease Use the Coil Size Guide to choose the correct coil and margin settings for each jobProduct Details
- Punching Capacity: Up to 25 sheets (20 lbs paper)
- Punching and Crimping Operation: Electric (Foot Pedal)
- Coil Inserting: Electric (On/Off Switch)
- Hole Size: Oval (4mm x 5mm)
- Pitch: Letter 4:1 (0.248")
- Disengageable Dies: All 54
- Punching Length: 13.5" with open throat for longer documents
- Binding Capacity: Up to 2" (50mm)
- Dimensions: 18" W x 16" D x 10" H
- Actual Machine Dimensions (L x W x H):
- Shipping Length:24"
- Shipping Width:21"
- Shipping Height:16"
- Shipping Weight:64 Lbs
- Manufacturer's Warranty: 1 Year
- Compatible Supplies: 4:1 Pitch Spiral Coils
Specifications
- All-in-One Electric Coil Binder. Built in punch, coil inserter, and crimper. No extra equipment needed

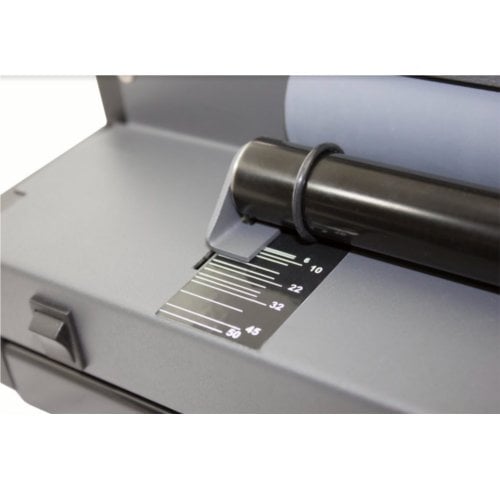

- Adjustable Coil Inserter. Allows you to insert all spine sizes
- Heavy-Duty Duty Punch Motor. All metal machine punches up to 25 sheets of 20lb paper
- Foot Pedal Operation. Activate both the punch and crimper hands-free for complete control
- Oval Hole Punch. Makes page turning and coil threading smoother
- Electric Coil Crimper. Adjustable to work with the full range of coil sizes
- Fully Disengageable Pins. For perfect punches on any paper size, no more half holes
- Open Throat & Continuous Punching Guide. Allows you to easily align and punch oversized sheets

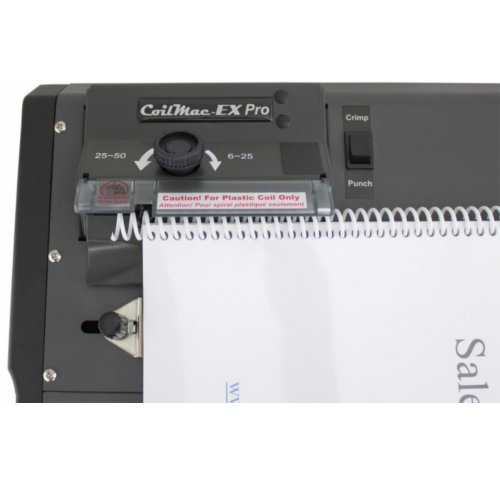

- Depth Margin Control lets you customize your bind for the perfect finish on different book thicknesses

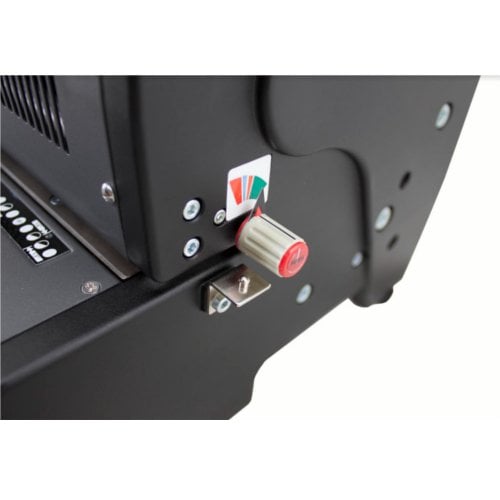

- Reverse Function. Manually reverse the motor with the help of an Allen wrench to remove jams
Compare to Similar Coil Binding Machines
| Model Name | CoilMac-EX Pro 4:1 | CoilMac-EX 4:1 | CoilMac-EX Plus 4:1 | CoilMac EPI | CoilMac EPI+ |
|---|---|---|---|---|---|
| Model |  |
 |
 |
 |
 |
| Pitch | 4:1 | 4:1 | 4:1 | 4:1 | 4:1 |
| Punching Length | 13.5" | 13.5" | 13.5" | 13" (53 holes) | 13" (54 holes) |
| Inserting | Electric (On/Off Switch) | Electric | Electric | Electric | Electric |
| Hole Punch | Oval (4mm x 5mm) | Round (4mm) | Oval (4mm x 5mm) | Round (4mm radius) | Oval (4mm x 5mm) |
| Disengaging Dies | All 54 | Full | Full | 5 | Full |
| Single Punching Capacity | Up to 25 sheets (20 lbs paper) | Up to 25 sheets for 20 lbs paper | Up to 25 sheets for 20 lbs paper | Up to 25 sheets for 20 lbs paper | Up to 25 sheets for 20 lbs paper |
| Binding Capacity | Up to 2" (50mm) | Up to 7/8" | Up to 7/8" | Up to 7/8" | Up to 7/8" |
| Weight / Volume | 55 lbs | 50 lbs. | 50 lbs. | 75 lbs & 2.82 CbFt | 75 lbs & 2.9 CbFt |
