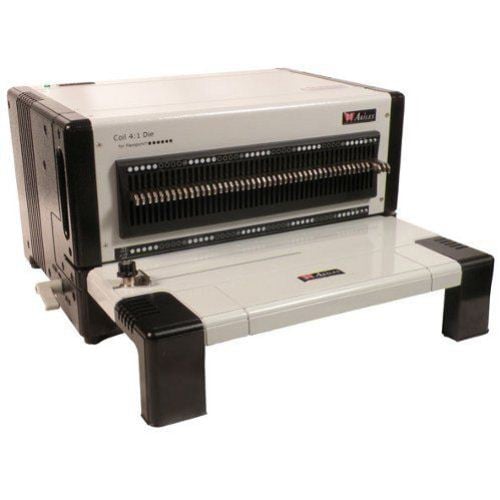

Akiles FlexiPunch-E Electric Modular Interchangeable Die Binding Punch

Name: Akiles FlexiPunch-E Electric Modular Interchangeable Die Binding Punch
Brand: Akiles
SKU: FLEXIPUNCH-E
Rating: 5.0 (1 reviews)

Product Description

The incredible new Akiles FlexiPunch-E is a versatile modular binding punch that is designed as an affordable option for offices that need to use multiple different styles of binding. In fact, it is the least expensive modular electric binding punch available on the market. The FlexiPunch-E allows you to create up to four different hole patterns using easy to change modular punching dies. That means that you can bind a document with spiral coil, then minutes later you can do a project with either wire or comb binding. One punching die of your choice is included with the FlexiPunch-E binding machine and additional die sets are extremely affordable allowing you to expand your machine at any time.

Product Details

Model: FlexiPunch-E
Available Die Sets: Plastic Comb Binding (19 hole rectangular), 2:1 Pitch Wire (square holes), 3:1 Pitch Wire (square holes), 4:1 Pitch Coil (0.2475 Pitch Round Holes)
Operation: Electric Punch with Foot Pedal Control
Punch Capacity: Up to 20 sheets of 20 lbs paper
Punch Length: Twelve inch punching length with open ends for longer sheets
Motor: Heavy-Duty
Fully Disengageable Pins: Yes (on all die sets)
Adjustable Depth Margin: Yes (4-step adjustment)
Machine Dimensions: 17.25" L x 16" W x 9.25" H (machine)
Die Set Dimensions: 16.5" L x 4.75" W x 6.75" H (die set)
Shipping Length:20"
Shipping Width:19"
Shipping Height:14"
Shipping Weight:57 Lbs.
Die Set Weight & Volume: 18 Lbs & 0.76 Cbft
Manufacturer's Warranty: 1 Year Manufacturer Manufacturer's Warranty

Specifications

High Volume Punching Capacity: The heavy duty electric punching mechanism can handle up to twenty sheets of 20lb paper per cycle. Plus, the FlexiPunch-E offers a foot pedal control that allows for two handed punching.
Heavy-Duty Punching Motor: The FlexiPunch-E offers a heavy duty commercial quality electric punching motor that provides more than enough punch power for all die sets and punching patterns.

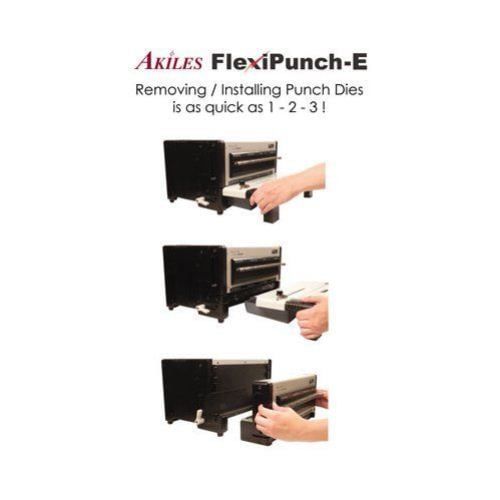

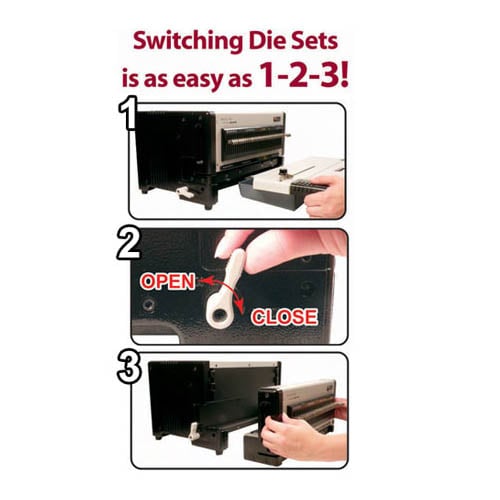

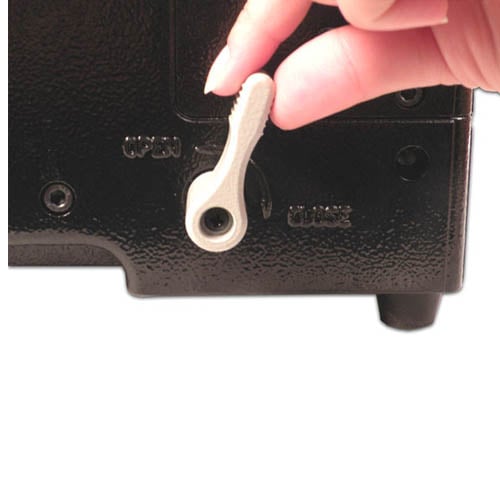

Interchangeable Die Sets: You can easily change from one punching pattern to another. No tools are required and it only takes seconds to switch patterns.

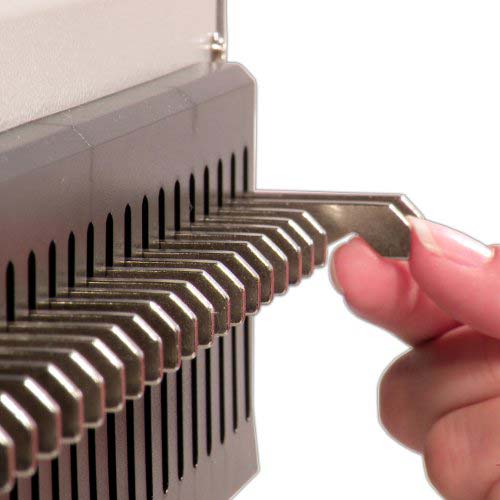

Fully Disengageable Punching Pins: Allows punching of all paper sizes without partially punched holes at either end.
Four Available Punching Patterns: Punching patterns are available for comb punching (rectangular holes), 2:1 pitch twin loop wire binding (square holes), 3:1 pitch twin loop wire binding (square holes) and 4:1 Pitch (0.2475") Round Hole Coil Binding.
Adjustable Depth of Punch Margin Control: Available for all four punching dies, this feature allows you to adjust the distance of the punched holes from the edge of your document.
Twelve Inch Punching Length: The 12" punching length of this document enables easy punching of both letter size or A4 sized documents. You can even punch larger sheet sizes utilizing the open throat design of this machine..
Anti-Jam (Reverse) Feature: When sheet overload is detected or a paper jam occurs, the FlexiPunch-E automatically stops the punching cycle and retracts the punching pins. This will help you to avoid downtime.
Heavy-Duty All Metal Construction: The FlexiPunch-E features a heavy-duty all metal construction, including heavy cast side plates and non-skid feet.
Weight: 51 Lbs
Manufacturer's Warranty: 1 Year Manufacturer's Warranty

Compare to Similar Modular Punch Machines

Model Name

Model

Punching Operation

Available Die Sets

Punching Length

Fully Disengageable Pins

Adjustable Depth Margin

Punching Capacity

Side Margins Control

Punching Margin Control

Machine Dimensions

Die Set Dimensions

Machine Weight & Volume

Die Set Weight & Volume

Warranty

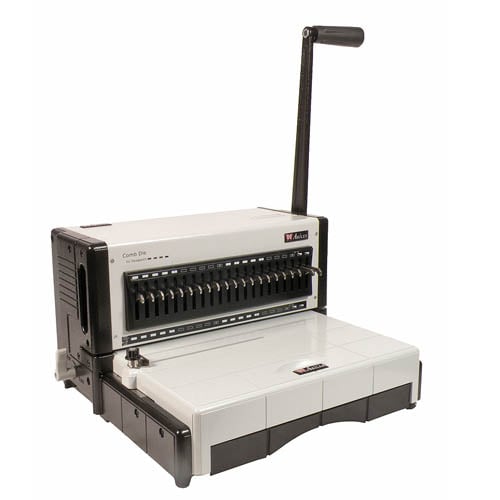

Akiles FlexiPunch-M

Manual

Plastic Comb Binding (19 hole rectangular), 2:1 Pitch Wire (square holes), 3:1 Pitch Wire (square holes), 4:1 Pitch Coil (0.2475 Pitch Round Holes)

12" with open ends for longer sheets

Yes (On all die sets)

Yes (4-step adjustment)

Up to 25 sheets of 20 lbs paper

Included

Included

14.75" L x 20.5" W x 21.25" H

16.5" L x 4.75" W x 6.75" H

24 Lbs & 2.91 Cbft

18 Lbs & 0.76 Cbft

1 Year
Akiles VersaMac Plus

Electric

14 Interchangeable Die Sets (Compatible with VersaMac and VersaMac+)

14" with open ends for longer sheets

Yes (on all die sets)

Yes (4-step adjustment)

500+ Sheets / Min

Included

Included

43" L x 21.5" H x 26" D

N/A

234 lbs & 18.3 CbFt

N/A

3 Year
Akiles FlexiPunch-E

Electric

Plastic Comb Binding (19 hole rectangular), 2:1 Pitch Wire (square holes), 3:1 Pitch Wire (square holes), 4:1 Pitch Coil (0.2475 Pitch Round Holes)

12" with open ends for longer sheets

Yes (on all die sets)

Yes (4-step adjustment)

Up to 20 sheets of 20 lbs paper

Included

Included

17.25" L x 16" W x 9.25" H

16.5" L x 4.75" W x 6.75" H

51 Lbs & 2.91 Cbft

18 Lbs & 0.76 Cbft

1 Year

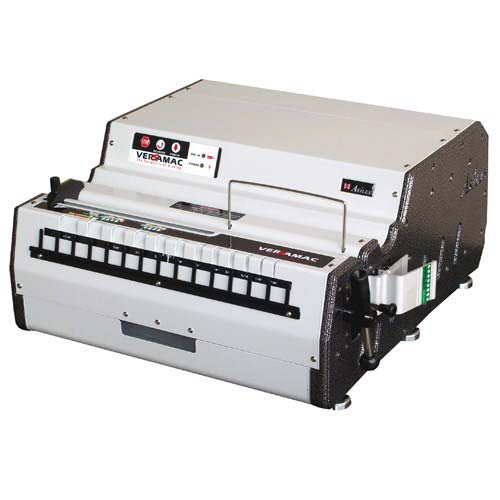

Akiles VersaMac

Electric

3 Hole - 55 Sheets; Velobind - 55 Sheets, 4:1 Coil (Oval / Round) - 35 Sheets, 3:1 Wire (Square) - 35 Sheets, 2:1 Wire (Rectangular) - 35 Sheets, Comb Binding (Rectangular) - 35 Sheets

14" with open ends for longer sheets

Yes (on all die sets)

Yes

Up to 55 sheets of 20lb paper

Included

Included

10.5" H x 18" L x 20.5" W

N/A

110 lbs

N/A

1 Year

Video

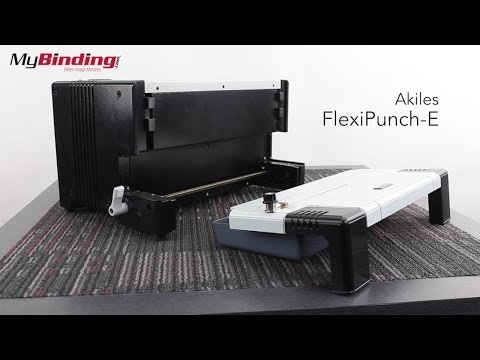

Akiles FlexiPunch-E Demo Video

Transcript :

Welcome to MyBinding video. This is the FlexiPunch-E from Akiles. It doesnâ€™t look like much like this and thatâ€™s because all the magic happens in the interchangeable die. Thereâ€™s a total of 4 binding dies to choose from, all sold separately but swapping them out is almost ridiculously easy and on purchase you get to choose one die that you want. These are shipped in 2 boxes â€“ one with the machine and one with the die. Keep in mind that this is a punching machine, so if you find yourself asking â€œwhat next?â€_x009d_ you might want to consider a different machine but if youâ€™re looking for a quick and easy way to make several different types of punches, then the FlexiPunch-E is a good machine to consider. We also have helpful how-to videos for each interchangeable die. And that is the Akiles FlexiPunch-E. For more demos, reviews and how-toâ€™s, go to MyBinding.com.

Super Awesome

This punching machine is so wonderful. If you want to save stress on your hands and arms this is the way to go. I had previously used a manual punching machine by Akiles, and though this one is dramatically more expensive, it is COMPLETELY worth the extra dollars. It is so easy to use, straightforward, and right out of the box works flawlessly. I bought it with 4:1 coil die, and 3:1 wire die and it is sooooo easy to switch out the dies, and slide out the pins you don't want to punch. Adjusting the side margins is painless, and overall it is just spectacular and highly and easily customizable for the things that I make. I can't tell you just how much I love this machine over the manual machine. It is a beast, so you do want to set it up where you're most likely to use it, but as far as the amount of space it takes up, it's really about the same as the manual machine. The fact that I can punch about 15 sheets at a time might seem slow, but the effort I save my body is great, and it actually goes faster than you might expect, especially if you have everything organized in your workspace to streamline punching and binding.

Reviews in Other Languages

Resources

Akiles Flexipunch Manual.pdf (534 KB) Download
