Product Description
This Challenge heavy duty single cornering machine is ideal for high volume round cornering applications that demand speed, productivity and versatility. Challenge Makes their single cornering machines in two varieties: manual and hydraulic. Whether using the hydraulic or manual model, you will increase your production with the large lift capacity. Challenge cornering machines minimize operator fatigue and provide the power needed for cornering difficult jobs of index and coated stock. Give your jobs that added professional quality with our dependably accurate cuts with each cornering stroke of our single cornering machines.
Product Details
- Handles any size sheet
- Gravity chip disposal with large waste bin
- 6 sizes of cornering knives to choose from
- 4" / 10 cm stack height
- Hydraulic powered cutting
- Plexiglass safety shield
- Energy saving motor turns off between cycles
- Additional Knives and Dies are available.
Specifications

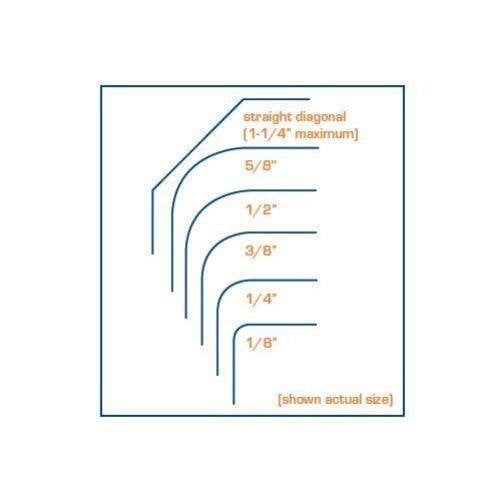

- Available Corner Sizes: 1/8", 1/4", 3/8", 1/2", 5/8", and straight (1-1/4" / 32 mm max., diagonal cut) 3 mm, 6 mm, 10 mm, 13 mm, 16 mm
- Table Depth: 24"/ 61 cm
- Table Width: 20-1/4"/ 51.5 cm
- Table Height: 36"/ 91 cm
- Overall Height: 52"/ 132 cm
- Floor Space Requirement: 24"x 20-1/4"/ 61 x 51.5 cm
- Net Weight: 190 lbs/ 86 kg
- Shipping Weight (Approximate): 265 lbs/ 120 kg
- Electrical CE:
- Standard motor: 1/2 HP., 60 Hz, AC, 115 volts/ 13.5 Amps
- Service size: 20 Amps
- Optional motor: 230 Volts, 50 Hz, 7 Amps
Compare to Similar Challenge Corner Rounders
-
Model NameModelMaximum Lift HeightRange of Lift WidthsCorner Sizes HandledTable DepthTable WidthTable HeightHeight OverallFloor Space RequiredNet WeightShipping WeightStandard MotorService sizeWarranty
-
Challenge Hydraulic Single Cornering Machine
4"/ 10 cmOpen1/8", 1/4", 3/8", 1/2", 5/8", and straight*24"/ 61 cm20-1/4"/ 51.5 cm36"/ 91 cm52"/ 132 cm24"x 20-1/4"/ 61 x 51.5 cm190 lbs/ 86 kg265 lbs/ 120 kg1/2 HP., 60 Hz, AC, 115 volts/ 13.5 Amps20 Amps.1-Year Parts Warranty (Supplies Excluded) -
Challenge Manual Single Cornering Machine2"/ 5 cmOpen1/8", 1/4", 3/8", 1/2", 5/8", and straight*24"/ 61 cm20-1/4"/ 51.5 cm36"/ 91 cm52"/ 132 cm24"x 20-1/4"/ 61 x 51.5 cm145 lbs/ 66 kg220 lbs/ 100 kgN/AN/A1-Year Parts Warranty (Supplies Excluded)
