Product Description

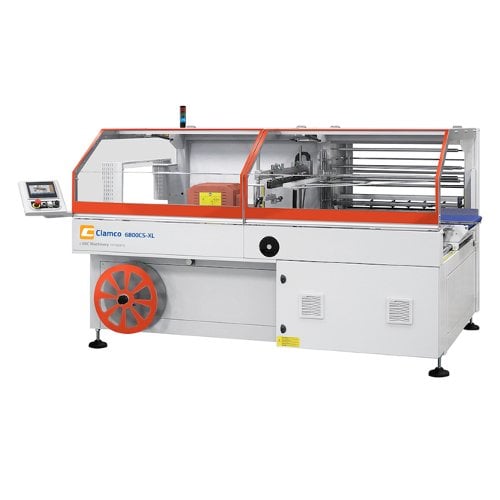

Package products in high speed with 6800CS-XL Side Sealer. This large automatic poly bagger can wrap products with a maximum height of 10". Products are horizontally introduced into the conveyor. A highly efficient system then automatically measures the length of the product being packaged and forms a right-sized poly bag around it. It features a highly efficient all-electric sealer that combines a hot knife end seal with an adjustable seal and trim knife. To complete the packaging and fulfillment process, the machine can print and apply shipping or product identification labels directly on the bag, at the point of packaging. This system is easy to set up, operates with an intuitive program, and offers multiple operating modes for performance and convenience making it the most versatile automatic poly bagger on the market today.
Product Details
- Quiet all-electric smooth operation, no need for air.
- Package speed up to 70 per minute for high production output, dependent on product size and film thickness.
- Smooth Quiet Operation to reduce plant noise levels.
- Easy to navigate interface for operators of most skill levels.
- Display of key packing statistics, including production rate and efficiency.
- Continual monitoring of product length to detect packing errors.
- Film-economizer wheels reduce scrap and improve final package appearance.
- Trim take-up wheel keeps the work area clean.
- Closing conveyor for smooth product transfer.
- Rounded cross seal bar decreases film breakage.
- PTFE-coated side seal works with most shrink films.
- Automatic adjustment of cross seal bar opening based on product height increases wrapping speed.
- Automatic Seal Centering on both side seal and cross seal for enhanced package appearance.
- Manual adjustment of the side sealer for precise side seal centering to produce attractive seals.
- Low powered film cradle with a film inverting plow for easy film loading and threading.
- Quick changeover and 20 program memory allows for product setup in less than five minutes.
- Fully enclosed electrical interlocked guarding ensures operator safety.
- CE Compliant for proper wiring, and safety operations.
- Emergency stop button strategically placed for quick operator response.
- 2 Year Limited Manufacturer Warranty.
Specifications
- Intermittent Motion Side Sealer: up to 70 Cycles Per Minute
- Cross Seal Bar Width (Adjustable Hot Knife Side Seal for clean fine seals): 27.5" Wide
- Maximum Film Width: 33.5", Center Folded
- Maximum Film Roll Diameter: 13.75"
- Maximum Product Height: 10"
- Product Length: Infinite (with additional conveying systems)
- Power Requirements: 220 Volt/1 Phase/15 Amp
- Machine Dimensions: 105"L x 75"W x 65"H
- Machine Weight: 2,100 lbs
- Warranty: 2 Year Limited Manufacturer Warranty
