Product Description

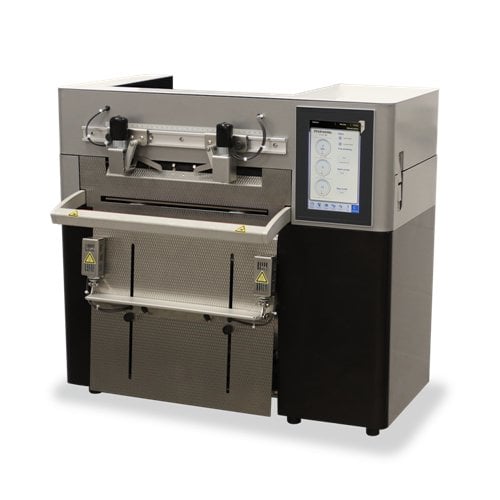

Optimize the bagging process with the Rollbag R785 Automatic Bagger. Do not underestimate this compact bagger as it has the same electronics as the larger floor-standing baggers. The bagger operates at a rate of up to 40 bags/min, making packaging fast for short batch runs. Eliminating the need for compressed air, the bagger does not further modification. Its compact design and small footprint make it easy to move around and set up virtually anywhere with an ordinary electrical outlet. The automatic bagger is engineered to accommodate poly bags on a roll up to 12” wide and 20” long. The high-power sealing magnet creates hermetic seals in poly bags up to 4 mil in thickness. A user-friendly touchscreen interface with the capacity to store up to 50 jobs makes product set-up a breeze. The machine features a seal flattener that automatically stretches the poly bag tight prior to sealing to minimize wrinkles. Other features include an articulating bag that supports heavy products to be handled more easily and a load shelf that can be adjusted to various angles to ensure optimal set-up for bulky products.
Product Details
- Operating Benefits
- Operate with a footswitch, by hand, or in auto cycle mode.
- Adjustable height articulating load shelf to support the bag during packaging (13” max bag length).
- Seal flattener fingers minimize wrinkles in the seal area by stretching the bag prior to selling.
- Print and apply a label directly on the next bag being fed out (optional).
- Compact design takes up minimal footprint in the packaging area.
- 7” color touchscreen with user-friendly interface and clear prompts.
- Set-Up Benefits
- Utilizes Rollbag pre-opened bags-on-a-roll for quick bag size changes and easy set-up.
- PLC with job storage, batch counters, packaging statistics, and login-in levels.
- Ceramic heating element for fast start-up.
- Maintenance Benefits
- Off the shelf modular components for easy replacement.
- Remote networking capability for improved troubleshooting.
- Self-diagnostics ensure quick problem solving.
- Quick service access to all electrical components.
- Comprehensive 5 year warranty (optional).
- Safety Benefits
- Zero force seal bar closing virtually eliminates the chance of injury.
- Low power consumption design (500 Watts).
- CE compliant design for improved safety and troubleshooting.
- Options
- Air Expeller - This device presses against the bag prior to sealing, removing excess air. This option is ideal when there is no vent hole in the bag.
- Label Printer Applicator - An integrated 203dpi industrial label printer applicator. With this option you can automatically print and then apply a label onto the next bag to be fed out.
- FBA Seller Package – Fulfillment made easy with the label template and the equipment to add your label information for each bag to be labeled and sealed.
- Easy Touch Start Sensor – Start the sealing cycle with an optical sensor for improved ergonomics.
- NiceLabel Designer Pro Label Software - While our label printer applicator works with various types of label software, we recommend and support NiceLabel Designer Pro.
- Machine Stand - Adjustable height stand. Available with casters to move machine around.
Specifications
- Speed: Up to 40 bags/min (up to 30 bags/min withlabel printer applicator)
- Bag Width: 2" - 12"
- Bag Length: 3" - 20"
- Bag Gauge: 1 – 4 mil (10" max roll diameter)
- Seal Width: 1/8"
- Seal Bar Opening: 4"
- Dimensions: 26" W x 18" D x 24" H (24” D with label printer applicator)
- Weight: 105 lbs
- Electrical: 120V,5A
- Warranty: 1 Year Limited Manufacturer's Warranty, extended up to 5 years when using Rollbag material
