We're sorry, but we no longer offer this item.
Call us at 1-800-944-4573 for personalized recommendations
check out these similar items that may be a good fit
Product Description

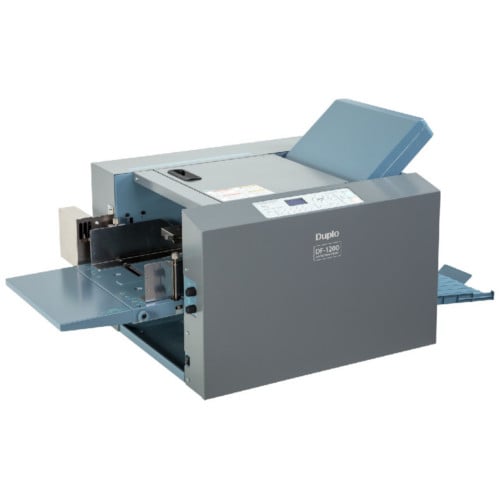

The Duplo DF-1200 Air Suction Paper Folder provides the perfect tabletop solution for folding offset and digitally printed documents. With a production speed of up to 260 sheets per minute, the DF-1200 utilizes Duplo's renowned suction feed technology to handle static build-up in digital print applications and also comes equipped with Optical Double Feed Detection to ensure personalized jobs are folded one sheet at a time. Fully automated and quiet in operation, the DF-1200 is ideal for any office environment. The DF-1200 comes pre-programmed with six standard fold types including single, double, half accordion, letter, accordion, and gate - enabling users to fold a wider range of applications at the touch of a button. The DF-1200 automatically detects five of the most popular paper sizes from letter, legal, ledger, half letter and half legal, and sets the pre-programmed fold position without any adjustments required. Users can also create custom fold styles with non-standard paper sizes simply by moving the fold plates via the user-friendly control panel and save them into one of the 20 job memories. Further extending its capabilities, the DF-1200 comes standard with a cross folding unit to reprocess single folded sheets into right angle folds.
Product Details
- Paper Size: 4.73" x 7.17" - 12.24" x 18"
- Paper Weight: 52 - 230 gsm (Varies upon paper grain and fold type)
- Speed: Up to 260 sheets per minute (Letter size 80 gsm bond paper single fold)
- Fedding Tray Capacity: Up to 625 sheets 64 gsm
- Paper Quality: Bond, NCR, offset, cover stock, and coated paper
- Folding Modes: Single, double, half accordion, letter, accordion, gate, custom
- Counter: Ascending, descending, and batch mode
- Features: Superior suction feeding system; Easy operation with high production; High quality finished documents with crisp and accurate folding; Double sheet detection; Low noise level; Sound absorbers; Wireless plate; Five speed levels; Test button; Power save mode
- Noise Level: 74.3 db
- Feeding Mechanism: Air suction belt
- Custom Fold Memory: 20
- Power Supply: 100V - 240V 50/60Hz
- Power Consumption: 1.0 - 0.5A (88W)
- Dimensions (L x W x H): 46.97" x 23.11" x 21.30"
- Weight: 144.4 lbs.
- Warranty:1 year on mechanical parts / 90 days on electrical parts / 90 days on consumable parts
- Part Number: DF-1200
Specifications
- Air suction feed system ideal for digital print documents
- Miss-feed, paper jam, and optical double feed detections ensure document integrity
- Standard cross folding unit for right angle folds
- Six pre-programmed fold styles
- High speed folding up to 260 sheets per minute
- 20 job memories for cust om folds
- Automatic paper size detection and fold plate setting for faster set up
- Sound absorbers for quiet operation
- 625-sheet feed tray capacity
- Optional Side Air Kit
Compare to Similar Duplo Paper Folders
-
Product NameModelPaper SizePaper TypePaper WeightFold TypesFeed Tray CapacitySpeedPaper Feed MethodCounterNoise LevelCustom Fold MemoryFeaturesDetection FunctionPower SupplyDimension (W x D x H)Weight
-
Duplo DF-850
3.59" x 5.04" to 11.7" x 17"Bond, NCR, some art/coated paper52.3 - 157 gsm / 14 - 41 lbs. (129.9 gsm/34 lbs. paper cannnot be cross folded)Single, double, half accordion, letter, accordion, gate Special cross fold (two passes, paper thickness 14 to 28 lbs.) and custom folds1.8", up to 500 sheets (64 gsm/17 lb.)Up to 241 sheets per minute (letter size)Patented friction-feed with skew correctionAscending 4-digit, descending 3-digitN/AN/AN/AOpening/closing of top cover, no paper, miss feed, paper jam, paper feed tray position120V / 60Hz/ 0.85AIn use: 35.4" x 18.9" x 21.07" In storage: 25" x 19" x 22"69.5 lbs. -
Duplo DF-990A
2.91" x 4.13" to 12.24"x 18.00"Bond, NCR, offset, cover stock, and some coated paperUncoated fine quality: 46.5 to 157 gsm. Coated: 84.9 to 127.9 gsmSingle, double, half accordion, letter, accordion, gate, customSingle, double, half accordion, letter, accordion, gate, customUp to 260 sheets per minute (Letter size 81.4 gsm bond paper single fold)FrictionAscending and descending72 db15Automatic fold position setting; Sound absorbers; Wire-free plate; Five speed levels; Test button; Power save mode;N/A100V - 240V 50/60Hz41" x 20" x 2095 lbs. -
Duplo DF-1200
4.73" x 7.17" - 12.24" x 18"Bond, NCR, offset, cover stock, and coated paper52 - 230 gsm (Varies upon paper grain and fold type)Single, double, half accordion, letter, accordion, gate, customUp to 625 sheets 64 gsmUp to 260 sheets per minute (Letter size 80 gsm bond paper single fold)Air suction beltAscending, descending, and batch mode74.3 db20Superior suction feeding system; Easy operation with high production; High quality finished documents with crisp and accurate folding; Double sheet detection; Low noise level; Sound absorbers; Wireless plate; Five speed levels; Test button; Power save modeDetection Function100V - 240V 50/60Hz46.97" x 23.11" x 21.30"144.4 lbs. -
Duplo DF-999A
2.91" x 4.13" - 12.24" x 18.00"Bond, NCR, offset, cover stock, and some coated paper46.5 - 157.0 gsmSingle, double, half accordion, letter, accordion, gate, custom1.8" (up to 500 sheets of 64 gsm)Up to 260 sheets per minute (Letter size 81.4 gsm bond paper single fold)FrictionAscending and descending71 db30Automatic fold position setting; Re-fold function; Automatic paper size detection; Automatic tray up/down; Interval function; Sound absorbers; Wire-free plate; Five speed levels; Test button; Power save mode.N/A100V - 240V 50/60Hz41.19" x 20.16" x 19.45"91.8 lbs. -
Duplo DF-870
3.59" x 5.04" to 11.69" x 17"Uncoated, some coated stocks52.3 - 157 gsm/14 - 41 lbs.Single/half, double, irregular accordion, letter, accordion (Z), gate, custom and cross folds500 sheets of 64 gsm (17 lbs.)Up to 241 sheets per minute (letter size)N/AN/AN/AN/AN/ATop cover open, no paper, miss-feed, jam, feed tray position120 50/60Hz 1.3 - 0.65A 125WIn use: 35.4" x 18.9" x 21.07" / In storage: 25" x 19" x 22"75.0 lbs -
Duplo DF-1300L
4.73” x 7.2” – 12.2” x 25.5” (120 mm x 183 mm – 310 mm x 648 mm)Uncoated paper, Coated paperUncoated paper: 52.3 to 157 gsm/14 – 40 lb
Coated paper: 73.3 to 157 gsm/19 – 40 lb
(Up to 230 gsm with limitations. Testing is required)Single, double, half accordion, letter, accordion, gate, custom1.96” (625 sheets/64 gsm)to 310 sheets per minute (Letter size, 81.4 gsm, bond paper, single fold)Air suction beltAscending, descending, and batch mode77 dB30Air suction feed system, optical and ultrasonic double feed detection sensors, sound absorbers, low noise level, wireless plate, five speed levels, test button, power save mode, automatic paper size detection and fold plate setting, side airDetection Function100V – 240V 50/60Hz 1.9-0.8A 190W53.3” x 23.2” x 24.2” (1354 mm x 589 mm x 615 mm)157 lb/71 kg
