Product Description

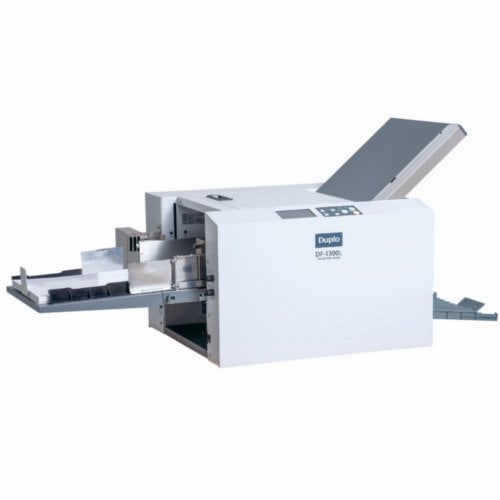

With oversized printing going mainstream, DF-1300L Air Suction Paper Folder offers expanded capabilities to handle longer and larger documents. The innovative air suction folder is perfect for large format presses looking for professional solutions in folding large format prints such as tri-fold brochures, letter landscape guides, newsletters, menus, invoices, flyers, and other documents sized up to 25.5” in length. The large format of sheets does not slow down the folder, in fact, it is capable of speed folding 310 sheets per minute. Air suction feed system with side air can feed coated sheets such as bond, NCR, offset and other sheets up to 230 gsm, the same system automatically detects paper size and fold plate settings. Six common fold types are already pre-programmed as well as the standard cross fold. Optical and ultrasonic sensors monitor each sheet and detect double feeds, this system all work together in high-speed folding of larger sheets. The efficiency and speed of the folder makes it perfect for corporate, school, church, medical offices, and digital print shops. For fast and professional folding of large format documents, consider DF-1300L Air Suction Folder from Duplo, the leader in automated paper folders.
Product Details
- Paper Size: 4.73” x 7.2” – 12.2” x 25.5” (120 mm x 183 mm – 310 mm x 648 mm)
- Paper Weight:
- Uncoated paper: 52.3 to 157 gsm/14 – 40 lb
- Coated paper: 73.3 to 157 gsm/19 – 40 lb
- (Up to 230 gsm with limitations. Testing is required)
- Speed Up: to 310 sheets per minute (Letter size, 81.4 gsm, bond paper, single fold)
- Feed Capacity: 1.96” (625 sheets/64 gsm)
- Paper Quality: Bond, NCR, offset, cover stock, and coated paper
- Folding Modes: Single, double, half accordion, letter, accordion, gate, custom
- Counter: Ascending, descending, and batch mode
- Features: Air suction feed system, optical and ultrasonic double feed detection sensors, sound absorbers, low noise level, wireless plate, five speed levels, test button, power save mode, automatic paper size detection and fold plate setting, side air
- Feed Mechanism: Air suction belt
- Sound Level: 77 dB
- Custom Fold Memory: 30
- Power Requirements: 100V – 240V 50/60Hz 1.9-0.8A 190W
- Dimensions (W x D x H): 53.3” x 23.2” x 24.2” (1354 mm x 589 mm x 615 mm)
- Net Weight: 157 lb/71 kg
Specifications
- High speed folding up to 310 sheets per minute
- Handles larger formats up to 12.2” x 25.5”
- Automatic paper size detection and fold plate setting
- Air suction feed system with side air
- Standard cross folding capability
Compare to Similar Duplo Paper Folders
-
Product NameModelPaper SizePaper TypePaper WeightFold TypesFeed Tray CapacitySpeedPaper Feed MethodCounterNoise LevelCustom Fold MemoryFeaturesDetection FunctionPower SupplyDimension (W x D x H)Weight
-
Duplo DF-850
3.59" x 5.04" to 11.7" x 17"Bond, NCR, some art/coated paper52.3 - 157 gsm / 14 - 41 lbs. (129.9 gsm/34 lbs. paper cannnot be cross folded)Single, double, half accordion, letter, accordion, gate Special cross fold (two passes, paper thickness 14 to 28 lbs.) and custom folds1.8", up to 500 sheets (64 gsm/17 lb.)Up to 241 sheets per minute (letter size)Patented friction-feed with skew correctionAscending 4-digit, descending 3-digitN/AN/AN/AOpening/closing of top cover, no paper, miss feed, paper jam, paper feed tray position120V / 60Hz/ 0.85AIn use: 35.4" x 18.9" x 21.07" In storage: 25" x 19" x 22"69.5 lbs. -
Duplo DF-990A
2.91" x 4.13" to 12.24"x 18.00"Bond, NCR, offset, cover stock, and some coated paperUncoated fine quality: 46.5 to 157 gsm. Coated: 84.9 to 127.9 gsmSingle, double, half accordion, letter, accordion, gate, customSingle, double, half accordion, letter, accordion, gate, customUp to 260 sheets per minute (Letter size 81.4 gsm bond paper single fold)FrictionAscending and descending72 db15Automatic fold position setting; Sound absorbers; Wire-free plate; Five speed levels; Test button; Power save mode;N/A100V - 240V 50/60Hz41" x 20" x 2095 lbs. -
Duplo DF-1200
4.73" x 7.17" - 12.24" x 18"Bond, NCR, offset, cover stock, and coated paper52 - 230 gsm (Varies upon paper grain and fold type)Single, double, half accordion, letter, accordion, gate, customUp to 625 sheets 64 gsmUp to 260 sheets per minute (Letter size 80 gsm bond paper single fold)Air suction beltAscending, descending, and batch mode74.3 db20Superior suction feeding system; Easy operation with high production; High quality finished documents with crisp and accurate folding; Double sheet detection; Low noise level; Sound absorbers; Wireless plate; Five speed levels; Test button; Power save modeDetection Function100V - 240V 50/60Hz46.97" x 23.11" x 21.30"144.4 lbs. -
Duplo DF-999A
2.91" x 4.13" - 12.24" x 18.00"Bond, NCR, offset, cover stock, and some coated paper46.5 - 157.0 gsmSingle, double, half accordion, letter, accordion, gate, custom1.8" (up to 500 sheets of 64 gsm)Up to 260 sheets per minute (Letter size 81.4 gsm bond paper single fold)FrictionAscending and descending71 db30Automatic fold position setting; Re-fold function; Automatic paper size detection; Automatic tray up/down; Interval function; Sound absorbers; Wire-free plate; Five speed levels; Test button; Power save mode.N/A100V - 240V 50/60Hz41.19" x 20.16" x 19.45"91.8 lbs. -
Duplo DF-870
3.59" x 5.04" to 11.69" x 17"Uncoated, some coated stocks52.3 - 157 gsm/14 - 41 lbs.Single/half, double, irregular accordion, letter, accordion (Z), gate, custom and cross folds500 sheets of 64 gsm (17 lbs.)Up to 241 sheets per minute (letter size)N/AN/AN/AN/AN/ATop cover open, no paper, miss-feed, jam, feed tray position120 50/60Hz 1.3 - 0.65A 125WIn use: 35.4" x 18.9" x 21.07" / In storage: 25" x 19" x 22"75.0 lbs -
Duplo DF-1300L
4.73” x 7.2” – 12.2” x 25.5” (120 mm x 183 mm – 310 mm x 648 mm)Uncoated paper, Coated paperUncoated paper: 52.3 to 157 gsm/14 – 40 lb
Coated paper: 73.3 to 157 gsm/19 – 40 lb
(Up to 230 gsm with limitations. Testing is required)Single, double, half accordion, letter, accordion, gate, custom1.96” (625 sheets/64 gsm)to 310 sheets per minute (Letter size, 81.4 gsm, bond paper, single fold)Air suction beltAscending, descending, and batch mode77 dB30Air suction feed system, optical and ultrasonic double feed detection sensors, sound absorbers, low noise level, wireless plate, five speed levels, test button, power save mode, automatic paper size detection and fold plate setting, side airDetection Function100V – 240V 50/60Hz 1.9-0.8A 190W53.3” x 23.2” x 24.2” (1354 mm x 589 mm x 615 mm)157 lb/71 kg
