Product Description

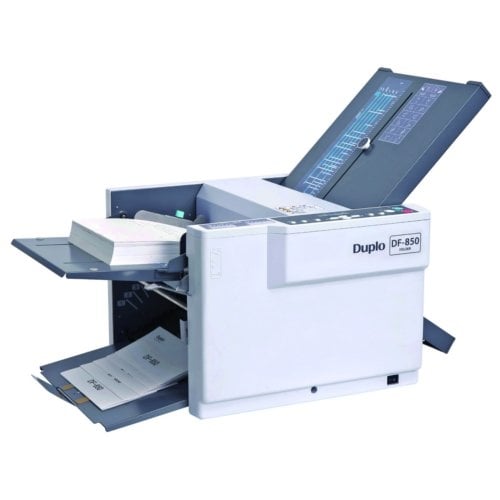

Duplo's DF-850 Tabletop Paper Folder provides a fast, affordable and user-friendly solution for your folding needs at office, church and school. It can fold documents such as brochures, menus, letters and invoices at a rate of up to 241 letter size sheets per minute. It can also process a minimum paper size of 3.59" x 5.04" (91 x 128mm). The DF-850 can perform single, double, half accordion, letter, accordion, and gate folds. Plus, cross folding for right angle folds is also possible. A wider range of paper stock up to 157 gsm can be fed with increased accuracy and consistency, with DF-850's patented friction feed system and adjustable paper and feed separator pressure controls. Non-stop productivity is also ensured with an ascending/descending counter and a 500-sheet feed tray capacity. Make your paper folding jobs quick and easy with Duplo DF-850 Friction-Feed Tabletop Paper Folder.
Product Details
- Paper Size (W x L): 3.59" x 5.04" to 11.7" x 17"
- Paper Type: Bond, NCR, some art/coated paper
- Paper Weight: 52.3 - 157 gsm / 14 - 41 lbs. (129.9 gsm/34 lbs. paper cannnot be cross folded)
- Fold Types: Single, double, half accordion, letter, accordion, gate Special cross fold (two passes, paper thickness 14 to 28 lbs.) and custom folds
- Feed Tray Capacity: 1.8", up to 500 sheets (64 gsm/17 lb.)
- Speed: Up to 241 sheets per minute (letter size)
- Paper Feed Method: Patented friction-feed with skew correction
- Counter: Ascending 4-digit, descending 3-digit
- Detection Function: Opening/closing of top cover, no paper, miss feed, paper jam, paper feed tray position
- Power Supply: 120V / 60Hz/ 0.85A
- Dimension (W x D x H): In use: 35.4" x 18.9" x 21.07" In storage: 25" x 19" x 22"
- Weight: 69.5 lbs.
Specifications
- Folds up to 241 sheets per minute.
- 500-sheet feed capacity.
- Performs six of the most common folds and custom folds.
- Can process a minimum paper size of 3.59" x 5.04" (91 x 128mm)
- Cross folding feature for right angle folds.
- Ascending and descending count.
- Test button folds two sheets for inspection.
- Interval/batch modes.
- Compact, reliable and energy saving.
Compare to Similar Duplo Paper Folders
-
Product NameModelPaper SizePaper TypePaper WeightFold TypesFeed Tray CapacitySpeedPaper Feed MethodCounterNoise LevelCustom Fold MemoryFeaturesDetection FunctionPower SupplyDimension (W x D x H)Weight
-
Duplo DF-850
3.59" x 5.04" to 11.7" x 17"Bond, NCR, some art/coated paper52.3 - 157 gsm / 14 - 41 lbs. (129.9 gsm/34 lbs. paper cannnot be cross folded)Single, double, half accordion, letter, accordion, gate Special cross fold (two passes, paper thickness 14 to 28 lbs.) and custom folds1.8", up to 500 sheets (64 gsm/17 lb.)Up to 241 sheets per minute (letter size)Patented friction-feed with skew correctionAscending 4-digit, descending 3-digitN/AN/AN/AOpening/closing of top cover, no paper, miss feed, paper jam, paper feed tray position120V / 60Hz/ 0.85AIn use: 35.4" x 18.9" x 21.07" In storage: 25" x 19" x 22"69.5 lbs. -
Duplo DF-990A
2.91" x 4.13" to 12.24"x 18.00"Bond, NCR, offset, cover stock, and some coated paperUncoated fine quality: 46.5 to 157 gsm. Coated: 84.9 to 127.9 gsmSingle, double, half accordion, letter, accordion, gate, customSingle, double, half accordion, letter, accordion, gate, customUp to 260 sheets per minute (Letter size 81.4 gsm bond paper single fold)FrictionAscending and descending72 db15Automatic fold position setting; Sound absorbers; Wire-free plate; Five speed levels; Test button; Power save mode;N/A100V - 240V 50/60Hz41" x 20" x 2095 lbs. -
Duplo DF-1200
4.73" x 7.17" - 12.24" x 18"Bond, NCR, offset, cover stock, and coated paper52 - 230 gsm (Varies upon paper grain and fold type)Single, double, half accordion, letter, accordion, gate, customUp to 625 sheets 64 gsmUp to 260 sheets per minute (Letter size 80 gsm bond paper single fold)Air suction beltAscending, descending, and batch mode74.3 db20Superior suction feeding system; Easy operation with high production; High quality finished documents with crisp and accurate folding; Double sheet detection; Low noise level; Sound absorbers; Wireless plate; Five speed levels; Test button; Power save modeDetection Function100V - 240V 50/60Hz46.97" x 23.11" x 21.30"144.4 lbs. -
Duplo DF-999A
2.91" x 4.13" - 12.24" x 18.00"Bond, NCR, offset, cover stock, and some coated paper46.5 - 157.0 gsmSingle, double, half accordion, letter, accordion, gate, custom1.8" (up to 500 sheets of 64 gsm)Up to 260 sheets per minute (Letter size 81.4 gsm bond paper single fold)FrictionAscending and descending71 db30Automatic fold position setting; Re-fold function; Automatic paper size detection; Automatic tray up/down; Interval function; Sound absorbers; Wire-free plate; Five speed levels; Test button; Power save mode.N/A100V - 240V 50/60Hz41.19" x 20.16" x 19.45"91.8 lbs. -
Duplo DF-870
3.59" x 5.04" to 11.69" x 17"Uncoated, some coated stocks52.3 - 157 gsm/14 - 41 lbs.Single/half, double, irregular accordion, letter, accordion (Z), gate, custom and cross folds500 sheets of 64 gsm (17 lbs.)Up to 241 sheets per minute (letter size)N/AN/AN/AN/AN/ATop cover open, no paper, miss-feed, jam, feed tray position120 50/60Hz 1.3 - 0.65A 125WIn use: 35.4" x 18.9" x 21.07" / In storage: 25" x 19" x 22"75.0 lbs -
Duplo DF-1300L
4.73” x 7.2” – 12.2” x 25.5” (120 mm x 183 mm – 310 mm x 648 mm)Uncoated paper, Coated paperUncoated paper: 52.3 to 157 gsm/14 – 40 lb
Coated paper: 73.3 to 157 gsm/19 – 40 lb
(Up to 230 gsm with limitations. Testing is required)Single, double, half accordion, letter, accordion, gate, custom1.96” (625 sheets/64 gsm)to 310 sheets per minute (Letter size, 81.4 gsm, bond paper, single fold)Air suction beltAscending, descending, and batch mode77 dB30Air suction feed system, optical and ultrasonic double feed detection sensors, sound absorbers, low noise level, wireless plate, five speed levels, test button, power save mode, automatic paper size detection and fold plate setting, side airDetection Function100V – 240V 50/60Hz 1.9-0.8A 190W53.3” x 23.2” x 24.2” (1354 mm x 589 mm x 615 mm)157 lb/71 kg
