Product Description

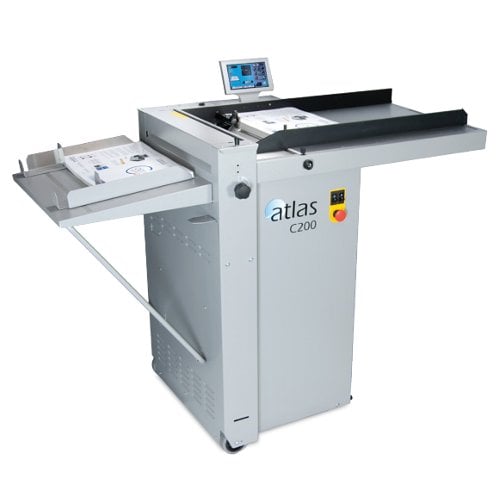

This Formax Atlas C200 High-Speed Automatic Creaser is a fully-automatic, user-friendly creaser that will solve the problem of cracking in toner-based digital prints. Utilizing a unique creasing matrix, it compresses paper fibers instead of cutting them, virtually eliminating cracks on a creased or folded edge. With its graphics-based 7" touchscreen control panel, operators can easily set-up and save jobs in just minutes or use one of the six pre-programmed settings. The C200 automatically calculates the crease positions based on paper size and sets them accordingly. The powerful bottom-suction air-feed system allows for continuous loading of sheets, which increases productivity while maintaining accuracy, even with heavier stocks. This automatic creaser offers variable speed control to accommodate a wide variety of sheet sizes and thicknesses. The Atlas C200 is capable on producing up to 16 creases per sheet, can process up to 8,500 (8.5” x 11”) letter-size sheets or up to 11,000 (6.5” x 8.5”) sheets per hour, and can accommodate sheets up to 27.5" x 19.6" in size. Plus, this Formax Atlas C200 High-Speed Automatic Creaser has a standard perforating capabilities with a wide range of perf wheels to suit many different applications.
Product Details

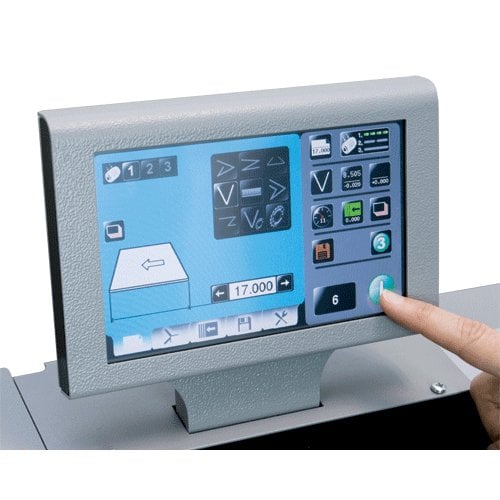

- Color touchscreen control panel.
- Fully automatic setup.
- Creases up to 8,500 sheets per hour.
- Up to 16 creases per sheet.
- Accommodates sheets up to 27.5" x 19.6".
- Unlimited programmable jobs.

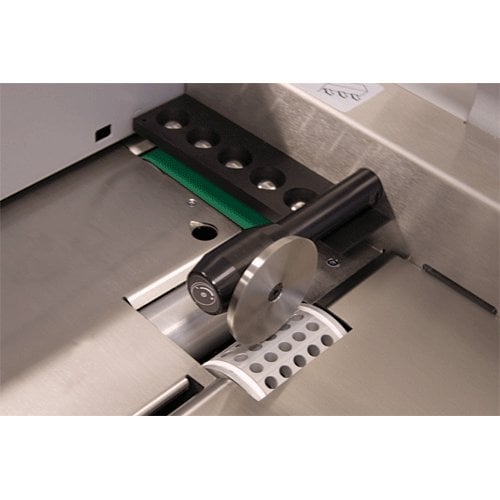

- Includes a single perforating kit.
- Options: extension tray, slitting and perforating wheels, narrow creasing matrix.
- Lifetime guaranteed creaser matrix.
Specifications
- Speed: Up to 8,500 sheets per hour * (8.5" x 11")
Up to 11,000 sheets per hour * (6.5" x 8.5") - Sheet Size: Max: 27.5" x 19.6" (35.4" x 19.6" w/optional extension table)
Min: 8.2" x 5.5" - Paper Thickness: Max: 0.015" (approx. 400gsm)
Min: 0.004" (approx. 75gsm) - Creases per Sheet: Up to 16
- Minimum Repeat Crease Distance: 0.03" (depending on paper weight)
- Minimum Crease Distance from Leading Edge: 0.09"
- Minimum Crease Distance from Trailing Edge: 1.37"
- Programmable Jobs: Unlimited
- Dimensions: 59" L x 26.8" W x 48" H
- Weight: 344 lb
- Power: 240V 50/60hz
- Warranty: 90 day limited warranty on parts, excluding wearables and labor
Compare to Similar Creasers
-
Model NameModelSpeedSheet SizePaper ThicknessFolds per SheetFeed CapacityPaper WeightPaper SizesMinimum Repeat Crease DistanceMinimum Repeat Fold DistanceMinimum Crease Distance from Leading EdgeMinimum Fold Distance from Leading EdgeMinimum Crease Distance from Trailing EdgeMinimum Fold Distance from Trailing EdgeMinimum Fold LengthProgrammable JobsDimensionsWeightPowerWarranty
-
Atlas-TRIO15
24-up business cards, up to 8 sheets/minute
4-up postcards (12" x 18"), up to 10 sheets/minute
2 cut / 2 slit / 1 crease (8.5" x 11"), up to 15 sheets/minute
1 crease (8.5" x 11"), up to 5,000 sheets/hourPile height up to 4"N/AN/APile height up to 4"32# bond - 130# cover (120-350 gsm)8.2" - 13" W x 8.2" - 19" L (13" W x 27.5" L with optional long sheet kit)N/AN/AN/AN/AN/AN/AN/AUp to 15033" W x 31" D x 43" H (footprint: 63" W x 31" D)440 lbs.120 VAC90 day warranty on parts and labor -
Atlas C150
Up to 8,500 sheets per hour * (8.5” x 11”)Max: 27.5” x 15” (51” X 15” w/std. extension table)
Min: 8.2” x 3.89”Max: 0.015” (400gsm)
Min: 0.0035” (75gsm)Up to 30N/AN/AN/A0.0039” (depending on paper weight)N/AN/AN/AN/AN/AN/AUnlimited66.5” L x 28.7” W x 45.7” H (100” L x 28.7” W x 45.7” H)551 lb.100-240V, 50/60Hz, 8-4A90-Day Warranty -
Atlas C102
Up to 8,500 sheets per hour (8.5" x 11")
Up to 11,000 sheets per hour (6.5" x 8.5")Max: 35" x 13", Min: 8.3" x 5.5"Max: 0.015" (approx. 400gsm)
Min: 0.004" (approx. 80gsm)Up to 16N/AN/AN/A0.03" (depending on paper weight)N/A0.09"N/A1.37"N/AN/A5075.4" L x 20.5" W x 48" H267 lb220V, 50/60hz, 15A, NEMA 6-15P90 day limited warranty on parts. Excluding wearables and labor. -
Atlas C200
Up to 8,500 sheets per hour * (8.5" x 11")
Up to 11,000 sheets per hour * (6.5" x 8.5")Max: 27.5" x 19.6" (35.4" x 19.6" w/optional extension table)
Min: 8.2" x 5.5"Max: 0.015" (approx. 400gsm)
Min: 0.004" (approx. 75gsm)Up to 16N/AN/AN/A0.03" (depending on paper weight)N/A0.09"N/A1.37"N/AN/AUnlimited59" L x 26.8" W x 48" H344 lb240V 50/60hz90 day limited warranty on parts. Excluding wearables and labor. -
Atlas C300
Up to 6,000 sheets per hour * (8.5" x 11.5")Max: 27.5" x 15.1" (35.4" x 15.1" w/optional extension table)
Min: 8.2" x 5.5"Max: 0.015" (approx. 400gsm)
a Min: 0.004" (approx. 75gsm)Up to 2N/AN/AN/A1.57" (depending on paper weight)2.75" (depending on paper weight)1.96"1.96"1.96"1.96"2.75"Unlimited79.5" L x 26.7" W x 49.8" H419 lb240V 50/60hz90 day limited warranty on parts. Excluding wearables and labor.
