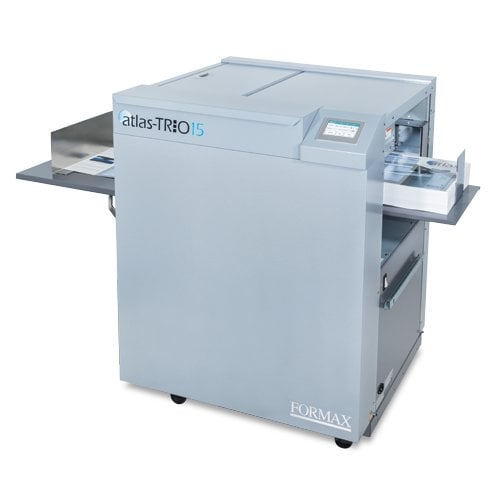

Formax Atlas-TRIO15 Multi-Function Slitter-Cutter-Creaser

Name: Formax Atlas-TRIO15 Multi-Function Slitter-Cutter-Creaser
Brand: Formax
SKU: Atlas-TRIO15

$27,950.00

Price Match Guarantee*

Quantity

Need Shopping Advice?
Call - (800)944-4573

Item# ATLAS-TRIO15

High-speed processing: Achieve up to 5,000 sheets per hour for creasing and 24-up business cards in just minutes.
Innovative upper-belt tri-suction feeding system: Ensures accurate handling of large and heavy stocks, preventing misfeeds.
Versatile media compatibility: Accommodates a wide range of paper sizes and weights, from 32# bond to 130# cover.
Advanced cut-mark registration and double-feed detection: Guarantees consistent, professional results while minimizing waste.

Product Description

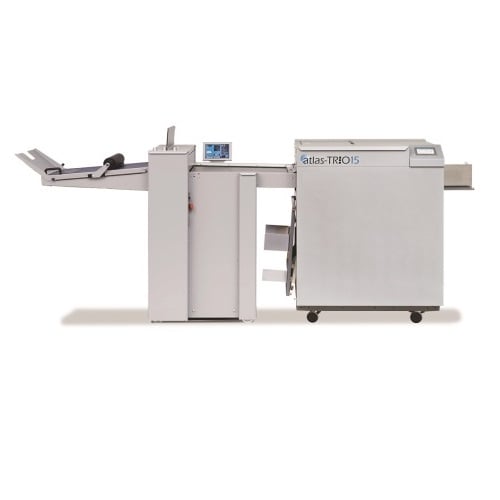

The Formax Atlas-TRIO15 allows users to slit, cut, crease and even fold in a single pass. Its production speeds vary based on media size and finished output: up to 250 business cards in under 2 minutes, single-crease jobs up to 5,000/hour. The Atlas-TRIO15 uses an upper-belt tri-suction feeding system, and a feed table which automatically elevates, giving it the ability to process sheets up to 13" W x 27.5" L, in weights from 120-350 gsm. The 4" touchscreen control panel provides three modes for various job requirements: Preset, for the most common formats and sizes, Manual, which modifies preset jobs, and Flex mode for the greatest customization. It also stores up to 150 custom jobs, for quick and easy recall. Standard features include double-feed detection, cut-mark registration, side alignment guide, skew adjustment and two standard slitting guides. Custom slitting guides are also available. This powerful combination enables users to cut the lead and trailing edges, bleed trim the top and bottom, crease and fold, for stunning professional output. The ATLAS-TRIO-15 is ideal for high-speed creasing and production of a wide range of jobs including business cards, postcards, brochures, booklet covers, greeting cards and more. High-speed output, user friendly controls and the ability to handle large media sizes make the ATLAS-TRIO15 a great complement to your everyday digital print finishing jobs.

Product Details

High-Speed Cutting/Slitting: Up to eight 12" x 18" sheets per minute (24-up business cards)

High-Speed Creasing: Up to 5,000 letter-size sheets per hour

Powerful Feed System: Upper belt tri-suction feeding accurately handles large and heavy stocks

4" Color Touchscreen: Program and make adjustments easily with graphics-based menus and three modes - preset, manual and custom/flex

Pre-Set and Programmable Jobs: Up to 150 custom jobs can be saved for quick recall

Single-Pass Processing: Slit, cut and crease in one streamlined process

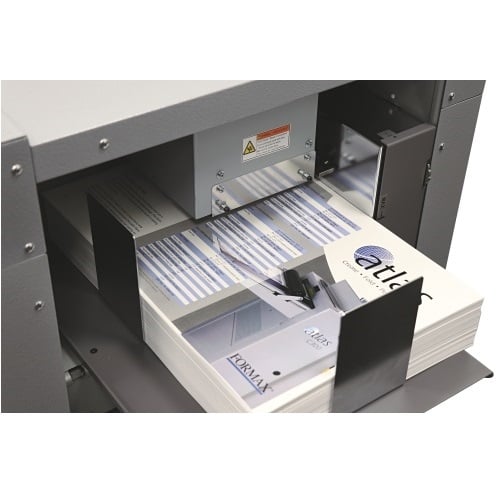

Elevating Feed Table: Automatically elevates to separate printed sheets to prevent misfeeds or roller marks on finished pieces

Two Standard Slitting Guides: For common applications including business cards, postcards and bleed trim jobs

Cut-Mark Sensor: Reads any image drift, then registers to ensure consistent finishing on each sheet

Double-Feed Detection: Avoids wasting valuable printed stock.

Creasing/Slitting Examples

13" x 19" Sheet: 24-up business cards, 12-up business cards with single crease, 2-up letter, 1-up ledger, 1-up single crease ledger, and more
12" x 18" Sheet: 24-up business cards, 12-up business cards with single crease, 4-up postcards, 1-up single crease ledger, and more
11" x 17" Sheet: 4-up postcard, single crease ledger

Options

Custom Slitting Guides: Designed to match your specific job needs
Long Sheet Kit: Accommodates paper sizes up to 13" W x 27.5" L

Specifications

Speed:

24-up business cards, up to 8 sheets/minute
4-up postcards (12" x 18"), up to 10 sheets/minute
2 cut / 2 slit / 1 crease (8.5" x 11"), up to 15 sheets/minute
1 crease (8.5" x 11"), up to 5,000 sheets/hour

Feed Capacity: Pile height up to 4"

Paper Sizes: 8.2" - 13" W x 8.2" - 19" L (13" W x 27.5" L with optional long sheet kit)

Paper Weight: 32# bond - 130# cover (120-350 gsm)

Programmable jobs: Up to 150

Dimensions: 33" W x 31" D x 43" H (footprint: 63" W x 31" D)

Manufacturer's Warranty: 90 day Manufacturer's Warranty on parts and labor

Weight: 440 lbs.

Power: 120 VAC

Compare to Similar Creasers

Model Name

Model

Speed

Sheet Size

Paper Thickness

Folds per Sheet

Feed Capacity

Paper Weight

Paper Sizes

Minimum Repeat Crease Distance

Minimum Repeat Fold Distance

Minimum Crease Distance from Leading Edge

Minimum Fold Distance from Leading Edge

Minimum Crease Distance from Trailing Edge

Minimum Fold Distance from Trailing Edge

Minimum Fold Length

Programmable Jobs

Dimensions

Weight

Power

Warranty
Atlas-TRIO15

24-up business cards, up to 8 sheets/minute
4-up postcards (12" x 18"), up to 10 sheets/minute
2 cut / 2 slit / 1 crease (8.5" x 11"), up to 15 sheets/minute
1 crease (8.5" x 11"), up to 5,000 sheets/hour

Pile height up to 4"

N/A

N/A

Pile height up to 4"

32# bond - 130# cover (120-350 gsm)

8.2" - 13" W x 8.2" - 19" L (13" W x 27.5" L with optional long sheet kit)

N/A

N/A

N/A

N/A

N/A

N/A

N/A

Up to 150

33" W x 31" D x 43" H (footprint: 63" W x 31" D)

440 lbs.

120 VAC

90 day warranty on parts and labor
Atlas C150

Up to 8,500 sheets per hour * (8.5” x 11”)

Max: 27.5” x 15” (51” X 15” w/std. extension table)
Min: 8.2” x 3.89”

Max: 0.015” (400gsm)
Min: 0.0035” (75gsm)

Up to 30

N/A

N/A

N/A

0.0039” (depending on paper weight)

N/A

N/A

N/A

N/A

N/A

N/A

Unlimited

66.5” L x 28.7” W x 45.7” H (100” L x 28.7” W x 45.7” H)

551 lb.

100-240V, 50/60Hz, 8-4A

90-Day Warranty
Atlas C102

Up to 8,500 sheets per hour (8.5" x 11")
Up to 11,000 sheets per hour (6.5" x 8.5")

Max: 35" x 13", Min: 8.3" x 5.5"

Max: 0.015" (approx. 400gsm)
Min: 0.004" (approx. 80gsm)

Up to 16

N/A

N/A

N/A

0.03" (depending on paper weight)

N/A

0.09"

N/A

1.37"

N/A

N/A

50

75.4" L x 20.5" W x 48" H

267 lb

220V, 50/60hz, 15A, NEMA 6-15P

90 day limited warranty on parts. Excluding wearables and labor.
Atlas C200

Up to 8,500 sheets per hour * (8.5" x 11")
Up to 11,000 sheets per hour * (6.5" x 8.5")

Max: 27.5" x 19.6" (35.4" x 19.6" w/optional extension table)
Min: 8.2" x 5.5"

Max: 0.015" (approx. 400gsm)
Min: 0.004" (approx. 75gsm)

Up to 16

N/A

N/A

N/A

0.03" (depending on paper weight)

N/A

0.09"

N/A

1.37"

N/A

N/A

Unlimited

59" L x 26.8" W x 48" H

344 lb

240V 50/60hz

90 day limited warranty on parts. Excluding wearables and labor.
Atlas C300

Up to 6,000 sheets per hour * (8.5" x 11.5")

Max: 27.5" x 15.1" (35.4" x 15.1" w/optional extension table)
Min: 8.2" x 5.5"

Max: 0.015" (approx. 400gsm)
a Min: 0.004" (approx. 75gsm)

Up to 2

N/A

N/A

N/A

1.57" (depending on paper weight)

2.75" (depending on paper weight)

1.96"

1.96"

1.96"

1.96"

2.75"

Unlimited

79.5" L x 26.7" W x 49.8" H

419 lb

240V 50/60hz

90 day limited warranty on parts. Excluding wearables and labor.

Video

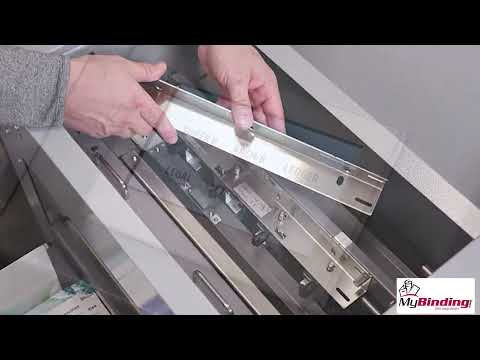

Formax Atlas-TRIO15 Multi-Fuction Slitter-Cutter-Creaser Video

Transcript :

Formax presents The Atlas Trio 15 Multi-Function Slitter-Cutter-Creaser. Designed for on-demand digital print finishing. The Atlas Trio 15 provides powerful accurate high-speed slitting, cutting, and creasing in a single pass. In today's print world, on-demand printing has become the standard for fast turnaround and short-run jobs. Finishing the piece properly for a professional high-quality look is a key part of the process. The Atlas Trio 15 is a true multi-function finisher which can slit cut and crease in one pass. It has the flexibility to process a wide range of applications including folded promotional pieces, business cards, and postcards. The Atlas Trio 15 runs at speeds of up to 5,000 sheets per hour on standard creasing applications, while a job of 250 business cards can be completed in less than 2 minutes. Standard features include cut mark registration, two standard slitting guides, and more for quick accurate turnaround time. The color touch screen control panel offers three modes for quick and easy operation, preset for the most common formats and sizes, manual which modifies the preset jobs, and flex mode for the greatest customization. Users can also store up to 150 custom jobs. The Atlas Trio 15 uses an upper belt tri-suction feeding system and a feed table which automatically elevates, giving it the ability to process sheets up to 13 inches wide by 27.5 inches long in paper weights from 120 to 320gsm. To make print jobs even more impressive, combined The Atlas Trio 15 with the optional AC10 folder which easily transforms large sheets into finished pieces by slitting cutting, creasing, and folding a single streamlined process. The Formax Atlas Trio 15 Multifunction Slitter- Cutter-Creaser sets the standard with its leading-edge technology, ease of setup and operation, power, durability, and accuracy essential for today's on-demand digital print finishing.
