We're sorry, but we no longer offer this item.
Call us at 1-800-944-4573 for personalized recommendations
check out these similar items that may be a good fit
Product Description
This Formax Atlas C300 High-Speed Automatic Creaser and Folder produces high-speed creasing and folding in a single pass. Sheets pass through the dynamic creasing matrix and the patented floating knife folding mechanism, which minimize marking of the digital printout. Speed is maintained, regardless of the number of creases: up to 9 sheets with 9 creases each can be produced in less than 9 seconds. With its graphics-based 7" touchscreen control panel, operators can easily set-up and save jobs in just minutes or use one of the six pre-programmed settings. The C300 automatically calculates the crease positions based on paper size and sets them accordingly. The powerful bottom-suction air-feed system allows for continuous loading of sheets, which increases productivity while maintaining accuracy, even with heavier stocks. The Formax Atlas C300 offers variable speed control to accommodate a wide variety of sheet sizes and thicknesses. This creaser has the ability to produce up to 16 creases per sheet, it can process up to 6,000 sheets per hour ,and can accommodate sheets up to 27.5" x 15.1" in size. This Formax Atlas C300 High-Speed Automatic Creaser and Folder can be used as a stand-alone creaser, or as a perforator when creasing and folding are not required.
Product Details

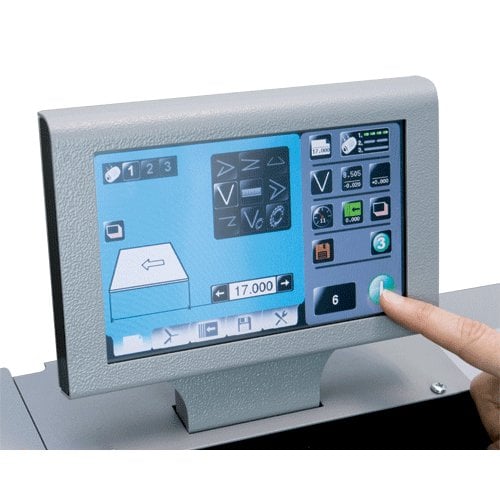

- Color touchscreen control panel.
- Fully automatic setup.
- Processes up to 6,000 sheets per hour.
- Handles sheets up to 27.5" x 15.1".
- Contoured floating knives prevent marking of digital prints.
- Pre-programmed for common creases/folds.
- Unlimited programmable custom jobs.
- Includes digital thickness gauge for accurate measurements.
- Moving sheet deflector eliminates scratches during folding.
- Can be used as a stand-alone creaser or perforator.

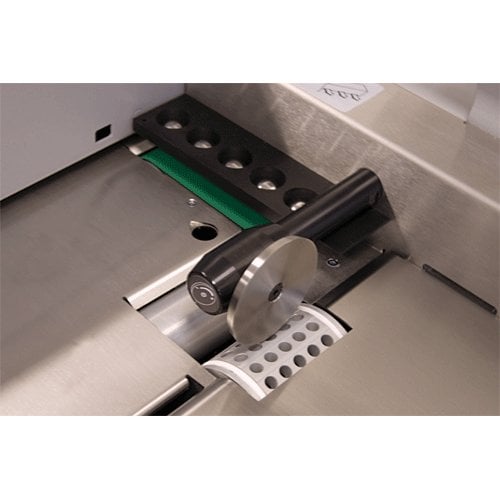

- Includes a single perforating kit.
- Options: extension tray, slitting & perforating wheels, ultra narrow creasing matrix, stacker tray.
- Lifetime guaranteed creaser matrix.
Specifications
- Speed: Up to 6,000 sheets per hour * (8.5" x 11.5")
- Sheet Size: Max: 27.5" x 15.1" (35.4" x 15.1" w/optional extension table)
Min: 8.2" x 5.5" - Paper Thickness: Max: 0.015" (approx. 400gsm)
Min: 0.004" (approx. 75gsm) - Folds per Sheet: Up to 2
- Minimum Repeat Crease Distance: 1.57" (depending on paper weight)
- Minimum Repeat Fold Distance: 2.75" (depending on paper weight)
- Minimum Crease Distance from Leading Edge: 1.96"
- Minimum Fold Distance from Leading Edge: 1.96"
- Minimum Crease Distance from Trailing Edge: 1.96"
- Minimum Fold Distance from Trailing Edge: 1.96"
- Minimum Fold Length: 2.75"
- Programmable Jobs: Unlimited
- Dimensions: 79.5" L x 26.7" W x 49.8" H
- Weight: 419 lb
- Power: 240V 50/60hz
- Warranty: 90 day limited warranty on parts, excluding wearables and labor
Compare to Similar Creasers
-
Model NameModelSpeedSheet SizePaper ThicknessFolds per SheetFeed CapacityPaper WeightPaper SizesMinimum Repeat Crease DistanceMinimum Repeat Fold DistanceMinimum Crease Distance from Leading EdgeMinimum Fold Distance from Leading EdgeMinimum Crease Distance from Trailing EdgeMinimum Fold Distance from Trailing EdgeMinimum Fold LengthProgrammable JobsDimensionsWeightPowerWarranty
-
Atlas-TRIO15
24-up business cards, up to 8 sheets/minute
4-up postcards (12" x 18"), up to 10 sheets/minute
2 cut / 2 slit / 1 crease (8.5" x 11"), up to 15 sheets/minute
1 crease (8.5" x 11"), up to 5,000 sheets/hourPile height up to 4"N/AN/APile height up to 4"32# bond - 130# cover (120-350 gsm)8.2" - 13" W x 8.2" - 19" L (13" W x 27.5" L with optional long sheet kit)N/AN/AN/AN/AN/AN/AN/AUp to 15033" W x 31" D x 43" H (footprint: 63" W x 31" D)440 lbs.120 VAC90 day warranty on parts and labor -
Atlas C150
Up to 8,500 sheets per hour * (8.5” x 11”)Max: 27.5” x 15” (51” X 15” w/std. extension table)
Min: 8.2” x 3.89”Max: 0.015” (400gsm)
Min: 0.0035” (75gsm)Up to 30N/AN/AN/A0.0039” (depending on paper weight)N/AN/AN/AN/AN/AN/AUnlimited66.5” L x 28.7” W x 45.7” H (100” L x 28.7” W x 45.7” H)551 lb.100-240V, 50/60Hz, 8-4A90-Day Warranty -
Atlas C102
Up to 8,500 sheets per hour (8.5" x 11")
Up to 11,000 sheets per hour (6.5" x 8.5")Max: 35" x 13", Min: 8.3" x 5.5"Max: 0.015" (approx. 400gsm)
Min: 0.004" (approx. 80gsm)Up to 16N/AN/AN/A0.03" (depending on paper weight)N/A0.09"N/A1.37"N/AN/A5075.4" L x 20.5" W x 48" H267 lb220V, 50/60hz, 15A, NEMA 6-15P90 day limited warranty on parts. Excluding wearables and labor. -
Atlas C200
Up to 8,500 sheets per hour * (8.5" x 11")
Up to 11,000 sheets per hour * (6.5" x 8.5")Max: 27.5" x 19.6" (35.4" x 19.6" w/optional extension table)
Min: 8.2" x 5.5"Max: 0.015" (approx. 400gsm)
Min: 0.004" (approx. 75gsm)Up to 16N/AN/AN/A0.03" (depending on paper weight)N/A0.09"N/A1.37"N/AN/AUnlimited59" L x 26.8" W x 48" H344 lb240V 50/60hz90 day limited warranty on parts. Excluding wearables and labor. -
Atlas C300
Up to 6,000 sheets per hour * (8.5" x 11.5")Max: 27.5" x 15.1" (35.4" x 15.1" w/optional extension table)
Min: 8.2" x 5.5"Max: 0.015" (approx. 400gsm)
a Min: 0.004" (approx. 75gsm)Up to 2N/AN/AN/A1.57" (depending on paper weight)2.75" (depending on paper weight)1.96"1.96"1.96"1.96"2.75"Unlimited79.5" L x 26.7" W x 49.8" H419 lb240V 50/60hz90 day limited warranty on parts. Excluding wearables and labor.
