Formax FD 386 Automatic Paper Folder

Name: Formax FD 386 Automatic Paper Folder
Brand: Formax
SKU: FD-386

$5,395.50

Price Match Guarantee*

Quantity

Need Shopping Advice?
Call - (800)944-4573

Item# FD-386

Folds up to 17,000 sheets per hour (11" Z-fold) onto a telescoping conveyor
Takes sheets from 3.5" x 5" up to 12.25" x 18", with 9 preset paper sizes
18 preset fold settings across 6 fold types, plus up to 27 stored custom folds
Drop-in feed holds 500 sheets, with a color touchscreen for one-touch setup

SKU

PRODUCT NAME

PRICE

QUANTITY

04FXFD30020

Formax FD 300-20 Multi-Sheet Feeder for FD 346 and FD 386

$561.00

04FXFD30030

Formax FD 300-30 Short Fold/Small Document Kit for FD 386

$674.33

FD 2000-20

Formax FD 2000-20 Cabinet for All Desktop Sealers

$1,061.33

04FXVSTACK36I

Formax V-Stack36i Interfaced with FD 2056, FD 2096, or 2300 Series Pressure Sealers and FD386, FD 38Xi Paper Folders (Factory Install Only)

$11,327.67

04FXFD38FVS3610

Formax Stand for V-Stack36i (Adjustable Height With Locking Casters)

$3,507.67

Product Description

Folds up to 500 sheets in as fast as 2 minutes with just a few touches, the Formax FD 386 Automatic Touchscreen Paper Folder gets the job done exceptionally fast. Fully automated with 18 pre-programmed fold settings plus 27 custom folds of your choice that can be stored into memory that can be easily operated with one touch set-up.Operation requires little to no instruction as FD 386’s full-color touchscreen control panel is extremely easy to use with its universal symbols and step-by-step user interface. Simply load up to 500 sheets in the hopper, select fold of choice, press start and walk away to attend to other important tasks. The FD 386 is equipped with patented Telescoping Conveyor System that holds the folded pieces and an optional patented Multi-Sheet Feeder that allows up to 4 stapled or unstapled sheets to be folded at one time through the dedicated feed system with its own side guides and skew adjustment. The FD 386 advanced software allows for all standard fold types and paper sizes to be customized to meet your particular needs. The FD 386 can also be combined with the optional Formax V-Stack36i Vertical Stacker, which stacks up to 22” of folded documents, making them easier to unload for further processing.If you are looking for a fast and high quality paper folding machine, look no further than the Formax FD 386 Automatic Touchscreen Document Folder.

Product Details

Operating Features:

Fast!: Large jobs are processed quickly at speeds of up to 17,000 pieces per hour

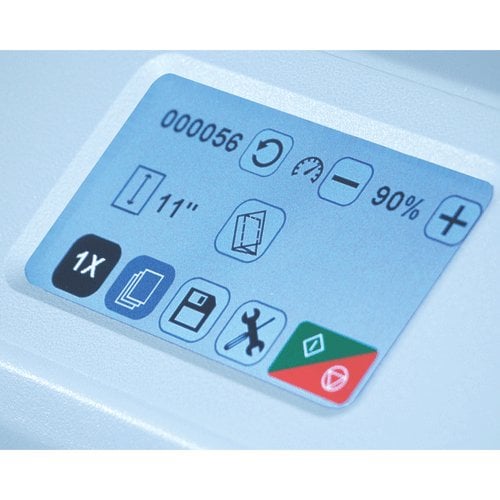

Color Touchscreen: The large full-color touchscreen control panel allows anyone to walk up and start folding in seconds

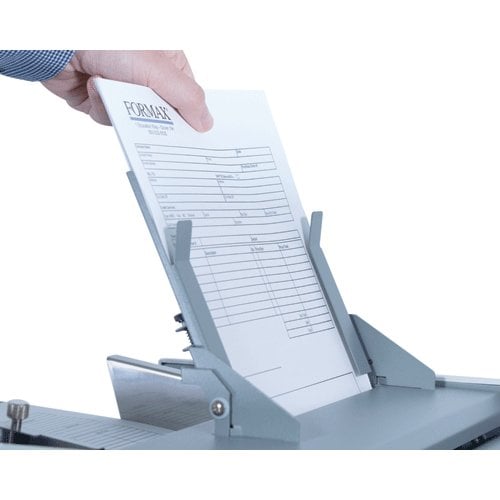

Drop-In Feed System: Three-roller drop-in feed system produces dependable feeding of forms with no fanning required
Adjustable Stacker Wheels: Stacker wheels can be manually adjusted to neatly and sequentially stack different paper sizes and fold types
Telescoping Conveyor System: Conveyor can be set between 14" (356mm) and 36" (915mm) in length and holds up to 500 folded pieces
Noise Reduction: Fold plates are enclosed and insulated to reduce operating noise
6-Digit Resettable & 8-Digit Life Counters: Provides maximum audit control
AutoBatchTM: Programmable to process pre-set number of sheets into sets with a delay

Folding Features:

Six Standard Folds in Common Paper Sizes: Pre-programmed for 6 popular fold types in letter, legal and ledger paper sizes equalling 18 preset fold settings
Custom Folds: Up to 27 custom folds can be programmed and stored into memory
Standard Fold Settings Modification: Even the six standard fold types can be modified individually for each paper size for maximum flexibility and customization
Cross-Folding: A guide is included for two pass operation

Technical Features:

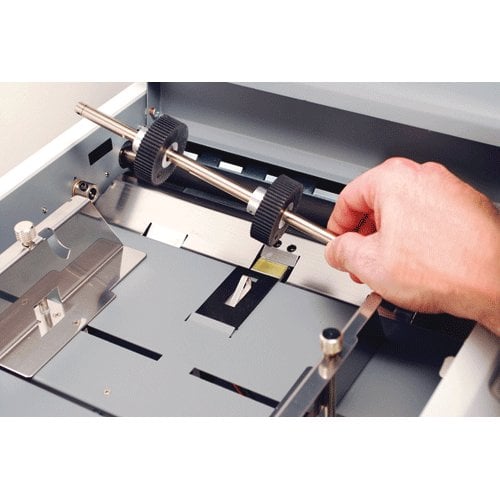

Easy-Off Feed Wheel Shaft: Feed wheels can be changed without removing side covers
Seven Point Fold Stops: Fold plates utilize seven point fold stops for crisp, accurate folds of large paper sizes at high speeds
Removable Roller Cover: Easily removed for improved access to fold rollers and exit area

Options:

Dedicated Multi-Sheet Feeder: Allows for up to 4 stapled or unstapled sheets to be folded at once, with the ability to select standard or custom folds in letter and legal paper sizes
Locking Cabinet: Fully enclosed for storage
V-Stack36i Vertical Stacker: Aligns with FD 386 outfeed and vertically stacks up to 22" of folded documents, making them easier to unload for further processing

Specifications

Speed: Up to 17,000 sheets per hour - based on 11" (279mm) Z-Fold

Hopper Capacity: Up to 500 sheets 20# (75 gsm)

Pre-Set Folds: Pre-programmed for C,V,Z, Gate, Fold Out and Double Parallel

Pre-Set Paper Sizes: 11", 14", 17", A5, A4, A3, B6, B5, B4

Custom Folds: Up to 27

Paper Size:

Min: 3.5" W x 5" L (88.9 W x 127 L mm)
Max: 12.25" W x 18" L (311 W x 457 L mm)

Dimensions:

Closed: 33" L x 20" W x 19" H (84 L x 51 W x 48 H cm)
Fully Extended: 60" L x 20" W x 19" H (152 L x 51 W x 48 H cm)

Weight: 73 lbs (33kg)

Power: 110-240VAC 50/60 Hz

Option: FD 300-20 - Multi-Sheet Feeder

Safety Certifications: UL & CE applied for

Manufacturer's Warranty: 90 Days Manufacturer's Warranty Parts

Spiral / Binding101 Part Number: 04FXFD386

Compare to Similar Paper Folders

Model Name

Model

Speed

Hopper Capacity

Pre-Set Folds

Pre-Marked

Paper Sizes

Paper Size

Dimensions

Weight

Power

Option

Safety Certifications

Warranty
FD-346

Up to 15,500 sheets per hour – based on 11" (279mm) Z-Fold, 6 Settings

Up to 500 sheets 20# (75gsm)

C, V, Z, Gate, Fold Out and Double Parallel

FD Model: 11", 14", 17"

FE Model: A5, A4, A3, B6, B5, B4

Min: 3.5" W x 5" L (88.9 W x 127 L mm), Max: 12.25" W x 18" L (311 W x 457 L mm)

Closed: 33" L x 20" W x 19" H (84 L x 51 W x 48 H cm), Fully Extended: 60" L x 20" W x 19" H (152 L x 51 W x 48 H cm)

67 lbs (30kg)

FD Model: 110VAC 50/60 Hz

FD 300-20 - Multi-Sheet Feeder

UL, CUL, and CE approved

90 Days Warranty Parts
FD 386

Up to 17,000 sheets per hour – based on 11" (279mm) Z-Fold

Up to 500 sheets 20# (75 gsm)

Pre-programmed for C,V,Z, Gate, Fold Out and Double Parallel

N/A

11", 14", 17", A5, A4, A3, B6, B5, B4

Min: 3.5" W x 5" L (88.9 W x 127 L mm), Max: 12.25" W x 18" L (311 W x 457 L mm)

Closed: 33" L x 20" W x 19" H (84 L x 51 W x 48 H cm), Fully Extended: 60" L x 20" W x 19" H (152 L x 51 W x 48 H cm)

73 lbs (33kg)

110-240VAC 50/60 Hz

FD 300-20 - Multi-Sheet Feeder

UL & CE applied for

90 Days Warranty Parts
FD 38Xi

Up to 17,000 sheets per hour – based on 11" (279mm) Z-Fold

Up to 500 sheets 20# (75 gsm)

Pre-programmed for C,V,Z, Gate, Fold Out and Double Parallel

N/A

11", 14", 17", A5, A4, A3, B6, B5, B4

Min: 3.5" W x 5" L (88.9 W x 127 L mm), Max: 12.25" W x 18" L (311 W x 457 L mm)

Closed: 33" L x 20" W x 19" H (84 L x 51 W x 48 H cm), Fully Extended: 60" L x 20" W x 19" H (152 L x 51 W x 48 H cm)

73 lbs (33kg)

110-240VAC 50/60 Hz

N/A

UL & CE applied for

90-Day Warranty on Parts

Video

Formax FD 386 Document Folder Demo Video

Transcript :

Formax presents the next generation FD 386 Touchscreen Automatic Document Folder. For the past 20 years, FORMAX has been providing quality innovative folders built to last and made in the USA, the FD 386 is no exception. The FD 386 combines speed, accuracy, quality, and durability with modern touch screen experience. The automated fold settings allow for quick and easy setup between fold types and paper sizes. Operation is simple, load the paper into the feeder, select your fold type, and press start. At a speed of up to 17,000 folds per hour, sheets are folded and ready in minutes. The large 3.5š color touch screen uses internationally recognized symbols to easily navigate through setup and operation. The FD 386 can fold sheets up to 12 inches by 18 inches and is programmed automatically to set 6 common fold types in 11 inch, 14 inch, and 17 inch lengths. In addition, up to 27 custom folds can be programmed in to memory for recurring unique applications. Fully loaded, the FD 386 infeed holds up to 500 sheets at a time, the drop-in three roller friction feed system allows for consistent reliable feeding making quick work of any folding job. The FD 386 also features the FORMAX patent Telescoping Outfeed Conveyor Stacker that can hold up to 500 folded sheets when fully extended. This allows for a complete stack of documents to run through the folder before unloading. A resettable 6-digit counter gives an accurate tally of the number of sheets folded. Simply press the reset icon to set the counter back to zero. In addition to the standard counter, the FD 386 features auto batch mode for processing sets of documents with a delay between each set for easy handling and grouping. The optional patented Multi Sheet Feeder is designed to fold multiple page documents, it can fold up to 4 stapled or unstapled sheets up to 8 ½ inches by 14 inches in a single pass. The feeder has an independent skew adjustment for fine tuning folds. The FD 386 also features a Cross-Fold guide for feeding folded documents a second time for additional folding. Proudly made in the USA, The FD 386 Touch Screen Automatic Document Folder is an ideal solution for any business, print shop or school that requires multiple fold capabilities combined with ease of operation versatility and reliability.
