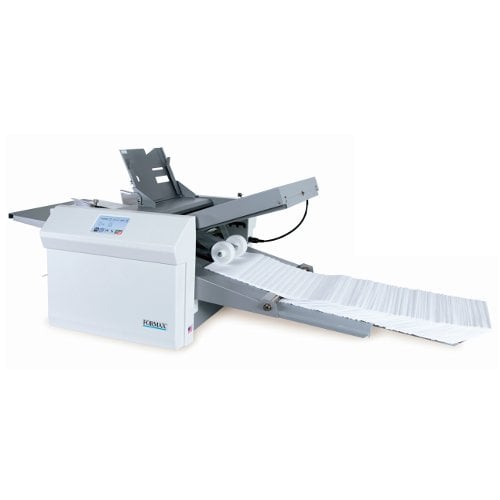

Formax FD 38Xi Fully Automatic Paper Folder

Name: Formax FD 38Xi Fully Automatic Paper Folder
Brand: Formax
SKU: FD-38Xi

$6,025.50

Price Match Guarantee*

Quantity

Need Shopping Advice?
Call - (800)944-4573

Item# FD-38XI

Folds up to 17,000 sheets per hour (11" Z-fold) onto a telescoping conveyor
Takes sheets from 3.5" x 5" up to 12.25" x 18", with 9 preset paper sizes
18 preset fold settings across 6 fold types, plus up to 36 stored custom folds
500-sheet drop-in feed plus a dedicated feeder for up to 4 stapled sheets

SKU

PRODUCT NAME

PRICE

QUANTITY

04FXVSTACK36I

Formax V-Stack36i Interfaced with FD 2056, FD 2096, or 2300 Series Pressure Sealers and FD386, FD 38Xi Paper Folders (Factory Install Only)

$11,327.67

04FXFD38FVS3610

Formax Stand for V-Stack36i (Adjustable Height With Locking Casters)

$3,507.67

FD 2000-20

Formax FD 2000-20 Cabinet for All Desktop Sealers

$1,061.33

Product Description

The FD 38Xi Fully Automatic Touchscreen Document Folder delivers high-speed, professional folding with simple, one-touch operation. Its full-color touchscreen, fully automated fold plates, and AutoStack™ stacker wheels enable quick setup using any of the 18 pre-programmed folds or up to 36 stored custom jobs. Designed for productivity, it folds up to 17,000 sheets per hour, and operators can load up to 500 sheets, select a fold, press start, and walk away while documents neatly collect on the telescoping conveyor. The dedicated Multi-Sheet Feeder processes up to four stapled or unstapled sheets at a time, with fold customization for letter and legal stock. Advanced software allows full configuration of fold types and paper sizes for unique applications. For additional efficiency, the optional V-Stack36i Vertical Stacker can be added to neatly stack up to 22" of folded documents. When speed, automation, and consistent quality are essential, the FD 38Xi is an outstanding solution for schools, businesses, and print-for-pay environments.

Product Details

Folds up to 17,000 sheets per hour

Color touchscreen interface

Telescoping conveyor system for organized output

Adjustable stacker wheels

18 pre-programmed fold settings

Dedicated multi-sheet feeder

Stores up to 36 custom fold programs

Drop-in three-roller feed system for consistent feeding

Noise-reduction design

6-digit resettable counter & 8-digit life counter

AutoBatch™ mode

Cross-folding guide

Easy-off feed wheel shaft for quick maintenance

Seven-point fold stops for precise folds

Removable roller cover for easy cleaning and service

Specifications

Speed: Up to 17,000 sheets per hour - based on 11" (279mm) Z-Fold

Hopper Capacity: Up to 500 sheets 20# (75 gsm)

Pre-Set Folds: Pre-programmed for C,V,Z, Gate, Fold Out and Double Parallel

Pre-Set Paper Sizes: 11", 14", 17", A5, A4, A3, B6, B5, B4

Custom Folds: Up to 36

Paper Size:

Min: 3.5" W x 5" L (88.9 W x 127 L mm)
Max: 12.25" W x 18" L (311 W x 457 L mm)

Dimensions:

Closed: 33" L x 20" W x 19" H (84 L x 51 W x 48 H cm)
Fully Extended: 60" L x 20" W x 19" H (152 L x 51 W x 48 H cm)

Weight: 73 lbs (33kg)

Power: 110-240VAC 50/60 Hz

Safety Certifications: UL & CE applied for

Manufacturer's Warranty: 90-Day Manufacturer's Warranty on Parts

Spiral / Binding101 Part Number: 04FXFD3XI

Compare to Similar Paper Folders

Model Name

Model

Speed

Hopper Capacity

Pre-Set Folds

Pre-Marked

Paper Sizes

Paper Size

Dimensions

Weight

Power

Option

Safety Certifications

Warranty
FD-346

Up to 15,500 sheets per hour – based on 11" (279mm) Z-Fold, 6 Settings

Up to 500 sheets 20# (75gsm)

C, V, Z, Gate, Fold Out and Double Parallel

FD Model: 11", 14", 17"

FE Model: A5, A4, A3, B6, B5, B4

Min: 3.5" W x 5" L (88.9 W x 127 L mm), Max: 12.25" W x 18" L (311 W x 457 L mm)

Closed: 33" L x 20" W x 19" H (84 L x 51 W x 48 H cm), Fully Extended: 60" L x 20" W x 19" H (152 L x 51 W x 48 H cm)

67 lbs (30kg)

FD Model: 110VAC 50/60 Hz

FD 300-20 - Multi-Sheet Feeder

UL, CUL, and CE approved

90 Days Warranty Parts
FD 386

Up to 17,000 sheets per hour – based on 11" (279mm) Z-Fold

Up to 500 sheets 20# (75 gsm)

Pre-programmed for C,V,Z, Gate, Fold Out and Double Parallel

N/A

11", 14", 17", A5, A4, A3, B6, B5, B4

Min: 3.5" W x 5" L (88.9 W x 127 L mm), Max: 12.25" W x 18" L (311 W x 457 L mm)

Closed: 33" L x 20" W x 19" H (84 L x 51 W x 48 H cm), Fully Extended: 60" L x 20" W x 19" H (152 L x 51 W x 48 H cm)

73 lbs (33kg)

110-240VAC 50/60 Hz

FD 300-20 - Multi-Sheet Feeder

UL & CE applied for

90 Days Warranty Parts
FD 38Xi

Up to 17,000 sheets per hour – based on 11" (279mm) Z-Fold

Up to 500 sheets 20# (75 gsm)

Pre-programmed for C,V,Z, Gate, Fold Out and Double Parallel

N/A

11", 14", 17", A5, A4, A3, B6, B5, B4

Min: 3.5" W x 5" L (88.9 W x 127 L mm), Max: 12.25" W x 18" L (311 W x 457 L mm)

Closed: 33" L x 20" W x 19" H (84 L x 51 W x 48 H cm), Fully Extended: 60" L x 20" W x 19" H (152 L x 51 W x 48 H cm)

73 lbs (33kg)

110-240VAC 50/60 Hz

N/A

UL & CE applied for

90-Day Warranty on Parts

Video

Formax FD 38Xi Fully Automatic Document Folder Demo Video

Transcript :

Formax presents the next generation FD 38xi touch screen fully automatic document folder. For the past 20 years, FORMAX has been providing quality innovative folders built to last and made in the USA. The new FD 38xi is no exception, itš™s the ultimate user friendly folder combining speed, accuracy, quality and durability with fully automatic settings in a modern touch screen interface. The automated fold settings and automatic stacker wheels allow for quick an easy setup between fold types and paper sizes. Operation is simple, load paper into the feeder, select you fold type and press start. At a speed of up to 17,000 folds per hour sheets are folded and ready in minutes. The large 3.5 inch color touch screen uses internationally recognized symbols to easily navigate through setup and operation. The FD 38xi can fold sheets up to 12 inches by 18 inches and is programmed to automatically set six common fold types in 11 inch, 14 inch, and 17 inch lengths. In addition, up to 36 custom folds can be programmed into memory for recurring unique applications. Fully loaded, the FD 38xi holds up to 500 sheets at a time, the drop in three roller friction feed system allows for consistent reliable feeding making quick work of any folding job. The FD 38xi also features the FORMAX patented Telescoping Outfeed Conveyor stacker that can hold up to 500 folded sheets when fully extended. This allows for a complete stack of documents to run through the folder before unloading. A resettable 6-digit counter gives an accurate tally of the number of sheets folded. Simply press the reset icon to set the counter back to zero. In addition to the standard counter, the FD 386xi features auto batch mode for processing sets of documents with a delay between each set for easy handling and grouping. The patented Multi Sheet Feeder is a standard feature designed to fold multiple page documents, it can fold up to 4 stapled or unstapled sheets up to 8 ½ inches by 14 inches in a single pass. The feeder has an independent skew adjustment for fine tuning folds. The FD 386xi also features a Cross-Fold guide for feeding folded documents a second time for additional folding. Proudly made in the USA, The FD 386xi Touch Screen Fully Automatic Document Folder is an ideal solution for any business, print shop or school that requires multiple fold capabilities combined with ease of operation versatility and reliability.
