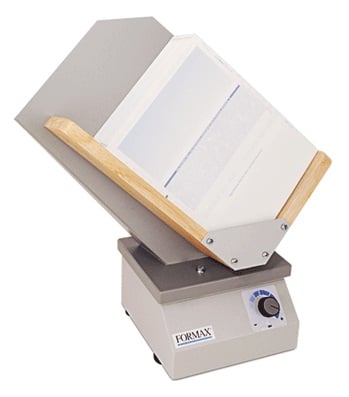

Formax FD402P1 Single Bin Paper Jogger

Name: Formax FD402P1 Single Bin Paper Jogger
Brand: Formax
SKU: FD402P1

$1,483.13

Quantity

Need Shopping Advice?
Call - (800)944-4573

Item# FD402P1

Jogs paper up to 11" x 17" in a single 3.5" x 8.75" bin
Holds up to 800 sheets of 20 lb paper in a compact 28 lb unit
Variable vibration up to 4,000 per minute aligns sheets and reduces static
Preps forms for pressure sealers, inserters and folders so they feed cleanly

Product Description

Formax FD402P1 Single Bin Paper Jogger Virtually any piece of equipment which processes cut-sheet paper or forms can be enhanced by using the FD 402P1 or FD 402P2 Jogger. These joggers align and separate forms or paper for proper feeding while reducing static electricity. The FD 402P1 and 402P2 Paper Joggers provide quick, easy alignment for a wide variety of paper sizes and thicknesses. This series is ideal for use with pressure sealing, inserting or folding machines.

Product Details

Variable Speed: Up to 4,000 Vibrations/minute

Bin Size: 3.5" x 8.75"

Media Size: Up to 11" x 17"

Sheet Capacity: 800 sheets of 20#

Dimensions: 7.75" x 19" x 21"

Weight: 28lbs

Voltage: 115 volts (50/60Hz)

Safety Certifications: UL & CE applied for

Manufacturer's Warranty:

90 day limited Manufacturer's Warranty on parts.
Excluding wearables and labor.

Compare to Similar Paper Joggers

Model Name

Model

Variable Vibration Speed

Variable Air Control

Bin Size

Media Size

Sheet Capacity

Dimensions

Weight

Voltage

Safety Certifications

Warranty
Formax FD 404A1

Up to 3,000 vpm

Up to 29,000 rpm

3.75" D x 20.375" W

5" x 7" Min - 12" x 18" Max"

Up to 940 sheets 20#

21" W x 18" D x 54" H

100 lbs.

110V/120V, 50/60 Hz

N/A

90 day limited warranty on parts. Excluding wearables and labor.
Formax FD402P1

Up to 4,000 Vibrations/minute

N/A

3.5" x 8.75"

Up to 11" x 17"

800 sheets of 20#

7.75" x 19" x 21"

28lbs

115 volts (50/60Hz)

UL & CE applied for

90 day limited warranty on parts. Excluding wearables and labor.
Formax FD402P3

Up to 4,000 Vibrations/minute

N/A

2.25" x 11.25" each

Up to 8.5" x 14"

1,700 sheets of 20#

9.75" x 14" x 17.75"

29lbs

115 volts (50/60Hz)

UL & CE applied for

90 day limited warranty on parts. Excluding wearables and labor.
Formax FD 402TA1

Up to 2,500 vpm

Up to 29,000 rpm

3.75" D x 20.375" W

5" x 7" Min - 12" x 18" Max

Up to 940 sheets 20#

21" W x 15" D x 23" H

60 lbs.

110V/120V, 50/60 Hz

N/A

90 day limited warranty on parts. Excluding wearables and labor.

Video

Formax FD402A1 Air Jogger Demo Video - FD402P1

Transcript :

Formax 402 Series Joggers. Remove static and square printed forms for proper feeding. Control power and vibration speed with one control knob. Remove squared forms from jogger and place onto the feed tray.

Resources

Staff Review

Formax FD402P1 Single-Bin Paper Jogger Review

A paper jogger is a good thing to have around if your company regularly produces mass mailings, processes checks, and so on. One of the best entry-level devices is the Formax FD402P1. Here's a look at what's great about it as well as what could be improved.

The FD402P1 is capable of working with paper that's up to 11" x 17", more commonly known as tabloid size. You'll be able to process both letter- and legal-sized sheets with this device, so it's an ideal machine to have on-hand for all your jogging needs.
This machine can jog up to 800 sheets at once which is a terrific amount for a single-bin device. The jogging capacity is based on 20 lb. bond paper, so you may find that you're able to jog more or less depending on the thicknesses of your sheets. This device has a center divider to make it easy to jog small sets of paper.
This jogger has variable speeds and it's capable of producing up to 4,000 vibrations per minute.
The FD402P1 can process both regular sheets of paper as well as forms and envelopes. In fact, this device can even separate forms if necessary. However, since this is a standard jogger, you can't use it for things such as magazines. You should consider investing in a specialty jogger if you need to work with those kinds of items.
This machine has a special area that will hold various types of waste such as dust, paper clips, and staples. This helps keep your sheets clean and keeps the jogger in good working order.
You can use this device to prepare items for a number of different processes including insertion, folding, copying, and scanning. It's a great machine to have around if you frequently work with a lot of paper because it reduces the amount of static electricity between sheets so they'll be fed more smoothly through other devices.
This jogger can easily fit on a desk or table because its measurements are 7.75" (width) x 19" (length) x 21" (height). It has a relatively small footprint so it won't take up a lot of room at all. Also, it only weighs 28 pounds so it's pretty lightweight.
The FD402P1 is reasonably priced and it's accompanied by a one-year warranty.

The Formax FD402P1 is a terrific single-bin jogger even if it really is only an entry-level device. You'll be able to jog various sizes of paper (including tabloid-sized sheets) as well as forms and envelopes, so this is a good machine to have if you regularly work with a lot of paper. It's great that you'll be able to process as many as 800 sheets at once and that this device is small enough to fit on a variety of work surfaces. It's kind of disappointing that you can't jog specialty items such as a magazines with this machine, but that's kind of to be expected since this is a pretty basic unit. In conclusion, if you need a jogger without a lot of bells and whistles, the FD402P1 would be a great choice.
