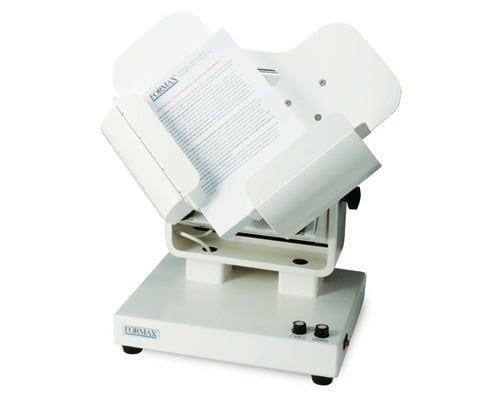

Formax FD 402TA1 High Capacity Tabletop Air Jogger

Name: Formax FD 402TA1 High Capacity Tabletop Air Jogger
Brand: Formax
SKU: FD 402TA1

$1,807.65

Price Match Guarantee*

Quantity

Need Shopping Advice?
Call - (800)944-4573

Item# FD 402TA1

Jogs sheets from 5" x 7" up to 12" x 18" in a 20.375" wide V-shaped bin
Holds up to 940 sheets of 20 lb paper per load in a compact tabletop unit
Variable air up to 29,000 rpm and up to 2,500 vibrations per minute, 3 modes
Bin tilts from vertical to horizontal so large stacks don't bend while jogging

Product Description

If your print shop or production house is tight on space, consider the FD402TA1 table top air jogger by Formax. This air jogger is a compact powerful model that aligns and dries sheets in a single process, reducing that static electricity, while offering the ability to jog 12" x 18" paper. You control the vibration speed and air pressure that allows press sheets and digital printouts to be air dried immediately. The FD402TA1 can process up to 940 sheets at a time. The V shaped bin lets you crisscross stacked piles of paper and the vertical to horizontal tilt feature keeps large paper stacks from bending. Part number FD402TA1.

Product Details

Align, Dry, Remove Static in One Step: The FD 402TA1 Tabletop Air Jogger is ideal for print shops and production houses with limited space. It aligns and dries printed sheets in a single process while reducing static electricity.

Variable Speed Control: Up to 2,500 vibrations per minute.

Variable Air Pressure Control: Up to 29,000 rpm, reduces jogging time.

Tilting Jog Bin: V-shaped bin adjusts from vertical to horizontal to accommodate various operating requirements, including large format paper stacks, and criss-cross stacked piles.

High Capacity: Jogs up to 940 sheets 20#.

Operating Modes: Vibrate and Air, Air-only and Vibrate-only.

Specifications

Variable Vibration Speed: Up to 2,500 vpm

Variable Air Control: Up to 29,000 rpm

Bin Size: 3.75" D x 20.375" W

Media Size: 5" x 7" Min - 12" x 18" Max

Sheet Capacity: Up to 940 sheets 20#

Dimensions: 21" W x 15" D x 23" H

Weight: 60 lbs.

Voltage: 110V/120V, 50/60 Hz

Manufacturer's Warranty:

90 day limited Manufacturer's Warranty on parts.
Excluding wearables and labor.

Spiral / Binding101 Part Number: 04FXFD402TA1

Compare to Similar Paper Joggers

Model Name

Model

Variable Vibration Speed

Variable Air Control

Bin Size

Media Size

Sheet Capacity

Dimensions

Weight

Voltage

Safety Certifications

Warranty
Formax FD 404A1

Up to 3,000 vpm

Up to 29,000 rpm

3.75" D x 20.375" W

5" x 7" Min - 12" x 18" Max"

Up to 940 sheets 20#

21" W x 18" D x 54" H

100 lbs.

110V/120V, 50/60 Hz

N/A

90 day limited warranty on parts. Excluding wearables and labor.
Formax FD402P1

Up to 4,000 Vibrations/minute

N/A

3.5" x 8.75"

Up to 11" x 17"

800 sheets of 20#

7.75" x 19" x 21"

28lbs

115 volts (50/60Hz)

UL & CE applied for

90 day limited warranty on parts. Excluding wearables and labor.
Formax FD402P3

Up to 4,000 Vibrations/minute

N/A

2.25" x 11.25" each

Up to 8.5" x 14"

1,700 sheets of 20#

9.75" x 14" x 17.75"

29lbs

115 volts (50/60Hz)

UL & CE applied for

90 day limited warranty on parts. Excluding wearables and labor.
Formax FD 402TA1

Up to 2,500 vpm

Up to 29,000 rpm

3.75" D x 20.375" W

5" x 7" Min - 12" x 18" Max

Up to 940 sheets 20#

21" W x 15" D x 23" H

60 lbs.

110V/120V, 50/60 Hz

N/A

90 day limited warranty on parts. Excluding wearables and labor.
