Product Description

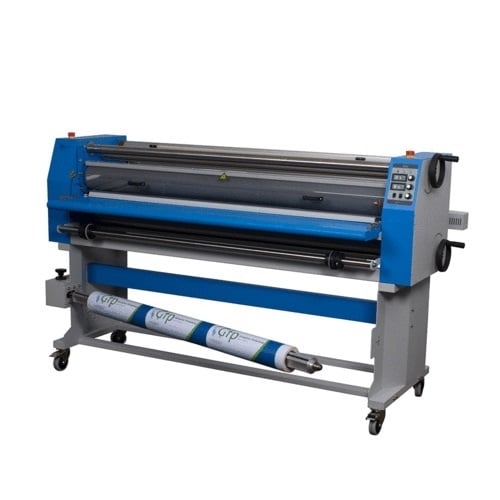

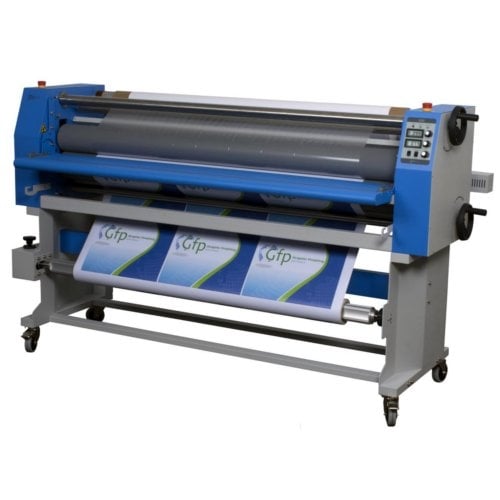

Gfp 865DH-4R Professional Dual Heat Laminator combines versatility, quality, and economy in one machine. Offering ultimate flexibility, the laminator uses dual heat for thermal and cold applications. Quick and effortless thermal capsulation, PSA lamination, and mounting is possible with the professional features the machine has to offer. Three-inch quick grip swing-out supply shafts allows for easy loading and changing of rolls. For user safety, photoelectric eye engaged emergency functions. Standard features include independent top and bottom heaters, web clutch adjustment, motorized rear rewind, and swing up feed table and 38” output height. This flexible and economically priced machine is a top choice in producing signs, posters, POP displays, trade show displays, dry-erase boards, graphic mounting, photo mounting, floor graphics, window graphics, and vehicle graphics. With the end user in mind, this impressive machine is specifically designed to carry features that will maximize productivity while cutting down time and effort. For proven performance and professional quality finish, consider Gfp 865DH-4R Professional Dual Heat Laminator!
Product Details
- Laminating Width: 65"
- Roller Diameter: 5"
- Roller Gap: 1"
- Main Rollers: Silicone
- Supply Roll Diameter (max): 16" bottom, 8" top
- Film Shafts: 3" aluminum Quick-Grip
- Rear Rewind: Optional
- Max. Temperature :266°F
- Heat Method: Quartz heater
- Film Thickness: 1.5 - 10mil
- Laminating Speed: 0-13 ft/min
- Drive Motor: DC geared motor
- Pressure Adjustment: Dual hand wheels
- Roller Heating: Top & Bottom
- Power Supply: 240v 60HZ Single phase 24A
- Power Consumption: Max. 5760W
- Net Weight w/ stand: 767 lbs.
- Dimensions: 87" x 34" x 49"
- Machine Shipping: 893 lbs. 90 x 38" x 33"
- Stand Shipping: 134 lbs. 79 x 33" x 15"
- Manufacturer's Warranty: One Year Parts & Labor
Specifications
- Dual heat for thermal and cold applications
- Front/Rear Swing-out shafts
- Labor saving swing-out 3" Quick-Grip supply shafts.
- Two front rewind shafts allow thermal encapsulation of prints from a roll.
- Drop-in Quick-Grip rewind shafts.

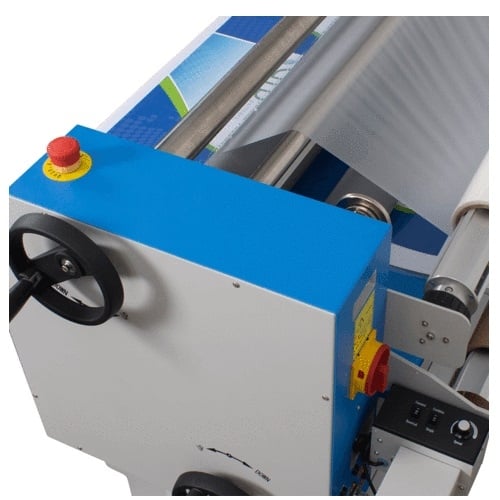

- Photoelectric eye for operator safety.
- Independent top and bottom heaters.
- Web clutch adjustment for output quality.
- Optional motorized rear rewind.
- Swing up feed table and 38" output height.
- Stand, Rewind Motor & Rewind Tube, Installation and Training are included in the price.
- Applications: Signs,Posters,POP Displays,Trade show displays,Dry-erase boards,Graphic mounting,Photo mounting,Floor graphics,Window graphics, and Vehicle graphics.
