Product Description
The EasyPunch® Automatic Punch is ideal for copy centers, allowing your staff to focus on other tasks while it punches up to 9,000 sheets per hour. This efficient machine saves you time and money, offering high labor savings and a quick return on investment. It is equipped with lockable heavy caster wheels for easy mobility and can be set up in minutes anywhere in your shop. Various
punching dies are available, including Wire-O, Coil, Comb, and more.
Product Details
- Versatile:The EasyPunch accommodates sheet sizes from 5.5" x 5.5" to 12" x 12" while keeping your pages neatly organized in pre-collated order.
- Wide range of heavy-duty punching dies: From Wire-O® wire and Plastic Coil to Plastic Comb, Velobind®, and 2, 3, or 4-ring binders, this machine accommodates a variety of punching options. With guide posts for precise alignment, quick pin access, and flanged holes for efficient waste removal, it ensures longer die life.
- Efficient: Despite its compact size, this machine delivers exceptional speed, operating at up to 9,000 sheets per hour or approximately 50 cycles per minute. Changing the punching pattern is a breeze, taking less than a minute and allowing for seamless job transitions without downtime. It provides increased productivity and security for a diverse range of punching tasks.
- Easy-to-use: Experience automatic operation by simply loading the feeder, pressing the start button, and walking away.
- Safety: Built-in features are incorporated to prevent paper jams and enhance operational safety.
- Ergonomic design: The machine's design prioritizes ease of use, enabling all operations, including punch die changes, to be performed effortlessly from the front. It also includes convenient integral storage space for one die.

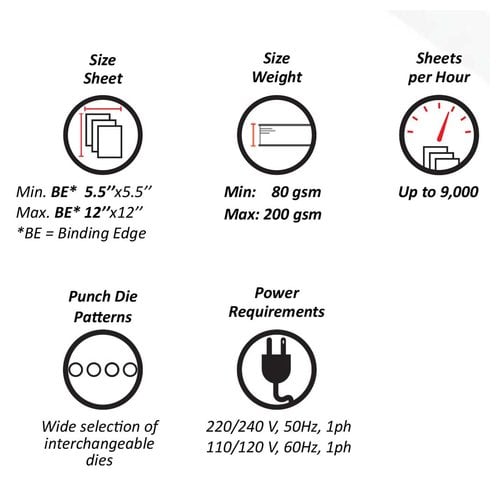

Specifications
- Max Sheet Size (Based on 80gsm): 12" (BE) x 12" (BE = Binding Edge)
- Min Sheet Size (Based on 80gsm): 5.5" (BE) x 5.5" (BE = Binding Edge)
- Sheet Weight: From 80 to 200 gsm
- Feeder & Reception Tray Capacity: 4" (2 reams = 1,000 sheets)
- Cycle Speed: 40 and 50 cycles/minute
- Punch Speed: Up to 9,000 sheets/hour (80gsm)
- Byte Thickness: .01"
- Tooling: Interchangeable with removable pins
- Tool Change Over: 2 minutes ; integral storage space for 1 die
- Control Panel: Touch screen
- Format Set Up Time: Via touch screen and hand wheel in less than 5 minutes
- Power: 220/240 V (50Hz) 1ph - 110/120 V (60Hz) 1ph
- Machine Dimensions (W x D x H): 44" x 29" x 41"
- Net Weight: 370 lbs
- Compatible Accessories: Easy Punch Dies
- Compatible Supplies: Twin-Loop Wire
Plastic Coil
Plastic Comb
Ring Binders
Video

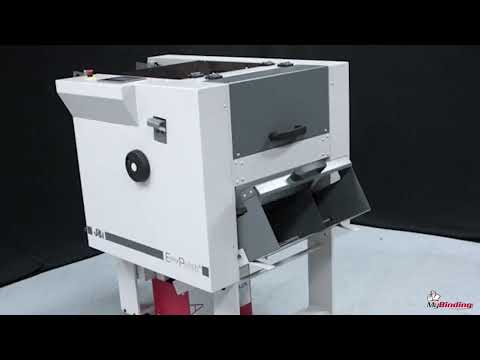

James Burn EasyPunch Automatic Punching Machine Demo Video
Transcript :
