Product Description

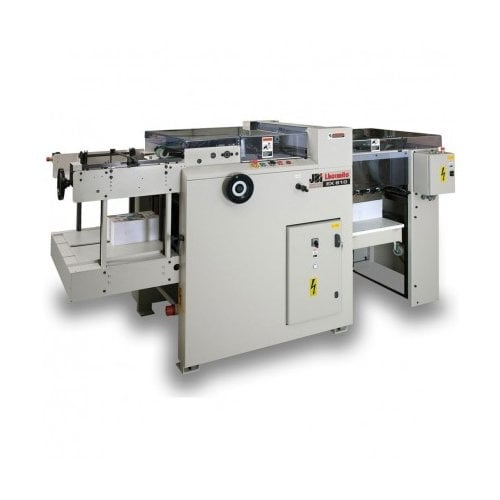

The James Burn EX610DA is the only automatic binding punch that can operate with double action tools that allows for punching applications on both the leading and trailing edges of the paper. Double-Action means this machine has two dies, so you can punch different patterns at different points of the paper, all in one pass. The most common application is for Calendars that have wire on one end and a pinhole punched at the bottom. Instead of running the paper through twice or punching the wire pattern on one machine and drilling the hole in another machine offine, with the EX610DA you can punch both patterns at the same time in one-pass. The James Burn EX610DA is featured with a double action unit that accepts standard EX single action tools or EX tools with an EM head for double action application, a rear ejection device and a rear lay gauge. Running at up to 7,200 cycles / hour, the EX610DA is the fastest punching machine in its range. Plus, its continuous paper loading feature increases productivity to provide a true output of up to 120,000 sheets (80gsm) per hour including loading and unloading operations. The EX610DA punches virtually any type of stock and material that will be retained in their pre-collated sequence. It will perform all types of punching works on up to 3 lines, tab cutting or corner perforation.
Product Details
- Reduced setting time - up to 30% - only one adjustment required for both operations.
- Increased throughput - up to 25% - without considering handling time between the two operations which would be required with a single action machine.
- Simultaneous punching and cutting with marginal speed reduction compared to single action (60 to 80 strokes vs 110).
- Minimum training time required for the operator.
- Flexibility - only one double action tool for all formats which reduces tool budget as well as tool exchange leadtime and related labour cost.
- The machine can be used in its single action con_x001d_guration without reducing productivity as compared to standard EX610.
Specifications
- Maximum Format (Binding Edge): 11" (297 mm)
- Minimum Format (Binding Edge): 5" (125 mm)
- Maximum Format (Sheet Length): 9.8" (250 mm)
- Minimum Format (Sheet Length): 4" (102 mm)
- Machine Cycle Speed: 80 cycles/minute
- Maximum Thickness: 2.5 mm
- Tool Change: 2 minutes
- Format Changeover Time: 10 - 20 minutes
- Power Required: 2.5 Kw
- Electric Current: 220/380 Volts - 3 phase
- Air Supply: 6 bar/410/mn
- Dimensions w/High Pile Reception: 9.2' x 3.4' x 4.6' (2.8 x 1.04 x 1.4 m)
- Weight w/High Pile Reception: 2650 lbs. (1200 kg)
- Compatible Acessories: EX610 Series Punching Dies
EX610 Series Tab Pusher
EX610 Series Nail Hole Punching Kit
EX610 Series Bottom Feed Board Unit
Give us a call at {{config path="general/store_information/phone"}} to set up your machine - Compatible Supplies: Spiral Coils
Twin Loop Wire
Plastic Combs
Velo Binding Strips
Ring Binders
