Product Description

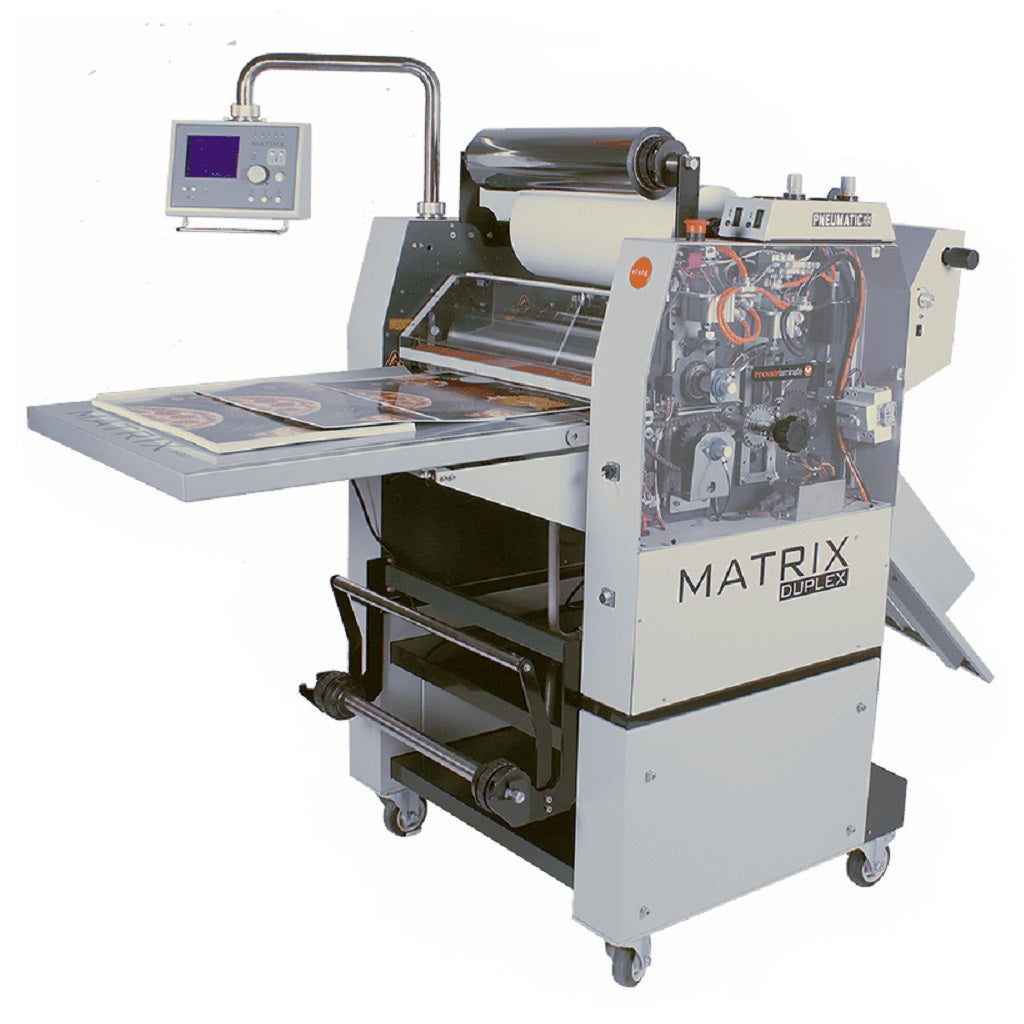

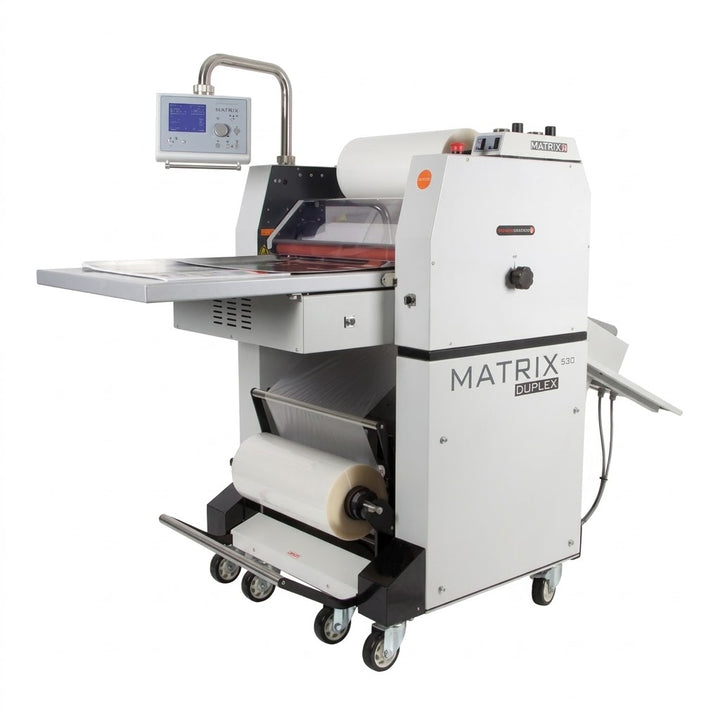

Bring professional laminating and digital foiling in-house with the Matrix MX-530DP Roll Laminator and Foiling System. Designed for print shops, commercial printers, copy centers, and other production environments, the MX530DP combines high-quality dual-sided lamination with the ability to create striking digital foil and specialty effects on compatible printed materials.
Built for productivity and consistent results, the Matrix MX-530DP features durable steel and rubber rollers, precise temperature and pressure control, intuitive operation, and anti-curl technology that helps finished sheets exit flat and ready for the next production step. Use it to enhance business cards, signage, covers, menus, greeting cards, invitations, marketing materials, packaging, and more.
By combining lamination and digital embellishment capabilities in one versatile finishing system, the MX530DP gives print providers an opportunity to expand their services, reduce outsourcing, and produce higher-value finished pieces in-house.
Product Details
- Machine Type: Professional laminating and digital foiling system
- Lamination: Dual-sided lamination
- Digital Foiling: Yes
- Special Effects: Supports digital foil and compatible spot UV-style effects
- Roller Construction: High-performance steel and rubber rollers
- Temperature Control: Adjustable for different finishing applications
- Pressure Control: Designed to provide consistent pressure across the sheet
- Anti-Curl: Integrated anti-curl technology
- Control Panel: Intuitive multi-language interface
- Energy Saving: Energy-saving operating mode
- Safety Features: Safety shield and standby mode
- Automation Compatibility: Integrates with the Omni Sheet Feeder
- Applications: Business cards, book covers, flyers, menus, greeting cards, invitations, marketing materials, and more
- Compatible Substrates: Suitable for a variety of paper and cardstock applications; testing is recommended for specialty substrates
Specifications
- Max. Mechanical Speed (m/ft/min): 10m/33ft
- Max. Lamination Film Width (mm/inches): 500mm/20"
- Minimum Paper Thickness (gsm/lbs): 100gsm/68lbs
- Maximum Sheet Width (mm/inches): 550gsm/22"
- Warm-up Time (mins): 10
- Temperature Range (°C/°F): 0-140°C/32-284°F
- Power Supply (V): 208/220
- Power Supply Required (Amps): 30
- Power Consumption (W): 4500
- Compatible Supplies: 3" Core Roll Laminate 1.7mil thick & Up to 20" Wide
Laminating Foil - Up to 20" Wide
- Compatible Accessories: Matrix 520 Omni-Flow Fully-Automated Deep Pile Feeder
- Overall Dimensions (mm/inches): 900x2050x1400mm/35x81x55"
- Gross Machine Weight (kg/lbs): 250kg/550lbs
- Warranty: 1 Year
- Part Number:MX-530DP
- Spiral / Binding101 Part Number: 04MATRIX530DP
