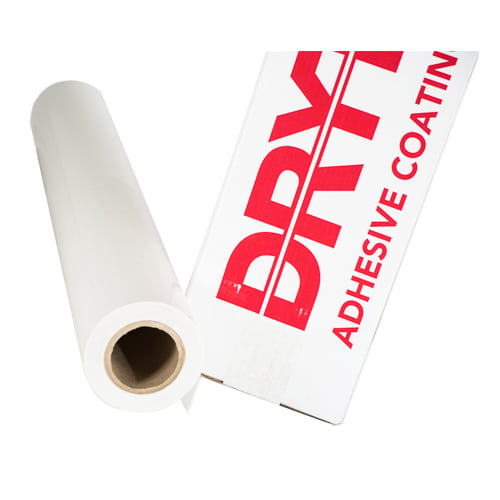

MediaShield Heatset Satinex UV 3mil Overlaminate

$1,041.57

Price Match Guarantee*

Need Shopping Advice?
Call - (800)944-4573

Hybrid formulation for superior adhesion to high ink coverage outputs, ensuring vibrant and durable prints.
Quick setup and curing time for efficient workflow, allowing immediate handling of laminated materials.
Moisture-stable paper release liner maintains adhesive integrity, providing reliable performance even in varying conditions.
Compatible with a wide range of thermal roll laminators, making it a versatile choice for all your laminating needs.

SKU

PRODUCT NAME

PRICE

QUANTITY

SX38328

38" x 328' 3mil MediaShield Heatset Mattex UV Overlaminate (Semi-Gloss, 3" Core) - 1 Roll

$817.88

SX51328

51" x 328' 3mil MediaShield Heatset Mattex UV Overlaminate (Semi-Gloss, 3" Core) - 1 Roll

$1,041.57

Product Description

MediaShield Satinex UV 3mil is one of Drytac's most versatile overlaminating films, offering a broad range of applications. This HeatSet PVC overlaminating film has a semi-gloss finish, which enhances color saturation and contrast. MediaShield Satinex UV bonds to inkjet output with high ink coverage, even inkjet prints printed on photo gloss paper. This film can also be flush trimmed without danger of delamination. It is excellent for textured images, digital photo laser output (Lambda / LightJet), or laminating a collage or images to be die-cut.

Product Details

A hybrid between thermal and pressure sensitive films.
Co-extruded for a carefully balanced ratio of polyester film to adhesive.
Bond well to inkjet output with high ink coverage - even on photo gloss paper and digital photo laser output (Lambda / Lightjet).
Image can be trimmed flush, or even die-cut without fear of delamination.
Due to its quick setup / curing time, MediaShield laminated graphics can be handled or rolled immediately after processing.
Protected by a release liner because the adhesive on these films is slightly tacky when cool.

Specifications

Film Width: 38" - 55"
Film Length: 164' - 328'
Film Thickness: 3.0mil
Core Size: 3"
Finish: Semi-Gloss
Base Film: 2.0mil (50 micron) PVC (vinyl)
Adhesive: 1.0mil (25 micron) solvent acrylic
Initial Tack: Low
Application Speed: 1' - 6' per minute
Application Temperature: 185 F - 210 F
Release Liner: Moisture Stable Paper (70gsm)
Compatible Equipment: 3" Core Thermal Roll Laminators

Technical Data

MediaShield Satinex is a 2 mil (50µ) phthalate-free, UV stabilized, clear PVC laminating film with a semi-gloss finish, coated on one side with a heat activated solvent acrylic adhesive that is protected by a moisture stable bleached Kraft gridded release paper coated on one side with siliconized PE.

Typical Applications

Bonds to inkjet output with high ink coverage, even inkjet prints printed on photo gloss paper.
Can be flush trimmed without danger of delamination.
Ideal for textured images, Lambda output, laminating a collage, or images that are die-cut.

Product Structure

Film	Semi-Gloss PVC
Adhesive	Solvent Acrylic (Heat Activated)
Release Liner	1 Side PE Coated Bleached Kraft Grid Paper (Moisture Stable)

Physical Characteristics

Film Thickness	2 mil (50µ)
Adhesive Layer	1 mil (25µ)
Film/Adhesive Ratio	2:1
UV Protection Factor	Film contains UV stabilizers, which prevent film degradation and provide UV protection to the underlying image
Outdoor Durability	Not Applicable
Service Temperature Range	-4°F to 203°F (-20°C to 95°C)
Peel Strength (20 min, FTM1)	18 N/25mm
Shelf Life	Use within 1 year after opening original box
Storage Conditions	59°F to 72°F (15°C to 22°C); 50 - 55% Relative Humidity

Process Settings

Equipment Type	Temperature	Speed
Roller Laminator	185°F to 215°F (85°C to 102°C)	1 ft to 8 ft (0.3m to 2.5m) per minute
Press	185°F to 210°F (85°C to 99°C) Dwell Time: 2-8 minutes

Downloadable Information

Technical Data Sheet
Sales Literature
