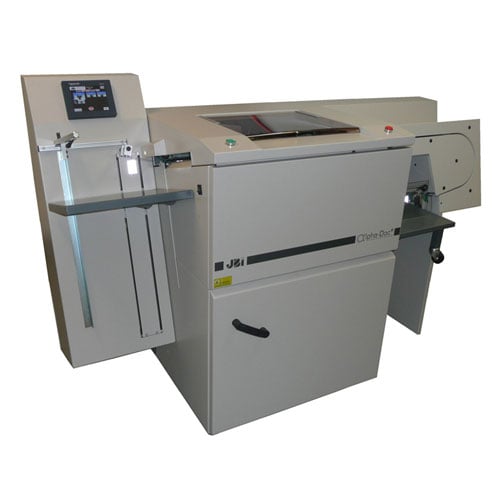

Name: Refurbished James Burn Lhermite AlphaDoc MK3 Automatic Binding Punch
Brand: James Burn
SKU: R4ALPHADOC

We're sorry, but we no longer offer this item.

Call us at 1-800-944-4573 for personalized recommendations
check out these similar items that may be a good fit

Refurbished James Burn Lhermite AlphaDoc MK3 Automatic Binding Punch

We're here for you!

Please call
1-800-944-4573
for help finding a comparable solution

Need Shopping Advice?
Call - (800)944-4573

Item#

Punches up to 54,000 sheets per hour
10 interchangeable dies available including comb, coil, and wire loop binding patterns
Made for punching pages up to 14"H x 13"W
Ideal for in-plant and on-demand print shops

Product Description

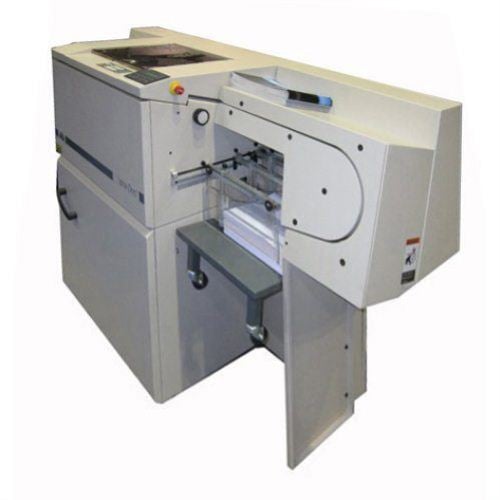

Previously called the Alpha-Doc MKIII (MK3), the new and improved Alpha-Doc MK4 provides large-volume, hands-free, pre-collating punching. Perfect for the production environment and industrial binding facilities, this powerful unit offers high-speed output of up to 90 cycles per minute to reach total hurly outputs up to 94,200 sheets. The AlphaDoc MK4 will punch pre-printed documents straight from your copier or printer, including mixed stock from 16 lb. bond to 110 lb. index. You can also accomplish punching of tabbed sheets with a minimum of 1/4” shoulder. This powerful puncher can handle a wide variety of material in virtually any size from 5.4" x 5.4" up to 14" x 13".Our simplified paper path and unique turnover device with receding stacker provide low waste and assures that pages are kept in perfect pre-collated order. The remarkable ALPHA-DOC MK4 combines the versatility and ease of an office machine with the speed and efficiency of an automatic punch -- for perfect holes every time. Simply load the tray, push a button and walk away for hands-free punching. There is a huge selection of punching pattern dies available, so you can prepare your pages for coil, wire, comb, and other binding methods. With this versatile assortment of die patterns available, combined with surprisingly fast changeover times, the Alpha-Doc MK4 will be a huge boost in your document binding productivity at a lower cost.

Product Details

High Productivity: With a top speed of 90 cycles / minute, it can punch up to 54,000 sheets per hour without the constant presence of the operator required.

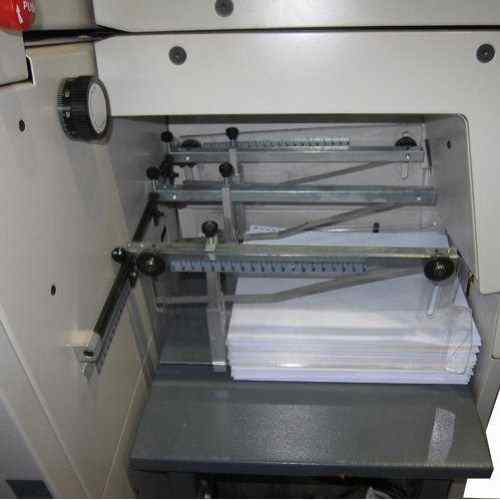

Large capacity: The high pile feeder and reception trays will accomidate up to 6 reams of paper.

Versatility: The Alpha-Doc MK4 can punch a wide variety of paper stock and covers including tab cut sheets and wall calendars with thumbcut, in virtually any size from 5.4" x 5.4" up to 14" x 13".

Easy-to-Use: Just load the tray and push a button, no special training is required.

Simple Formating: Just follow the instructions on the conversational touch screen and, with pre-set standard formats, size change-over can be done in less than 2 minutes.

Wide Choice of Punching Dies: Lhermite original hardened steel dies provide long life time. They can be changed in less than 5 minutes. Retractable pins allow to produce clean and perfect holes whatever the sheet formats are. The wide choice of punching dies covers all perforation styles now including thumbcut punching. Lhermite original dies can be resharpened.

Installation: Caster wheels make machine placement quick and easy.

Specifications

Manufacturer: James Burn

Suggested User: Industrial/Production Binding Style: Wire, Comb, Coil (Depends on Die)

Operation: Automated

Punch & Bind Capability: Punching Only

Setup Time: Less than 5 Minutes

Die Change Time: Less than 2 Minutes

Paper Size: 5.4" x 5.4" Minimum to 14" x 13" Maximum

Accepted Paper Stock: 16 lb. Bond to 110 lb. Index

Feed Table Capacity: 8 Reams

Selectable Speeds: 3 Speed Settings (70, 80, 90 Cycles per Minute)

Maximum Speed: Up to 54,000 sheets per hour (Depending on Die, Sheet Size, & Other Factors)

Sheet Pickup: Top of Pile Positive Sheet Pickup

Maximum Punching Thickness: 1 mm

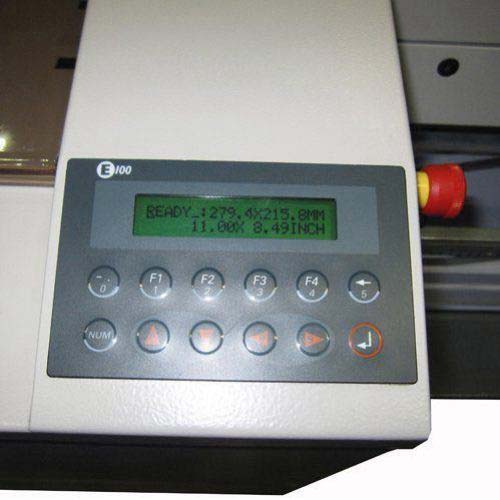

Control Panel: Digital LCD Touch Pad

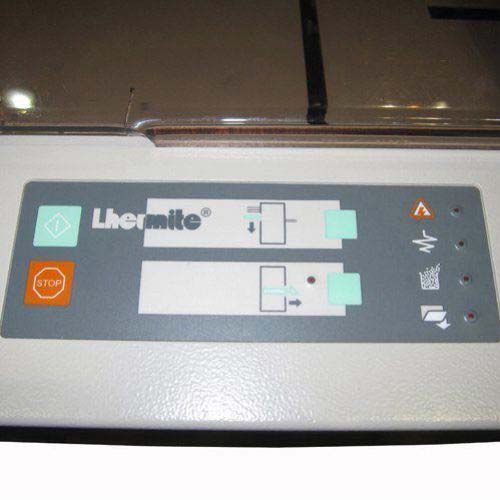

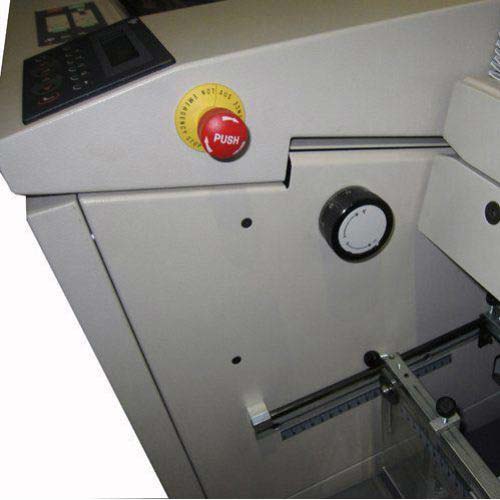

Control Panel Alerts: Paper Jam, Cover Open, Emergency Stop

Die Sharpening Available: Yes, Express Die Sharpening Service is Available Upon Request

Disengageable Die Pins: Yes (For Common Paper Sizes, Varies by Die)

Die / Tool Storage: Storage Compartment on Front (Hold Dies, Oil, Tools, Etc.)

Monthly Volume: Recommended for up to 3,000,000 Sheets per Month

Training Required: No Special Training Needed

Power Requirements: 110v Single Phase 60Hz

Castors: Yes; Lockable

Dimensions: 72" W x 28" D x 46" H

Weight: 650 lbs.

Shipping Weight: 1045 lbs.

Shipping Method: Freight Truck

Warranty: 90 Day Manufacturer's Warranty

Compatible Accessories: Alpha Doc MK4 Dies

Compatible Supplies: Spiral Coils
Twin Loop Wire
Plastic Combs
Ring Binders

Staff Review

James Burn Lhermite MKIII Automatic Binding Punch Review

Does your workplace need a binding punch that can prepare thousands of sheets of paper for multiple binding methods? If so, you must check out the James Burn Lhemitre MKIII, one of the most impressive automatic binding punches available. Here's an in-depth look at what this machine is capable of so you can determine if it's right for your workplace.

First of all, the MKIII can process up to 40,000 sheets of paper per hour. That's an incredible amount, making this device perfect for binderies and print shops. This machine is compatible with different weights of paper ranging from 16 lb. bond all the way up to 100 lb. index sheets. The sheets you run through can be as small as 5.5" x 5.5" or as large as 13" x 13". It's even capable of processing index tabs.
The MKIII has a top-feed feature that can take in between 5 and 20 sheets are a time. No matter how many sheets are fed, you can be assured that they'll all be perfectly punched because this machine has retractable pins. That means you won't end up with holes that run off the edge of the page.
If you want to reduce the amount of static electricity between your sheets, you can attach an optional air valve to this device. The air will separate the sheets so that they're easier to process. (Note: an air supply isn't included.)

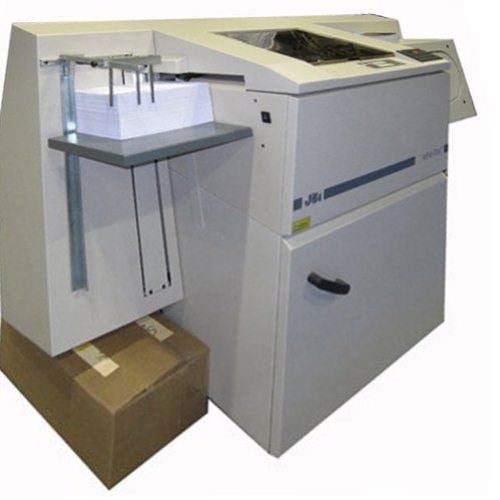

Your sheets will remain in order when the MKIII processes them because it's equipped with a turnover device. This will help you save time because you won't need to put your work back in order.
There are a number of interchangeable die sets for this device so you can partake in just about any kind of binding you want. There are sets available for twin-loop wire, VeloBind, plastic comb, color coil binding, etc. Dies can produce square and round holes as well.
Although you wouldn't know it to look at it, the MKIII is pretty easy to use. All you really need to do is put your paper in the feeder, press a button, and the machine will begin punching. There's even a keypad you can use to control things. Best of all, it only takes a few minutes to change the die sets, so this is a great device to use when you want to save some time.
The MKIII is incredibly large, so it's not meant for workplaces that are looking for a desktop punch. This machine's dimensions are 46" (height) x 72" (width) x 28" (depth) - that's equivalent to 3.8' x 6' x 2.3'. Plus, it weighs 650 pounds. Luckily, it's equipped with casters so moving it won't be impossible.
Finally, this product has a one-year warranty for parts and a 90-day one for labor.

The James Burn Lhermite MKIII is a remarkable binding punch thanks to its easy operation and phenomenal punching capacity. This is the ideal device for high-output environments, especially print shops, although it's probably a bit too large for use in most offices. The MKIII is one of the best high-capacity punches on the market, so if it sounds right for your workplace, take a look at it today.
